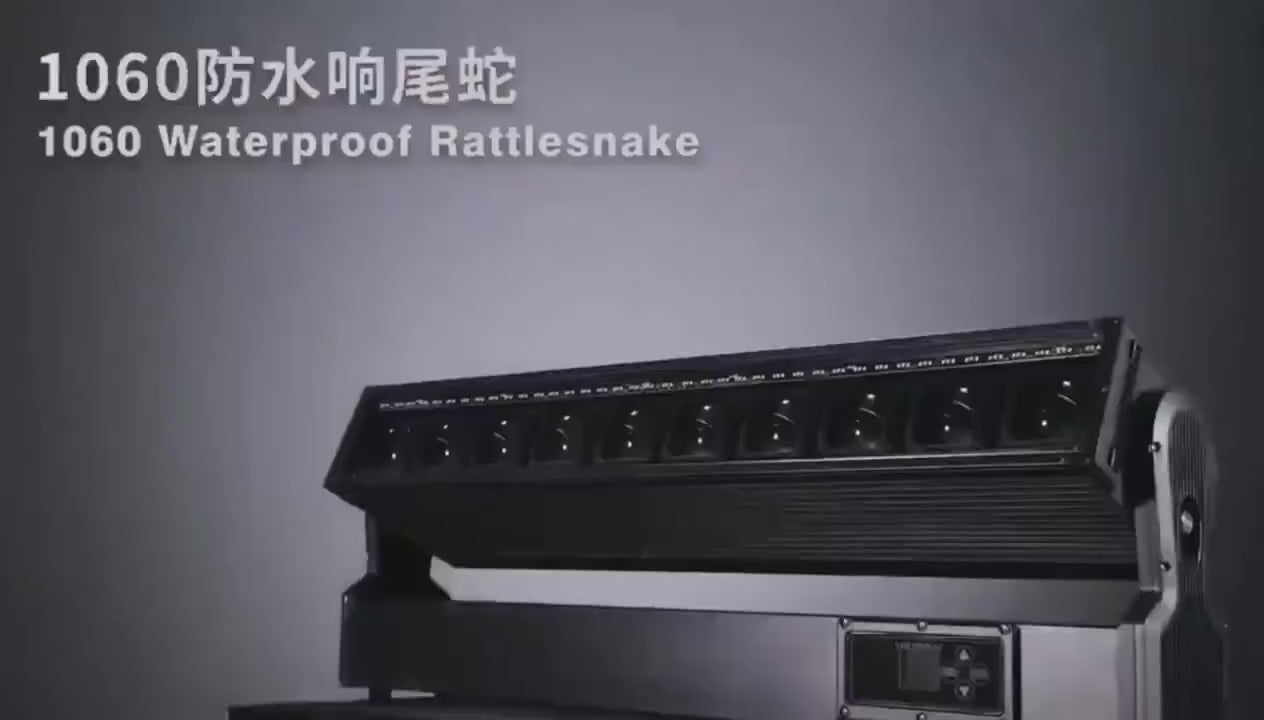

IP65 Motorized LED Tilt Batten - 10x60W RGBW Zoom Pixel Bar with Aura Background Matrix, Waterproof Stage Lighting for Concerts, Festivals & Touring

The IP65 Motorized LED Tilt Batten is a versatile outdoor pixel bar designed for large productions, concerts, festivals, touring stages, and professional event environments. Combining beam, spot, wash, flash, and auxiliary background effects, this fixture delivers strong visual impact with up to 22,400 lumens of output.

Built with a black cast aluminum alloy housing and IP65 / IP67 waterproof protection, this motorized tilt batten is designed for demanding outdoor use. It features 10 x 60W RGBW main beam LEDs, 140 x 0.3W 5050 RGBW + CW background LEDs, 32-bit linear dimming, 1–30Hz strobe, DMX512, RDM, self-propelled, master-slave, and voice control modes, giving lighting designers flexible control for beam effects, washes, pixel mapping, and dynamic stage visuals.

Key Features

• 3-in-1 Beam, Spot & Wash: Combines beam, spot, and wash functions in one motorized LED batten for flexible stage lighting designs.
• High Luminous Output: Delivers up to 22,400 lumens for high-brightness stage, concert, and festival applications.
• Dual Light Matrix: Uses 10 x 60W RGBW main beam LEDs plus 140 x 0.3W 5050 RGBW + CW background / flash LEDs for layered effects.
• Background Flash Effects: Auxiliary LED matrix supports eye-candy, flash, and background lighting effects behind the main beam output.
• 32-Bit Linear Dimming: Smooth 0–100% dimming supports clean fades, controlled intensity changes, and professional transitions.
• High-Speed Strobe: Adjustable 1–30Hz strobe frequency creates strong flashes and high-energy stage moments.

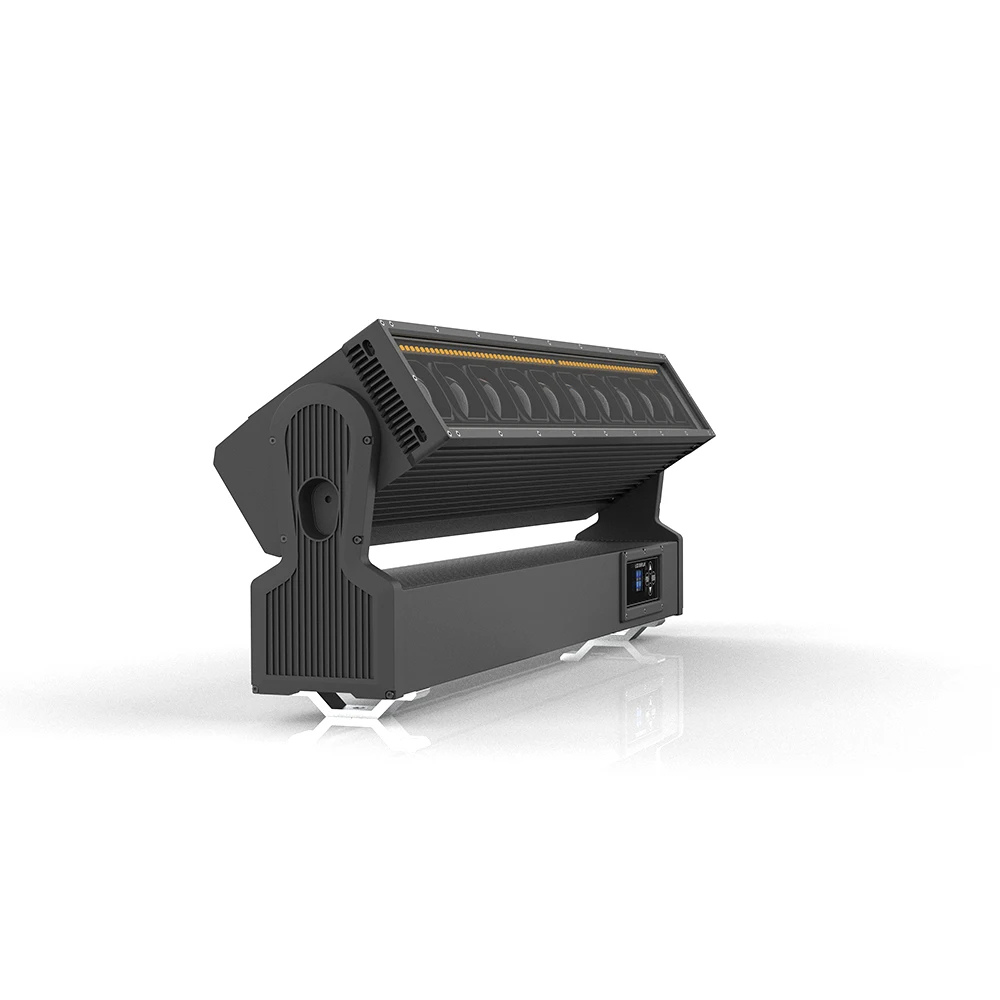

• Weatherproof Cast Aluminum Body: IP65 / IP67 waterproof black cast aluminum alloy housing supports outdoor use when properly installed.
• Advanced Control Modes: Supports DMX512, RDM, self-propelled, master-slave, and voice control for flexible programming and standalone operation.

Instructions

1. Mounting: Secure the fixture to a suitable stage structure, truss, or mounting system using proper clamps, brackets, and safety cables. Make sure all rigging hardware is rated for the fixture and installation environment.
2. Power & Connections: Connect the fixture to a compatible AC100–240V, 50/60Hz power source. Use the power input/output and DMX512 input/output ports only within safe linking limits.
3. DMX Configuration: Use the LCD display to select the required channel mode, including CH26, CH36, CH60, CH66, or CH186. Use higher channel modes for more detailed pixel mapping and auxiliary matrix control.
4. Operation: Use DMX control for programmed beam, wash, flash, dimming, strobe, and background matrix effects. For simpler setups, use self-propelled, master-slave, or voice control modes.
5. Outdoor Use: Before outdoor operation, confirm that all power, DMX, and unused connectors are properly sealed and protected to help maintain the waterproof rating.
6. Safety & Maintenance: The fixture includes temperature protection and leakage protection. Keep lenses, LED areas, cooling fans, heat sinks, housing, and connector areas clean and free from dust, water buildup, or debris.
