12x40W Hybrid Motorized Zoom Bar - RGBW Pixel Batten with RGB & Warm White Background Strobe FX for Touring & Stage

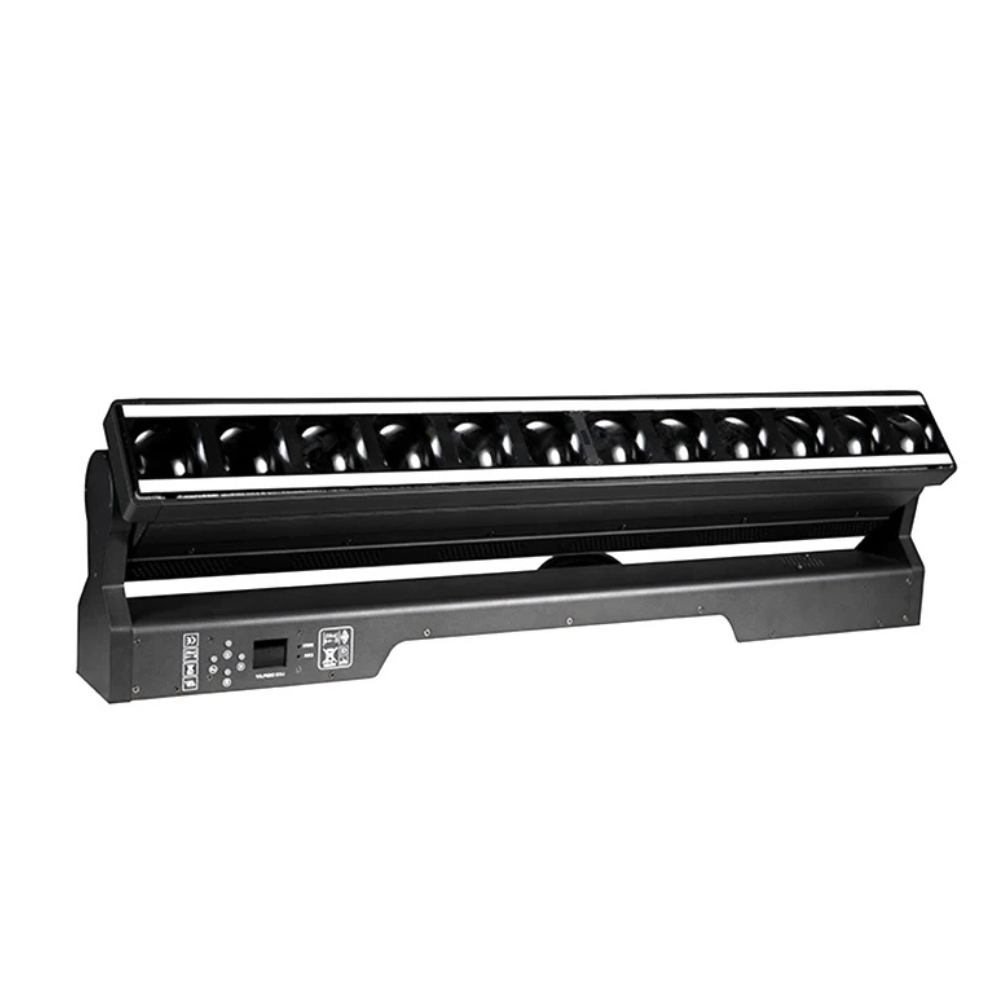

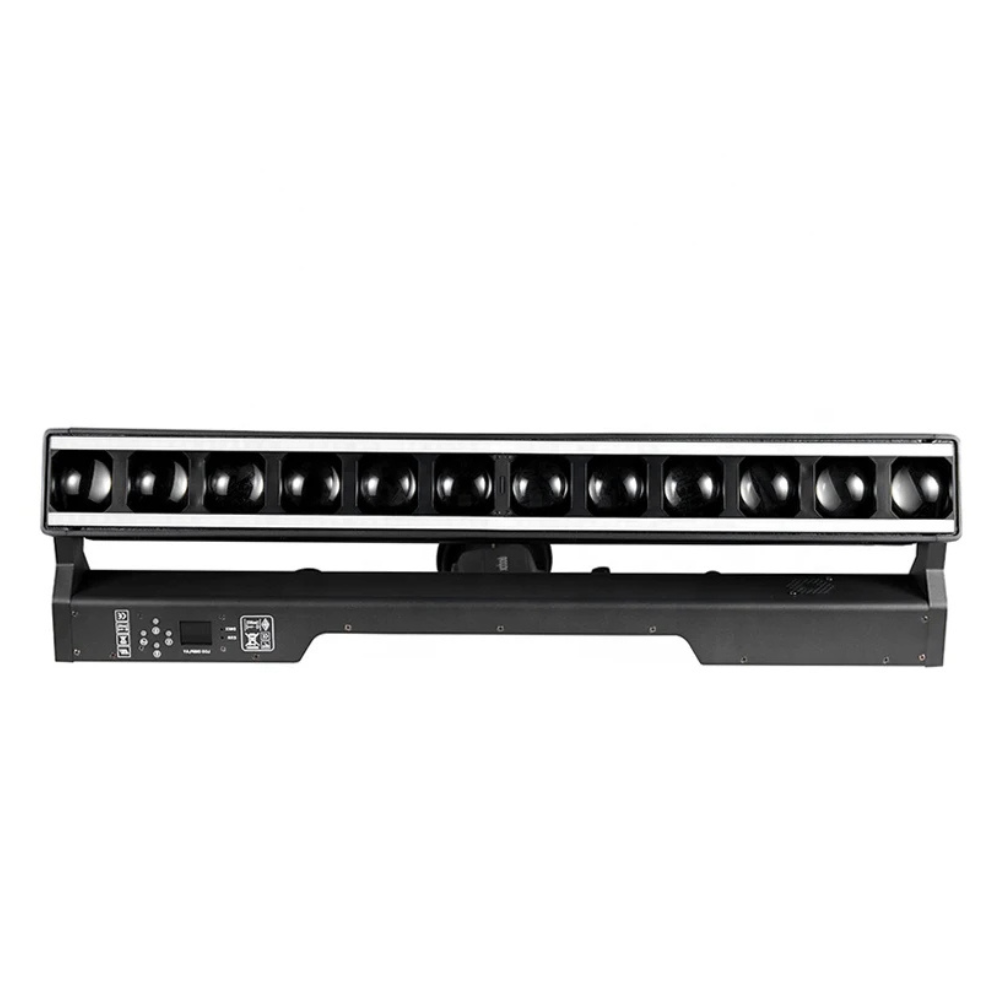

The 12x40W Hybrid Motorized Zoom Bar is a dynamic, multi-layered pixel batten engineered for professional touring, concerts, and stage productions. This highly versatile fixture features 12 powerful 40W RGBW 4-in-1 LEDs for intense main beam and wash effects, complemented by an expansive background matrix of 144 RGB and 144 Warm White auxiliary LEDs. With a motorized zoom ranging from a tight 4.5° to a wide 32° and a fast, electrically calibrated 200° Y-axis tilt, this hybrid batten allows lighting designers to craft mid-air sweeps, high-impact strobes, and textured wash effects from a single fixture.

Key Features

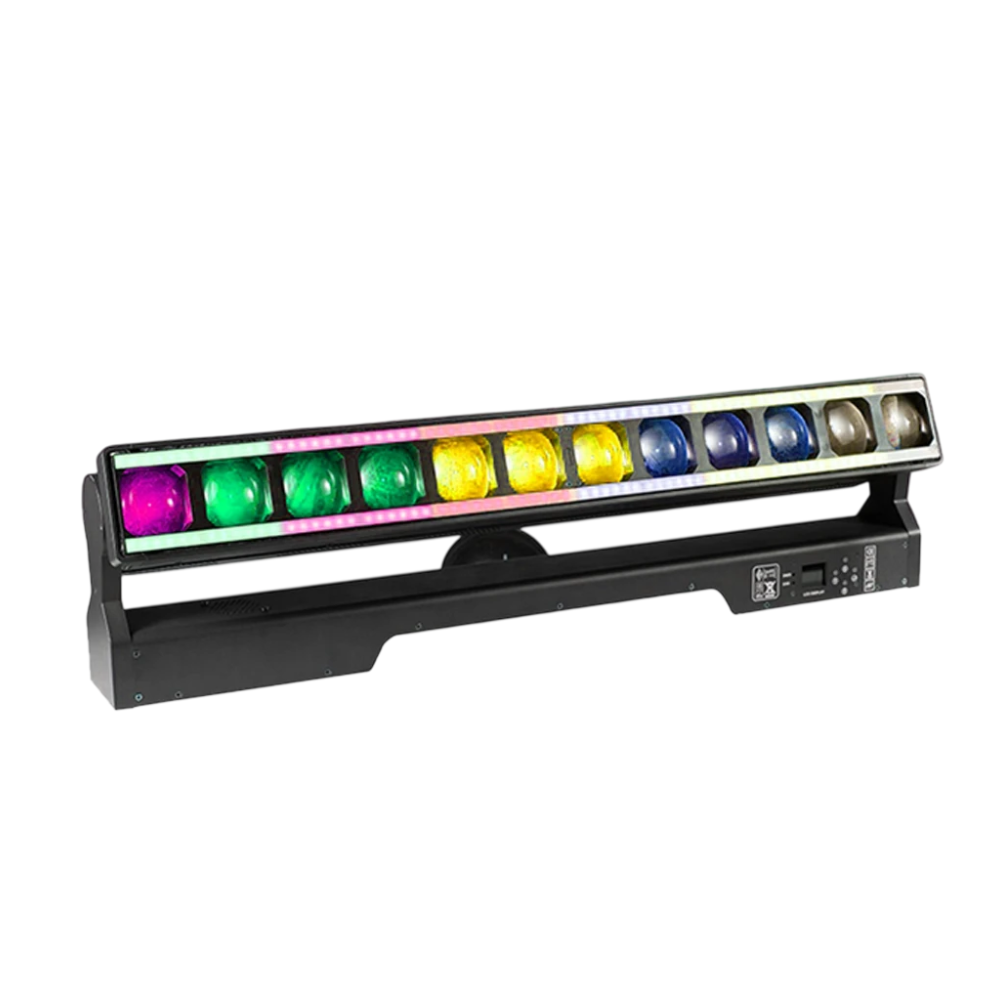

• Hybrid Light Engine: Combines 12 x 40W RGBW main LEDs with a background matrix of 144 RGB and 144 Warm White 0.3W auxiliary LEDs for layered beam, wash, and background effects.

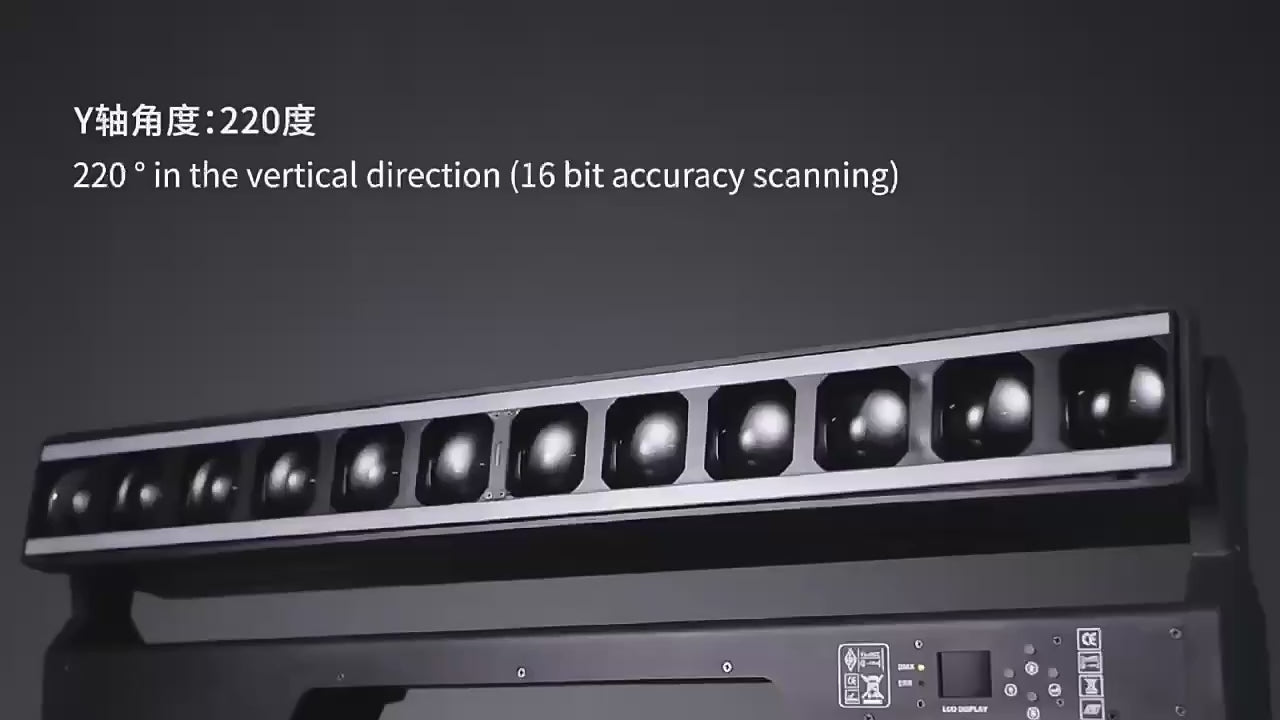

• Motorized Zoom & Tilt: Features a zoom angle adjustable from 4.5° to 32°, plus a 200° electrically calibrated Y-axis tilt for dynamic sweeping beam movement.
• Advanced Pixel Control: Multiple DMX channel profiles up to 144CH allow point-by-point control of the main lenses and background LED strips.
• Smooth Dimming: 32-bit 0–100% linear dimming helps create smooth fades, transitions, and color blending.
• High Color Fidelity: Features a CRI of 90 Ra and a base 3500K color temperature for vivid stage illumination.
• Flexible Control Options: Supports DMX512, voice control, auto mode, master-slave mode, and RDM functionality for remote addressing and fixture management.

Instructions

1. Installation & Rigging: Secure the fixture to a suitable truss system or stable mounting structure using proper mounting brackets. Make sure the rigging structure can safely support the gross weight, up to 24 kg. Allow enough clearance for the 200° tilt movement.
2. Power Setup: Connect the power cable to a reliable AC 100–240V, 50/60Hz power supply. The fixture has a total power consumption of 500W.
3. Data Connection: Connect your lighting console through the DMX input/output ports. Use the onboard RDM protocol to remotely assign DMX addresses when supported by your control system.
4. Channel Configuration: Select the proper DMX mode, including 24CH, 36CH, 60CH, 72CH, or 144CH, through the display panel based on your programming needs.

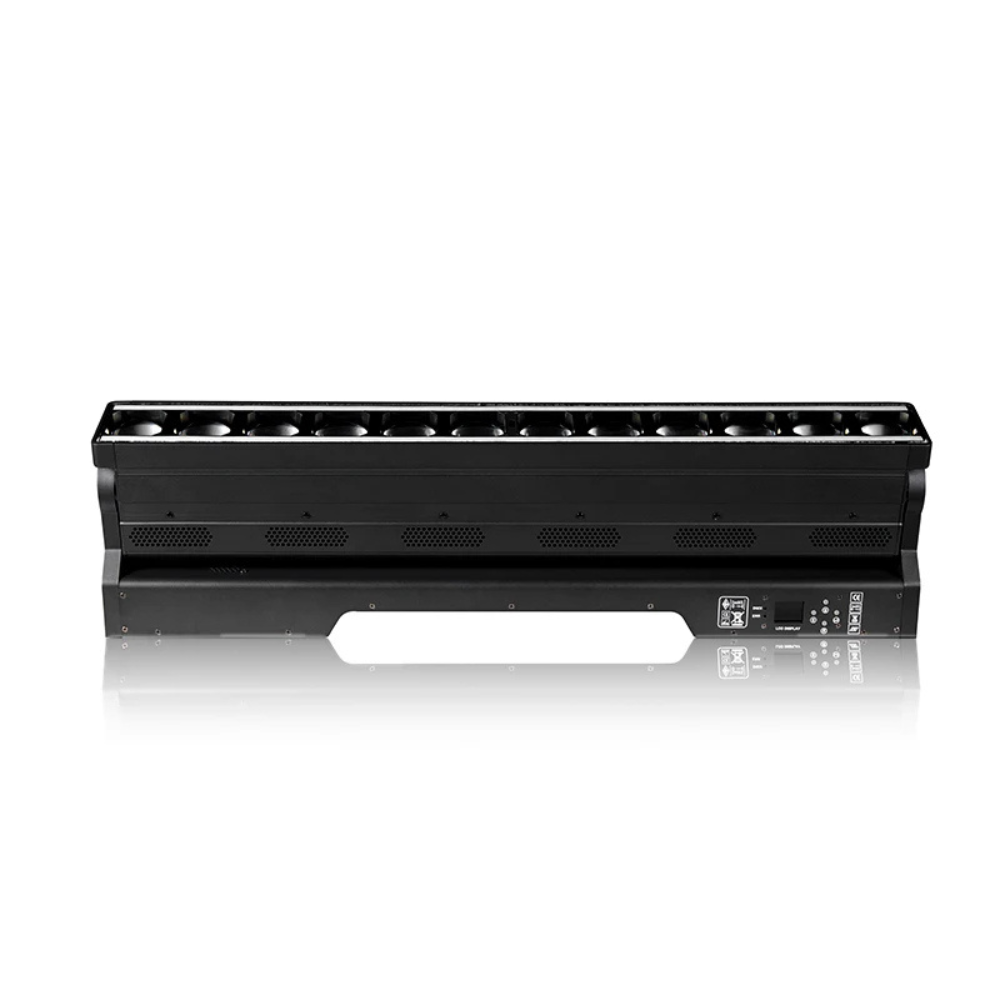

5. Maintenance: This fixture is rated IP20 and is designed for indoor use. Keep it within the recommended working temperature range of -25°C to 40°C, and make sure the cooling vents remain clear during operation.

Technical Specifications
