37x40W LED Pixel Wash Moving Head - Pro RGBW 4-in-1 Zoom Fixture with Rotating Kaleidoscope Lens & CRI 95 for TV, Theater & Concert Stages

The 37x40W LED Pixel Wash Moving Head (Focusing Bee Eye) is a premium professional lighting fixture designed for TV studios, theaters, large concert stages, clubs, and live production environments. Powered by 37 high-output 40W RGBW 4-in-1 LED beads, it delivers strong beam and wash performance with vivid color mixing and broadcast-friendly color rendering.

Beyond standard wash lighting, this fixture features an infinitely rotating front mirror disc that creates vortex and kaleidoscope-style optical effects. With tunable white from 2800K to 8500K, CTO correction, CRI 95, DMX512, wireless control, sound-activated mode, auto mode, master-slave operation, and IP33 protection, this moving head gives lighting designers powerful tools for dynamic stage looks and high-impact visual productions.

Key Features

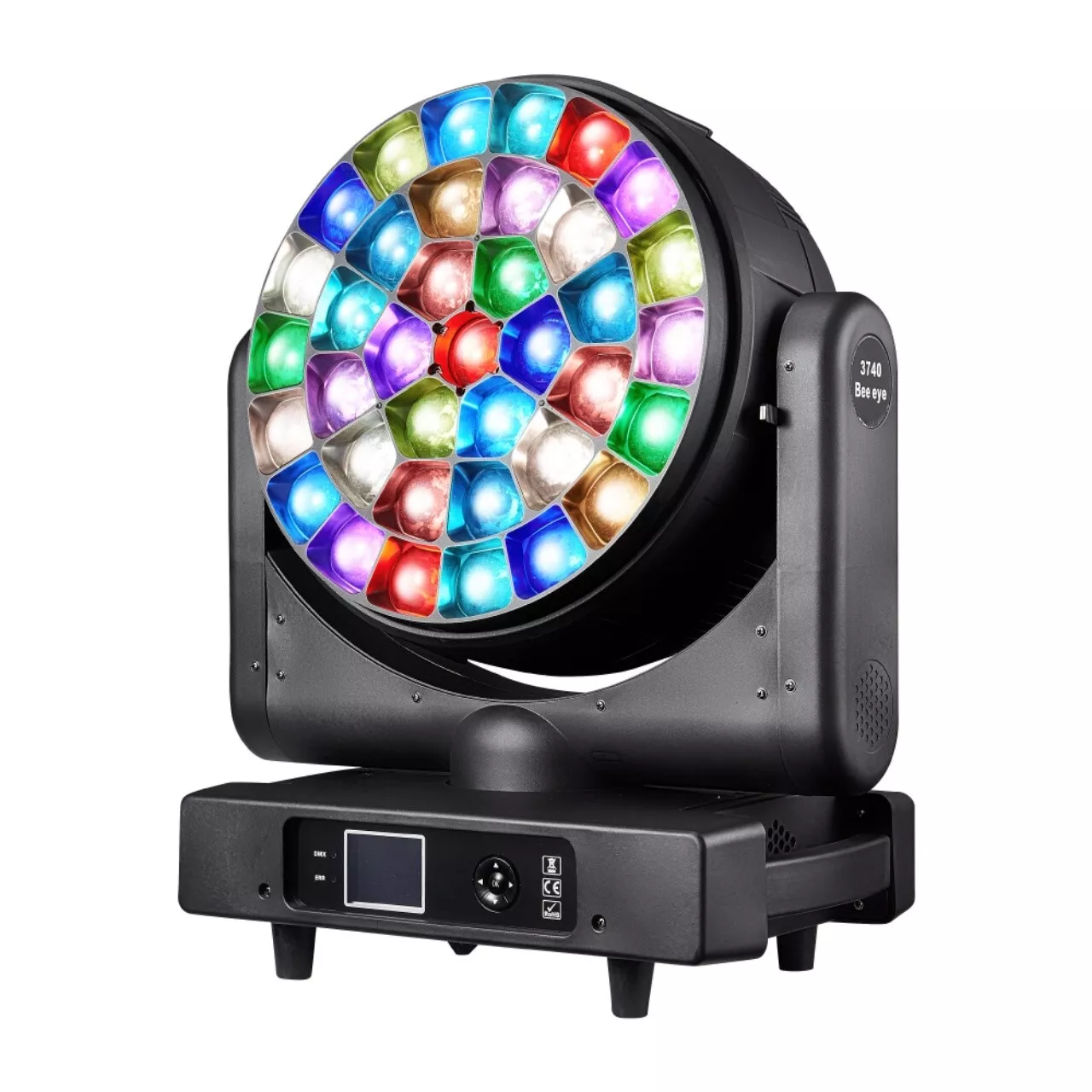

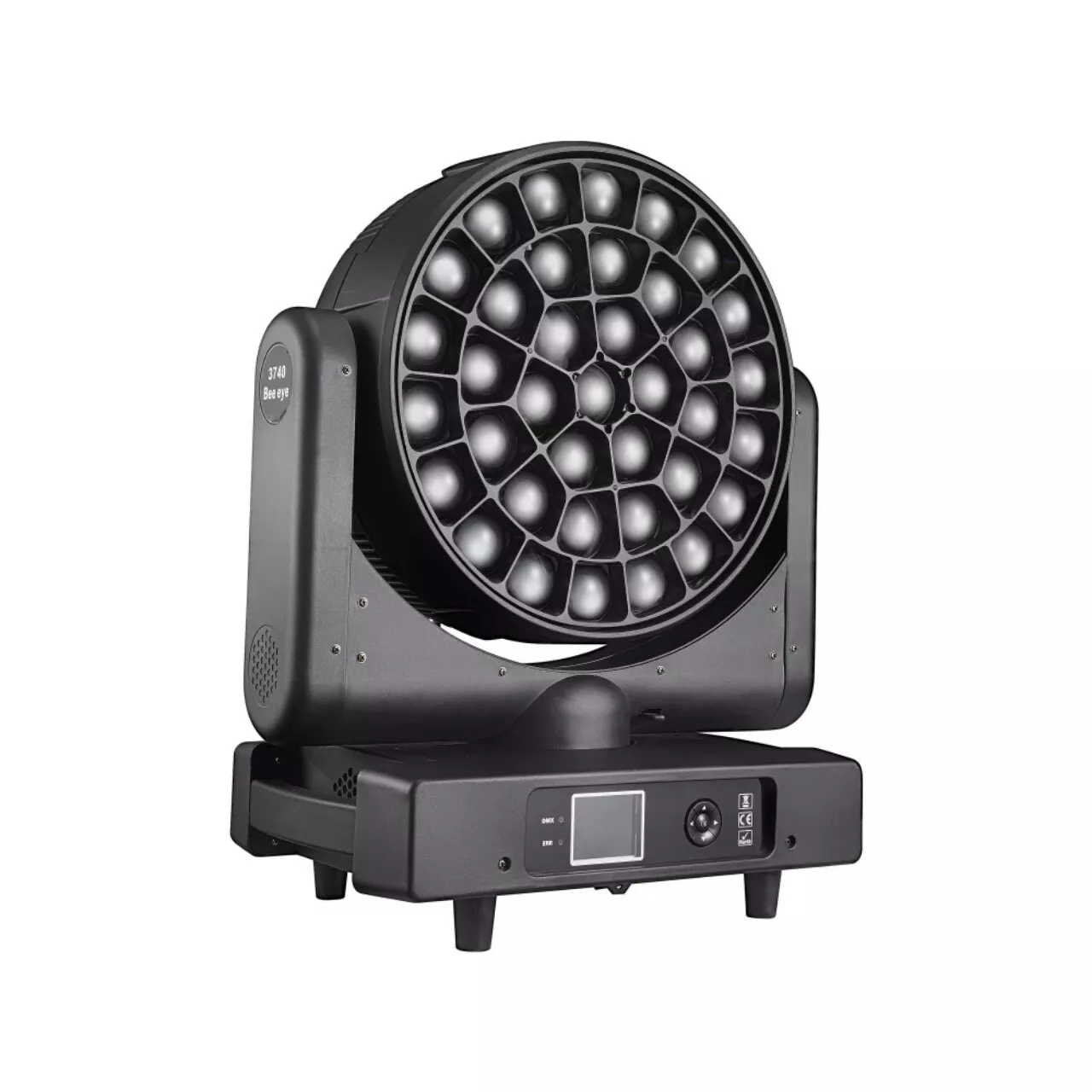

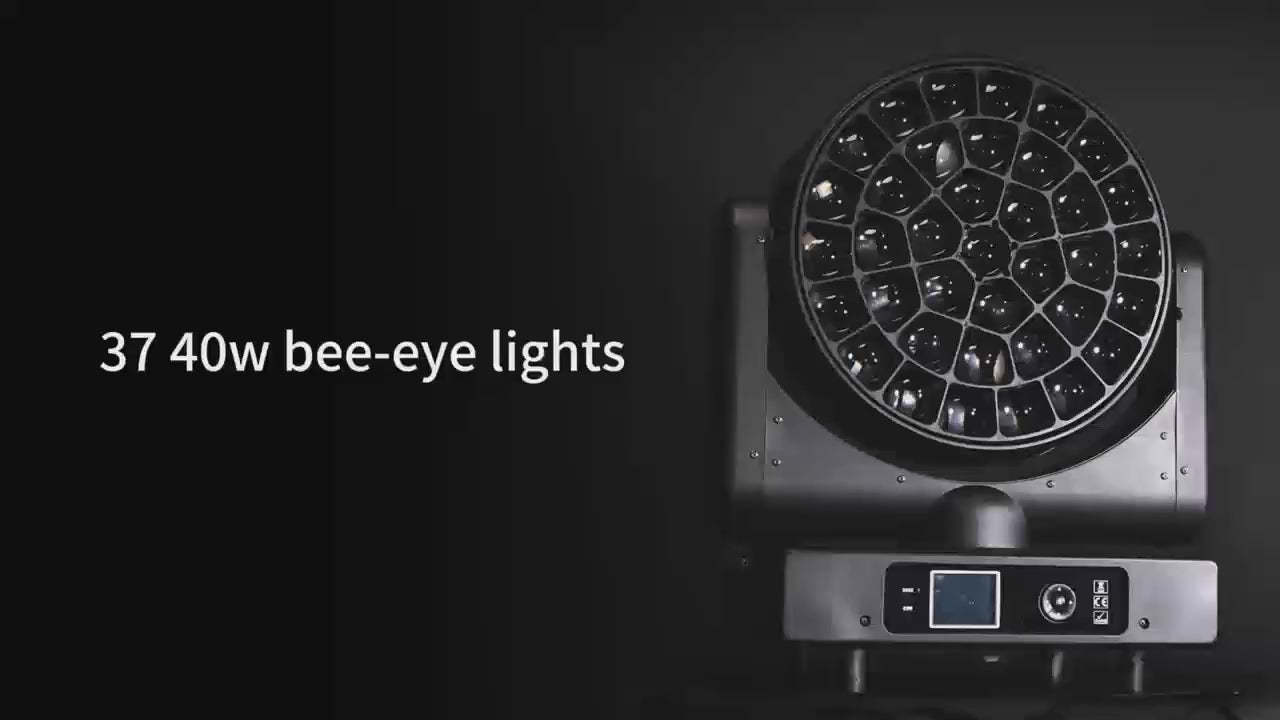

• High-Power RGBW Matrix: Features 37 x 40W RGBW 4-in-1 LED beads for intense wash, beam, and color-mixing effects.
• Rotating Mirror Disc Effects: Infinitely rotating front mirror disc creates kaleidoscope, vortex, and layered beam effects.
• Broadcast-Friendly Color Rendering: CRI 95 helps provide vivid and more natural color reproduction for stage and camera environments.
• Tunable White & CTO: Adjustable 2800K–8500K color temperature range with CTO correction supports warm white, daylight, and cooler stage looks.
• Multiple Control Methods: Supports DMX512, sound-activated mode, auto mode, master-slave, and wireless control.
• Linear Dimming Support: Built-in dimmer support helps create smooth intensity changes and controlled stage transitions.
• Durable Housing: Powder-coated ABS body with IP33 protection rating for suitable indoor or covered event environments.
• Reliable Stage Operation: Designed with a wide working temperature range and long LED lifespan for demanding production use.

Instructions

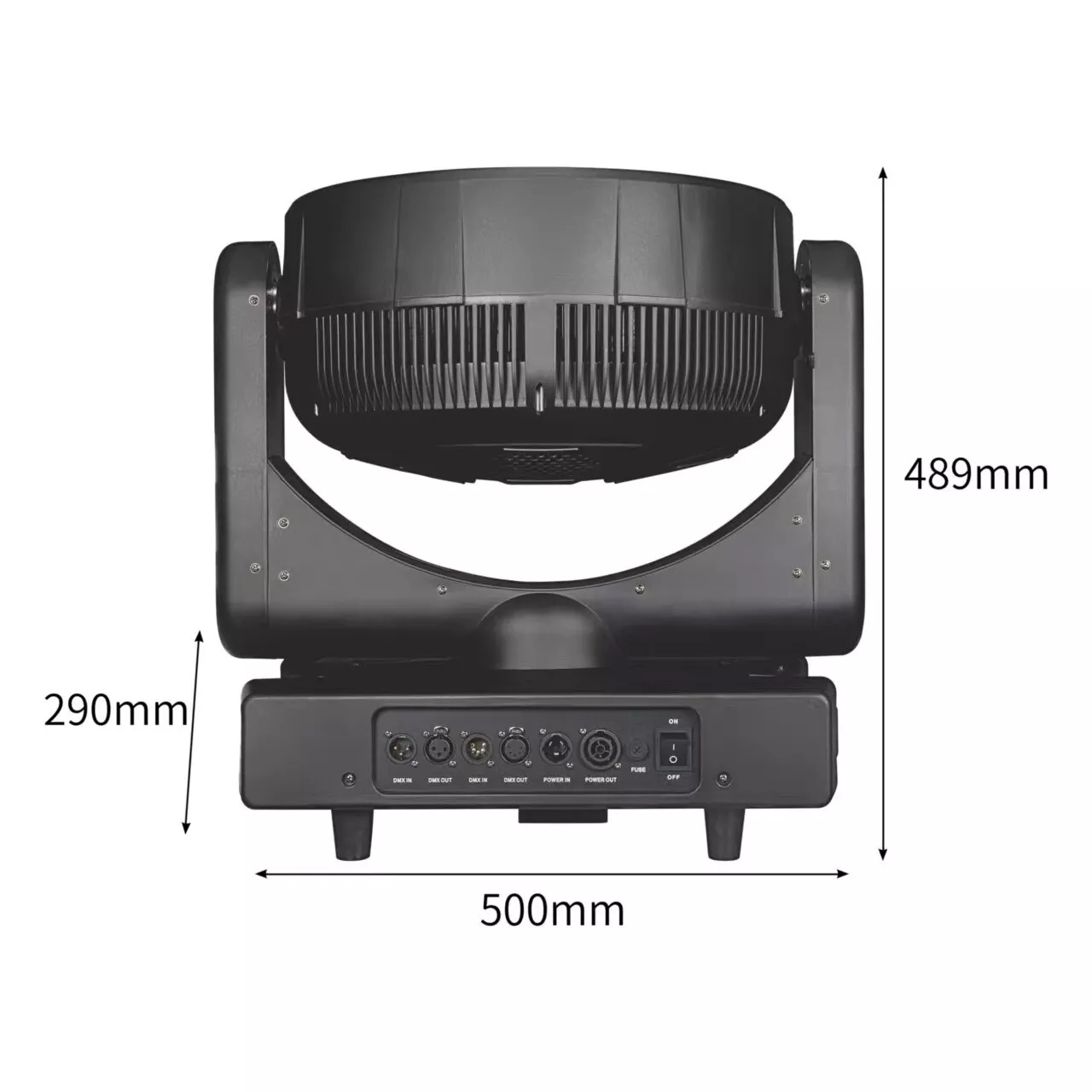

1. Mounting: Use appropriate hanging brackets, rated clamps, and safety cables to secure the fixture to a suitable truss or mounting structure. Make sure the rigging system can safely support the 17.15 kg net weight and allows enough clearance for moving head operation.
2. Power & Connectivity: Connect the fixture to a compatible AC 220V ±10% power supply. Link DMX cables for wired control, or use wireless control if your setup supports it.
3. Configuration: Use the display panel to set the DMX address, select the desired control mode, and adjust fixture settings. Auto and sound-activated programs can also be selected directly from the menu.
4. Operation: Use your lighting console to control color mixing, CTO correction, dimming, mirror disc rotation, and movement effects. The rotating mirror disc can be used to create vortex and kaleidoscope-style effects across stage areas or audience zones.
5. Operating Environment: The fixture has an IP33 rating. It may handle limited dust and light splash exposure, but it should be protected from heavy rain, standing water, and unsuitable outdoor conditions.
6. Maintenance: Regularly clean the mirror disc, lenses, vents, housing, and moving areas with suitable non-abrasive materials. Keep dust and haze residue away from optical surfaces to maintain brightness and visual clarity.

Technical Specifications
