6x60W Motorized Wave Bar Moving Head - RGBW Pixel Zoom Batten with Independent Head Tilt, Linear CTO & LED Strobe Strips for Pro Stage

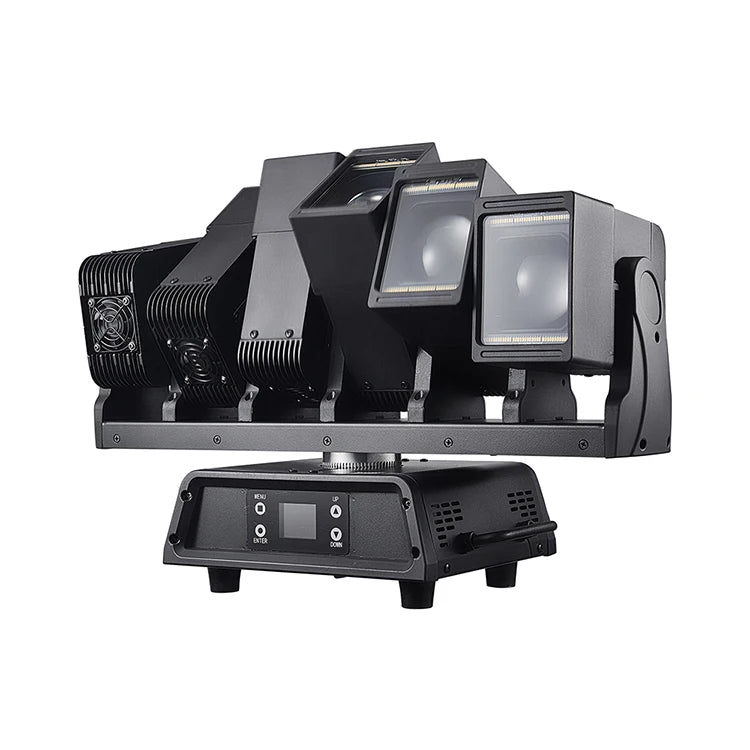

The 6x60W Motorized Wave Bar Moving Head (Spirit Snake) is a professional pixel batten designed for stage, touring, TV broadcast, club, and live production applications. With a 450W total output, it features six independent moving heads, each powered by a 60W RGBW 4-in-1 LED.

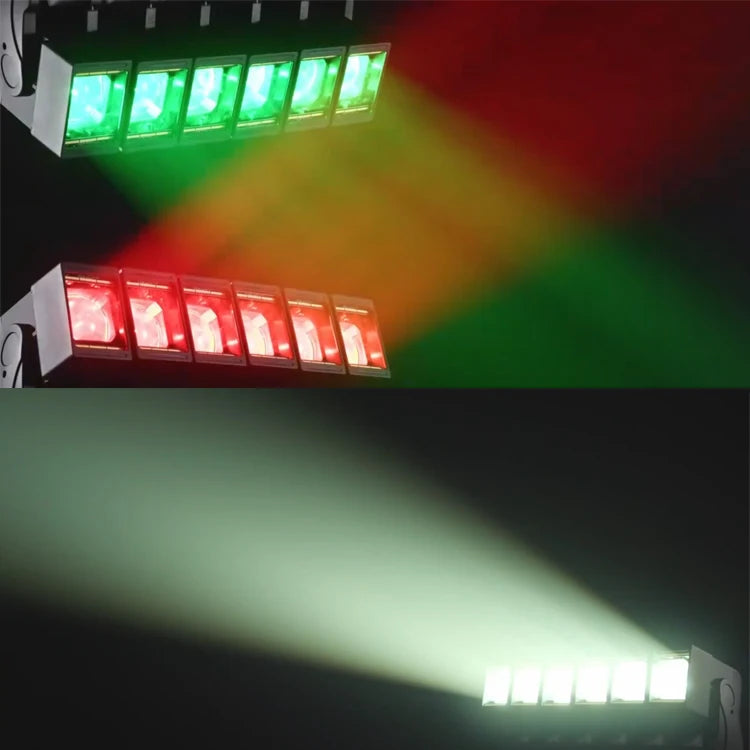

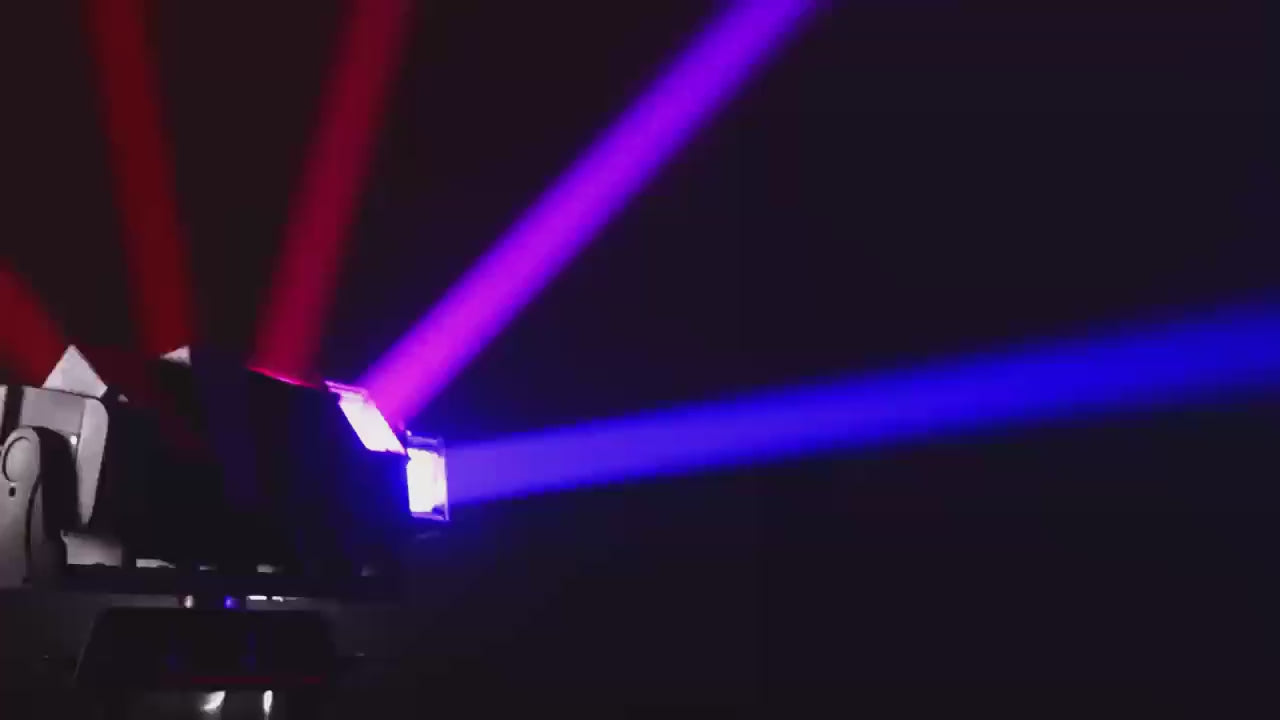

This dynamic motorized wave bar supports continuous X-axis rotation, individual Y-axis swing movement, motorized zoom, linear CTO adjustment, and auxiliary daylight, warm white, and RGB LED strip effects. It gives lighting designers flexible options for wave effects, beam sweeps, pixel-mapped movement, strobe layers, and high-impact stage visuals.

Key Features

• Independent Head Movement: Features six individually moving heads with continuous X-axis rotation and independent Y-axis swing for wave, tilt, and sweeping effects.
• High-Power RGBW Output: Equipped with 6 x 60W RGBW 4-in-1 LEDs for strong beam, wash, and color-mixing performance.
• Motorized Zoom Optics: Delivers beam angles from 4.3° to 11° and spot angles from 9° to 18° for flexible beam shaping.

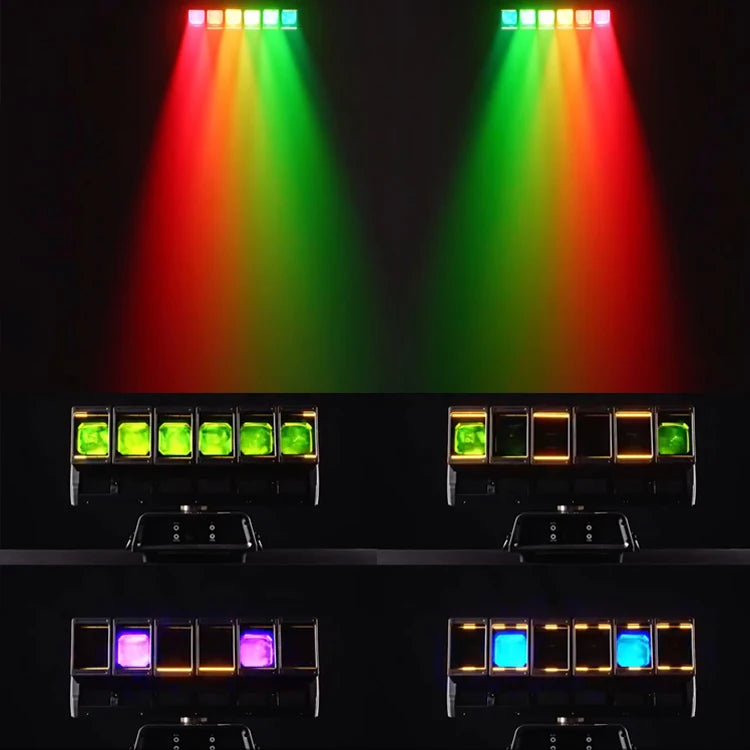

• Auxiliary LED Strip Effects: Daylight, warm white, and RGB auxiliary LED strips add strobe layers, background accents, and eye-candy effects.
• Advanced Color Mixing & CTO: Supports RGBW color mixing with linear CTO color temperature adjustment for more flexible stage looks.
• Smooth Dimming: 0–100% linear dimming helps create smooth fades, transitions, and controlled intensity changes.
• Multiple Control Modes: Supports DMX512, auto mode, sound control, master-slave operation, and RDM function.
• Flexible DMX Profiles: Offers 22CH, 28CH, 49CH, 97CH, and 123CH modes for different levels of control and pixel mapping.

Instructions

1. Installation & Rigging: Secure the fixture to a suitable truss or mounting structure using proper clamps, brackets, and safety cables. Make sure the structure can safely support the 16.1 kg fixture weight and allows enough clearance for continuous X-axis rotation and individual Y-axis movement.
2. Power Connection: Connect the fixture to a reliable AC 100–240V, 50/60Hz power supply. The unit consumes up to 450W of power. Use power input/output connections only within safe circuit and fixture load limits.
3. Data Setup: Connect your lighting console through the DMX input/output ports. Use the onboard display to assign the DMX starting address, or use RDM when supported by your control system.
4. Mode Selection: Choose the proper DMX channel mode, including 22CH, 28CH, 49CH, 97CH, or 123CH. Use higher channel modes for more detailed control of the main beams and auxiliary LED strips.
5. Operation: Use DMX control for programmed shows, auto mode for built-in effects, sound control for music-responsive operation, or master-slave mode for synchronized multi-unit setups.
6. Maintenance: This fixture is IP20 rated and designed for indoor or weather-protected use. Operate within the recommended temperature range of 0°C to 45°C, and keep lenses, vents, and cooling areas clean and free of dust buildup.

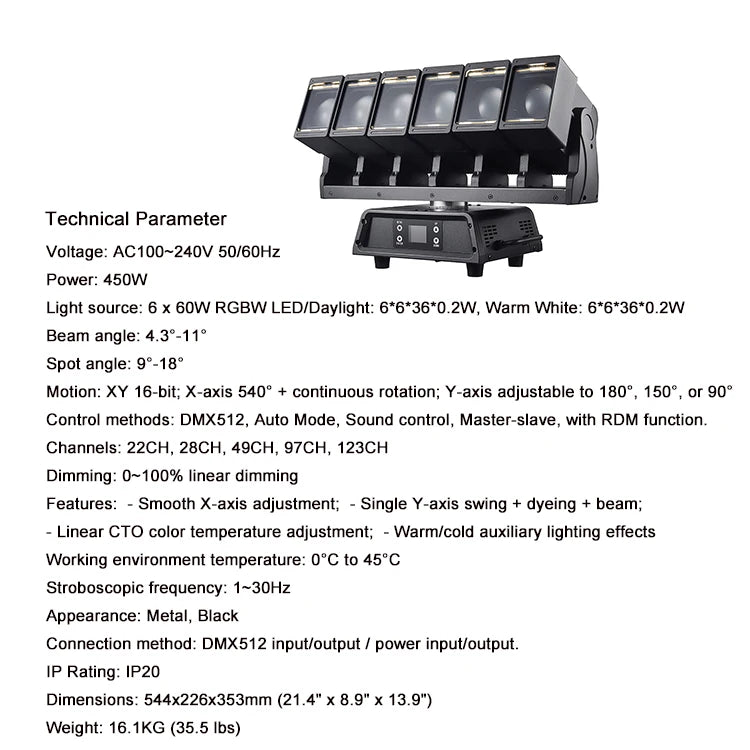

Technical Specifications
