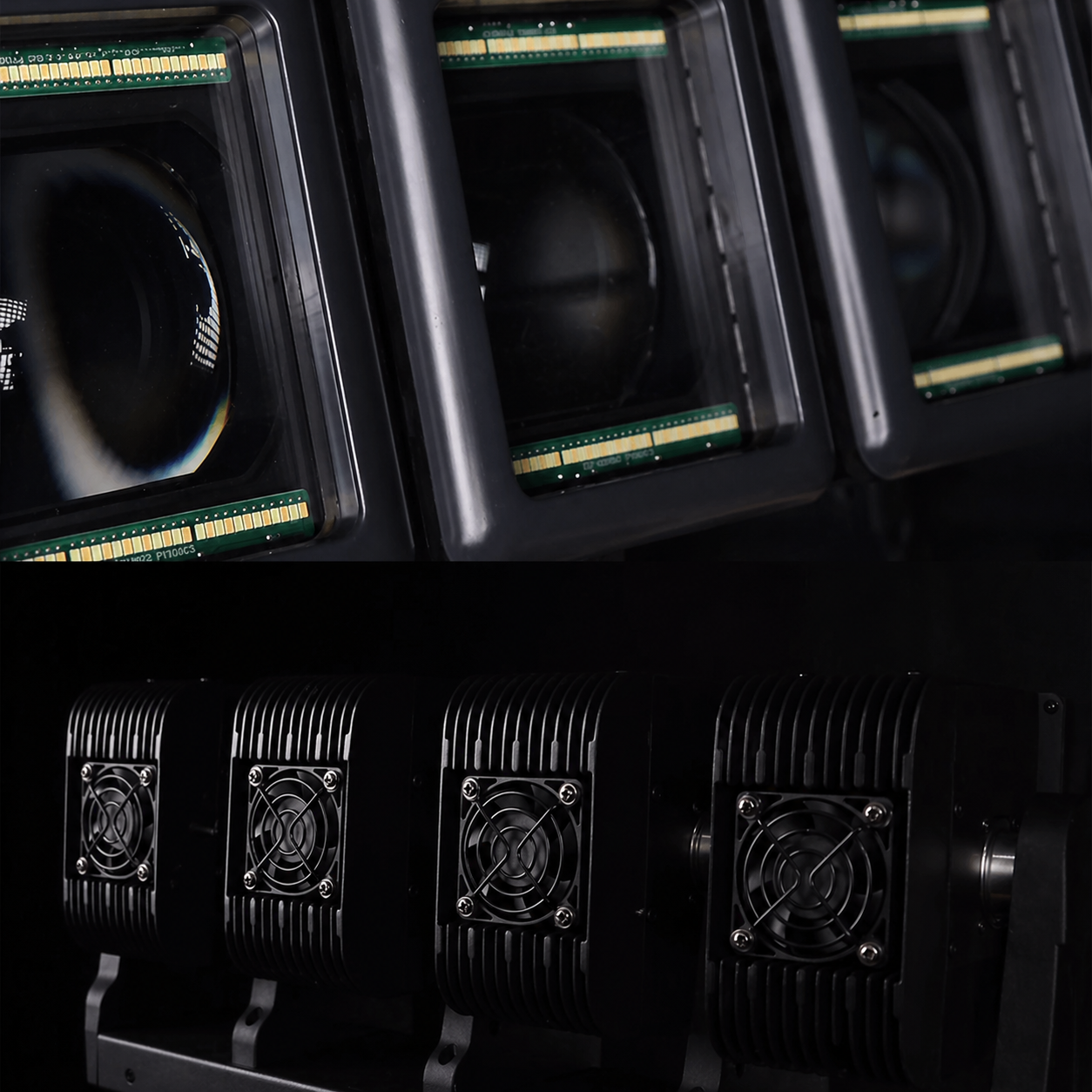

4x60W RGBW Motorized Pixel Bar Moving Head - 4-Head Beam/Wash Stage Light with Square LED Halo Rings & Zoom for Pro Touring & Club

The 4x60W RGBW Motorized Pixel Bar Moving Head is a high-impact stage lighting fixture designed for touring, nightclubs, live events, and dynamic stage setups. This fixture features four independent moving heads on one batten, with each head powered by a 60W RGBW 4-in-1 LED.

Each head is surrounded by a square RGB LED halo ring and warm white auxiliary lighting, creating layered beam, wash, pixel, and eye-candy effects. With stepless pan rotation, selectable tilt movement, motorized zoom, RDM support, and multiple DMX channel modes up to 137CH, this motorized pixel bar gives lighting designers flexible control for chase sequences, mid-air sweeps, and advanced pixel-mapping looks.

Key Features

• Quad-Head Main Beams: Features 4 x 60W RGBW 4-in-1 LEDs for concentrated beams, vivid color mixing, and stage wash effects.

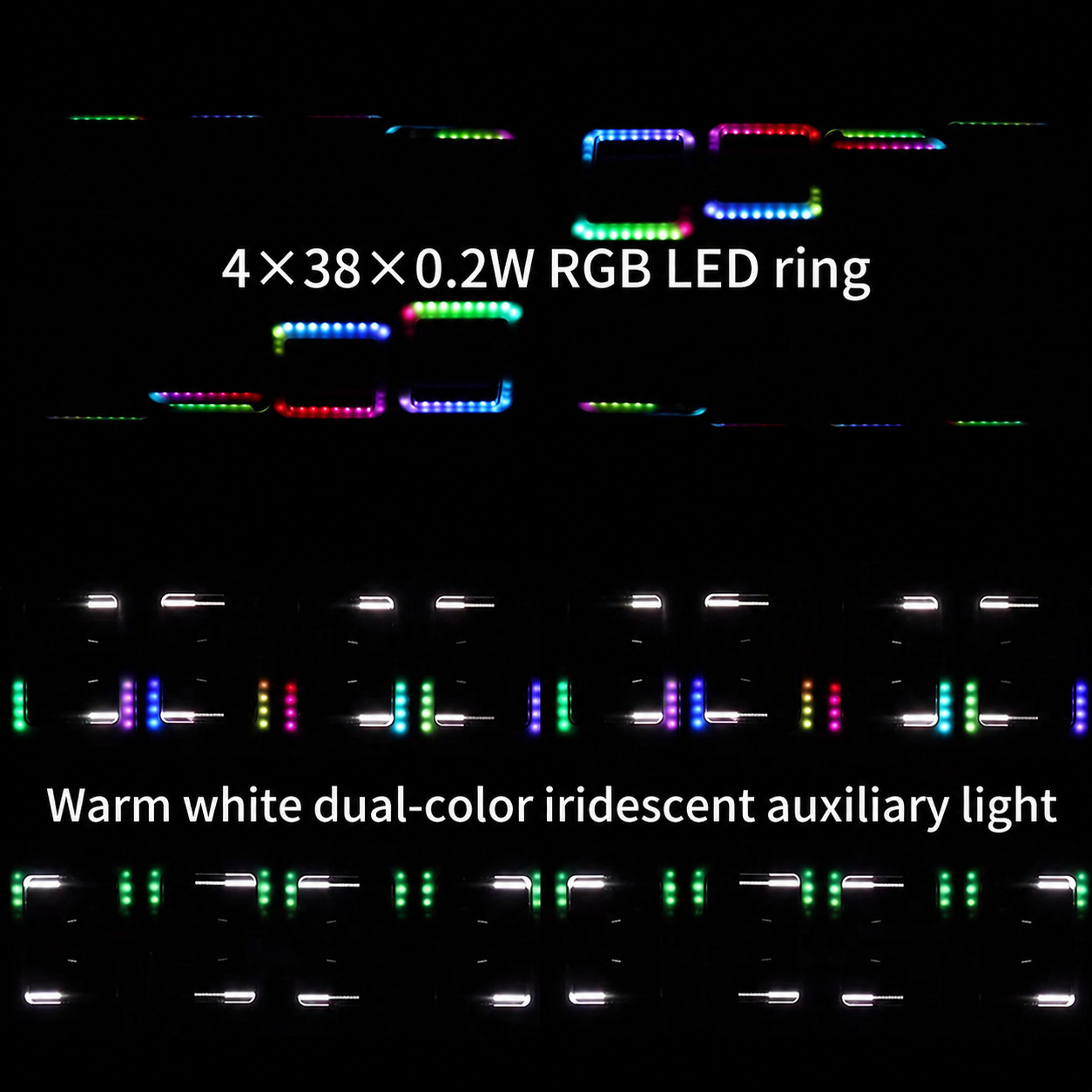

• Square LED Halo Rings: Each head includes a 38 x 0.2W RGB LED ring plus warm white auxiliary lighting for layered visual effects.
• Dynamic Stepless Movement: Supports 540° pan with stepless continuous rotation and 16-bit positioning for smooth motion effects.
• Selectable Tilt Range: Tilt movement can be set to 90°, 150°, or 180° depending on the show design and movement requirements.
• Precision Motorized Zoom: Adjustable beam angle from 4.3° to 9.6° and spot angle from 7.8° to 16° for beam-to-wash transitions.
• Advanced Dimming & Control: Supports 0–100% linear dimming, DMX512, RDM, auto mode, voice-controlled operation, and master-slave mode.
• Extensive Pixel Mapping: Multiple DMX profiles, including up to 137CH, allow deeper control of the main LEDs and square RGB halo rings.
• Professional Build: Aluminum and plastic construction with IP20 indoor rating, hanging mount installation, and 50,000-hour LED lifespan.

Instructions

1. Installation: Use suitable hanging mount hardware, clamps, and safety cables to rig the fixture to a secure truss or mounting structure. Make sure the structure can safely support the 12.05 kg product weight and allows enough clearance for continuous pan rotation and tilt movement.
2. Power Setup: Connect the fixture to a reliable AC 100–240V, 50/60Hz power source. Always confirm the power circuit is suitable for the connected lighting load.
3. DMX Configuration: Connect your DMX data cables through the DMX input/output ports. Use the LCD display panel to set the DMX starting address, or use an RDM-compatible controller for remote addressing when supported.
4. Channel Selection: Select the appropriate DMX mode based on your programming needs. Use higher channel modes such as 98CH or 137CH for advanced point-by-point control of the main beams and square halo rings.
5. Operation: Use DMX control for programmed shows, auto mode for built-in effects, voice-controlled mode for sound-responsive operation, or master-slave mode for synchronized multi-fixture setups.
6. Maintenance: This fixture is rated IP20 and is designed for indoor use. Keep lenses, LED rings, vents, and the housing clean and free of dust to maintain brightness, cooling performance, and long-term operation.

Technical Specifications
