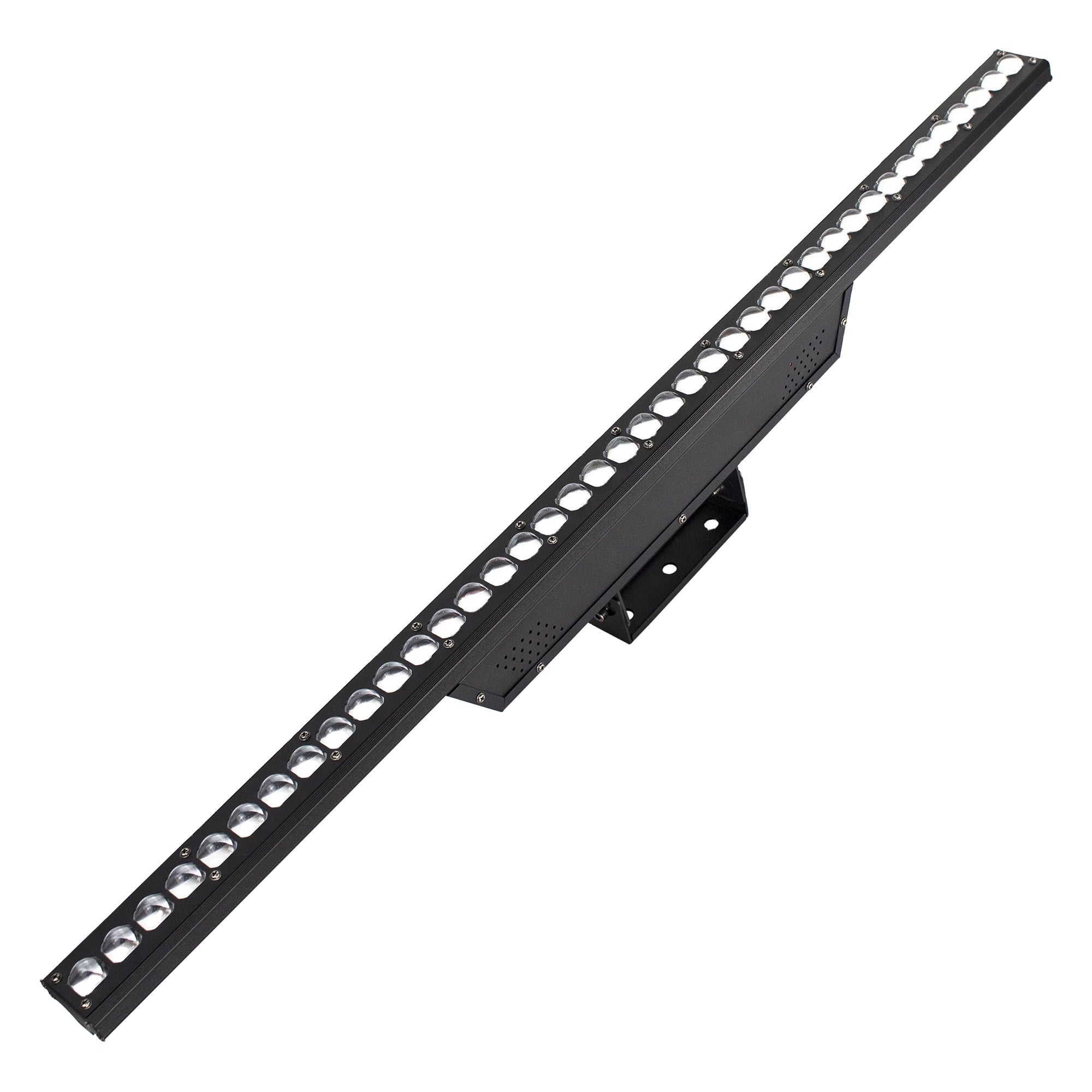

40x3W RGB LED Pixel Bar - Linear Wash Batten & Dynamic Chasing Effect Light Curtain for DJ, Club and Stage Matrix Setup

The 40x3W RGB LED Pixel Bar is an ultra-slim, high-performance linear wash batten and light curtain designed for stage designs, DJ booths, clubs, and professional event productions. Built with a lightweight aluminum alloy housing, this fixture uses 40 individual 3W RGB 3-in-1 LEDs to create sharp beam effects, color chases, and dynamic pixel-mapping visuals.

With a tight 3.6° beam angle, 16-bit and 32-bit smooth dimming, RDM support, and up to 125 DMX channels, this pixel bar is suitable for light curtains, LED matrix backgrounds, edge-to-edge stage layouts, and high-energy visual effects across live shows and event environments.

Key Features

• High-Density Light Source: Powered by 40 x 3W 3535 RGB 3-in-1 LEDs for vibrant full-color output across the entire bar.

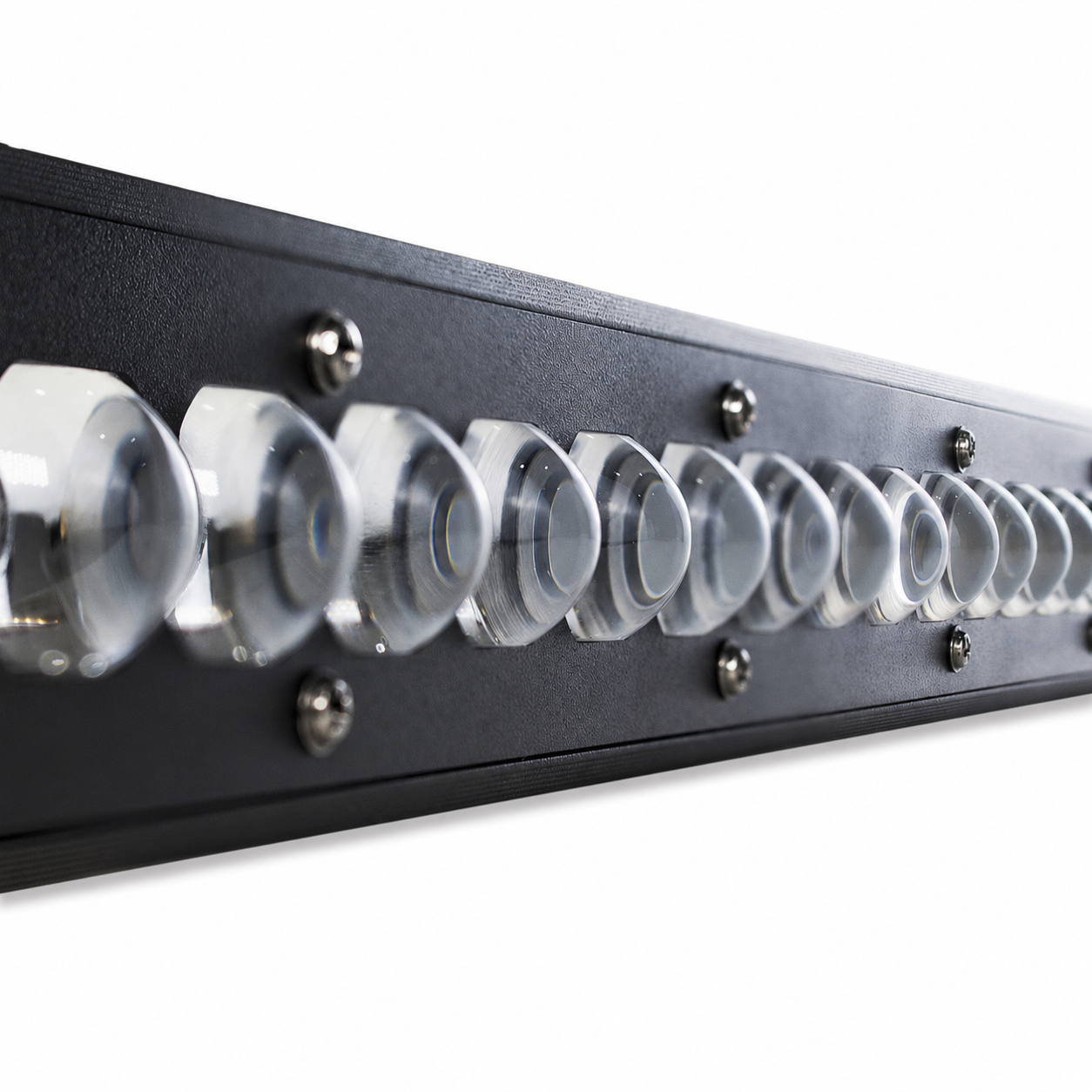

• Precision 3.6° Optics: Tight beam angle helps create sharp light curtains, matrix effects, and focused aerial-style beams.
• Individual Pixel Control: Supports up to 125CH DMX mode for pixel-by-pixel programming, chases, mapping effects, and dynamic background visuals.
• Smooth Dimming: 16-bit and 32-bit 0–100% linear electronic dimming supports clean fades and controlled transitions.

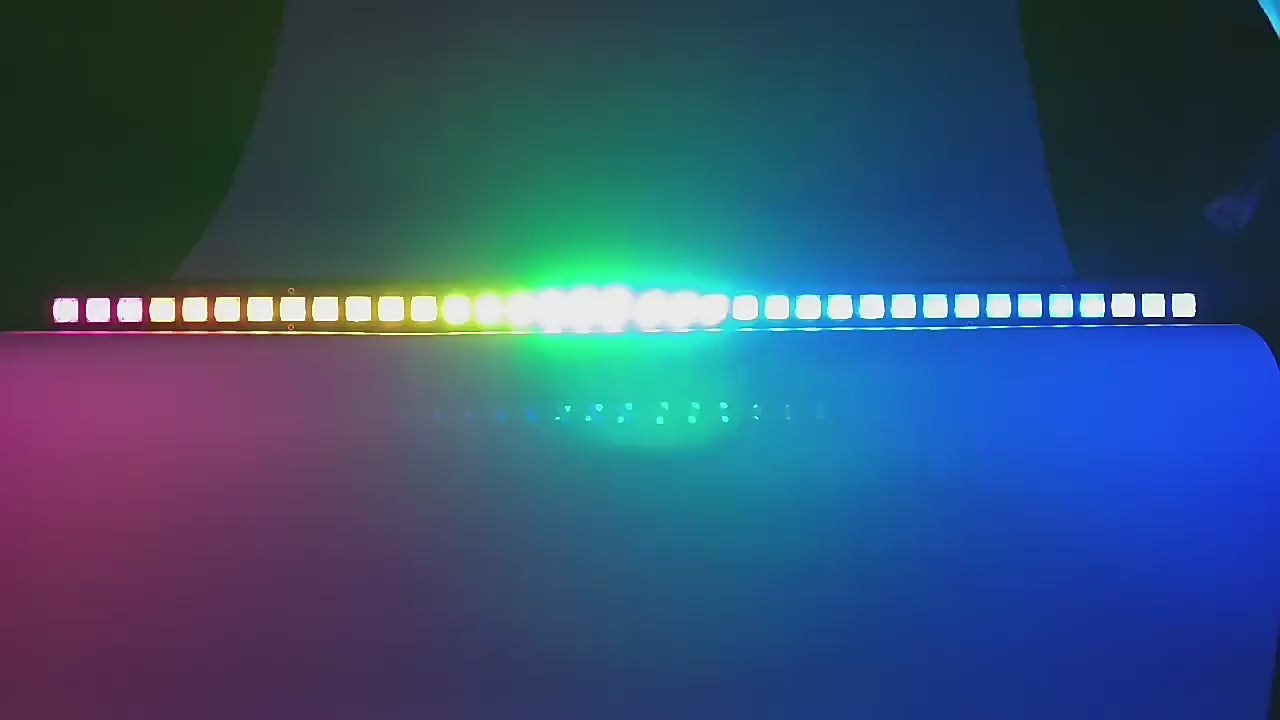

• Built-In Effects: Includes preset colors, auto follow, auto fade in/out, chase effects, and smart color changes for fast setup.
• Multiple Control Modes: Supports DMX512, RDM, auto-run, sound-activated operation, and master-slave mode.
• Lightweight Aluminum Body: Aluminum alloy housing helps support heat dissipation while keeping the fixture easy to mount and transport.
• Matrix-Friendly Design: Slim profile supports hanging mount setups and close alignment when building larger pixel bar arrays.

Instructions

1. Installation & Rigging: Use a suitable hanging mount, clamp, or truss system for installation. The lightweight 2.3 kg net weight makes it easier to rig, but all mounting points should still be properly secured.
2. Power Supply: Connect the fixture to a reliable AC 90–240V, 50–60Hz power source. The maximum power consumption is 150W.

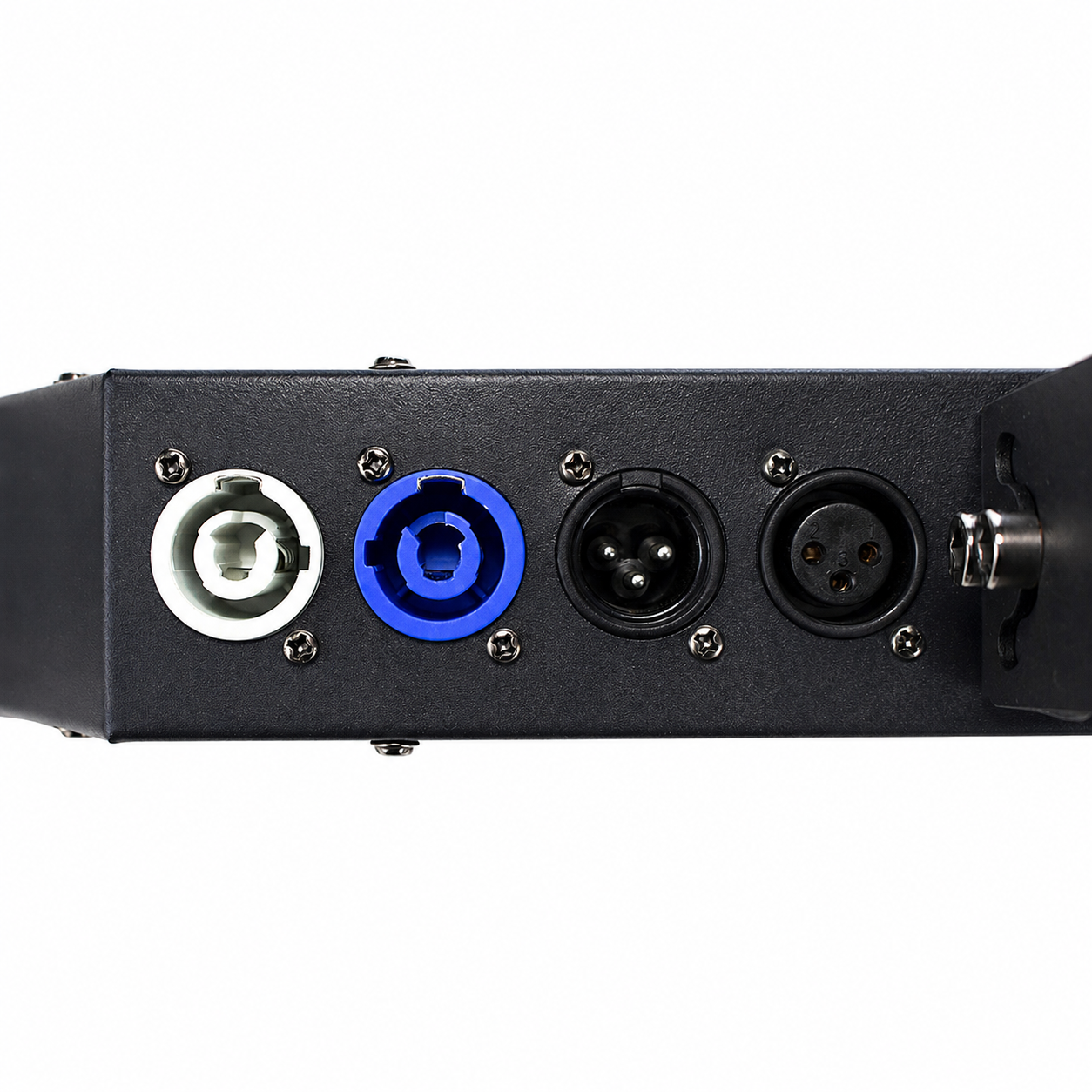

3. Data & Control: Connect the fixture to your DMX network. Use 3CH or 8CH modes for basic operation, or 125CH mode for full pixel-by-pixel control.

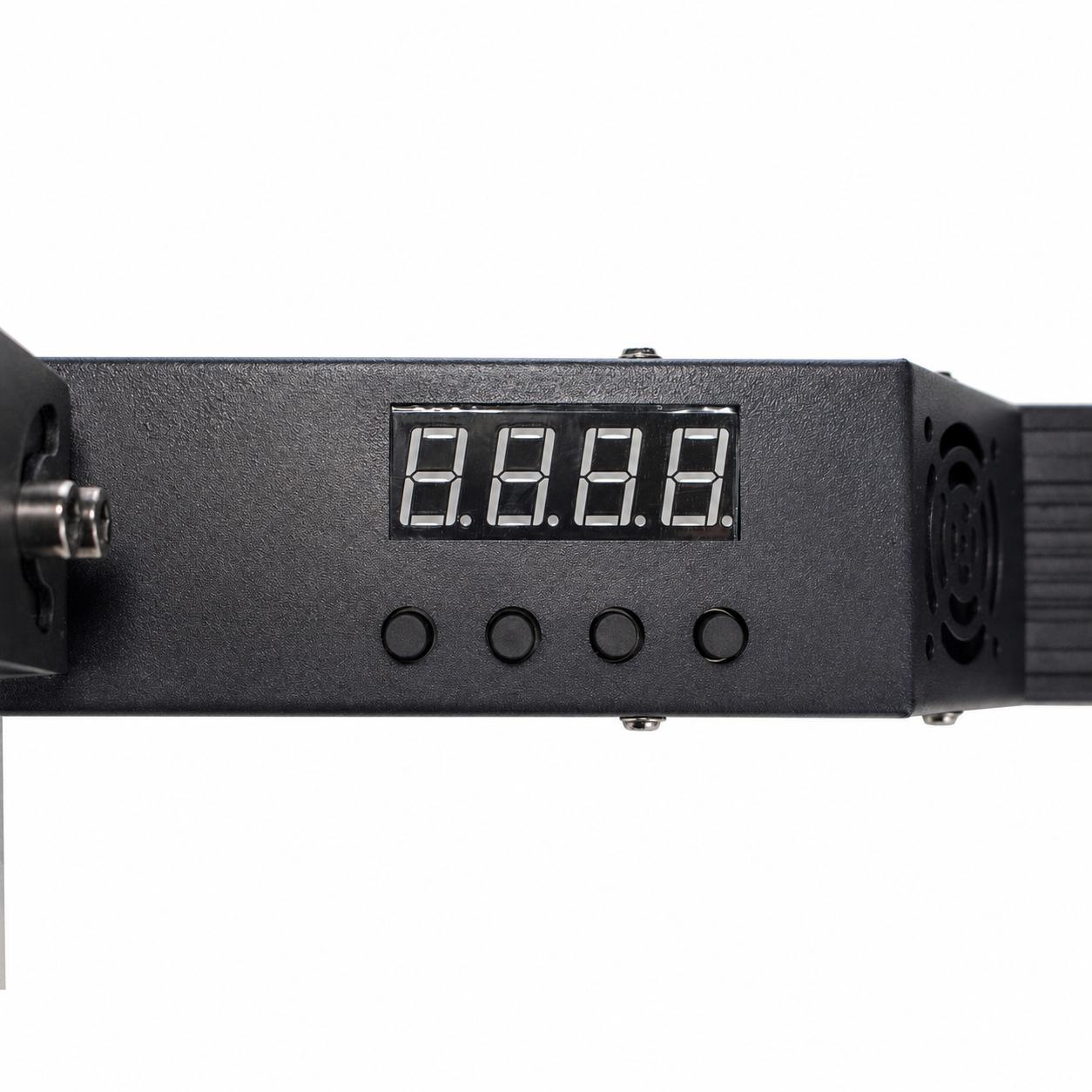

4. Standalone Operation: Without a lighting console, use the onboard menu to select auto-run, sound-activated, or master-slave mode for built-in effects.
5. Matrix Setup: When linking multiple fixtures, align bars carefully for cleaner edge-to-edge effects, chase patterns, and larger light curtain layouts.
6. Maintenance: This fixture is rated IP20 and is designed for indoor use. Operate within the recommended temperature range of -20°C to 45°C, and keep the front lenses clean to maintain beam sharpness.
