7x7 LED Pixel Matrix Panel - Pro 49-Cell Hybrid Stage Background Blinder with Individual Pixel Control for Concerts, Clubs & TV Sets

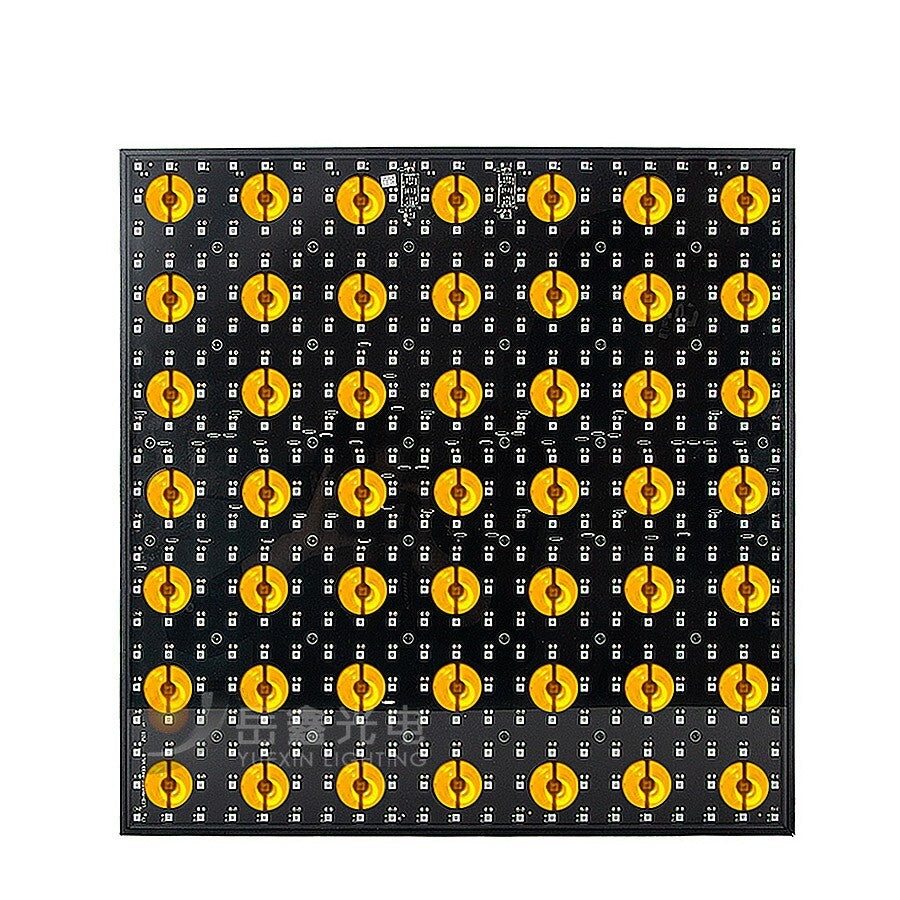

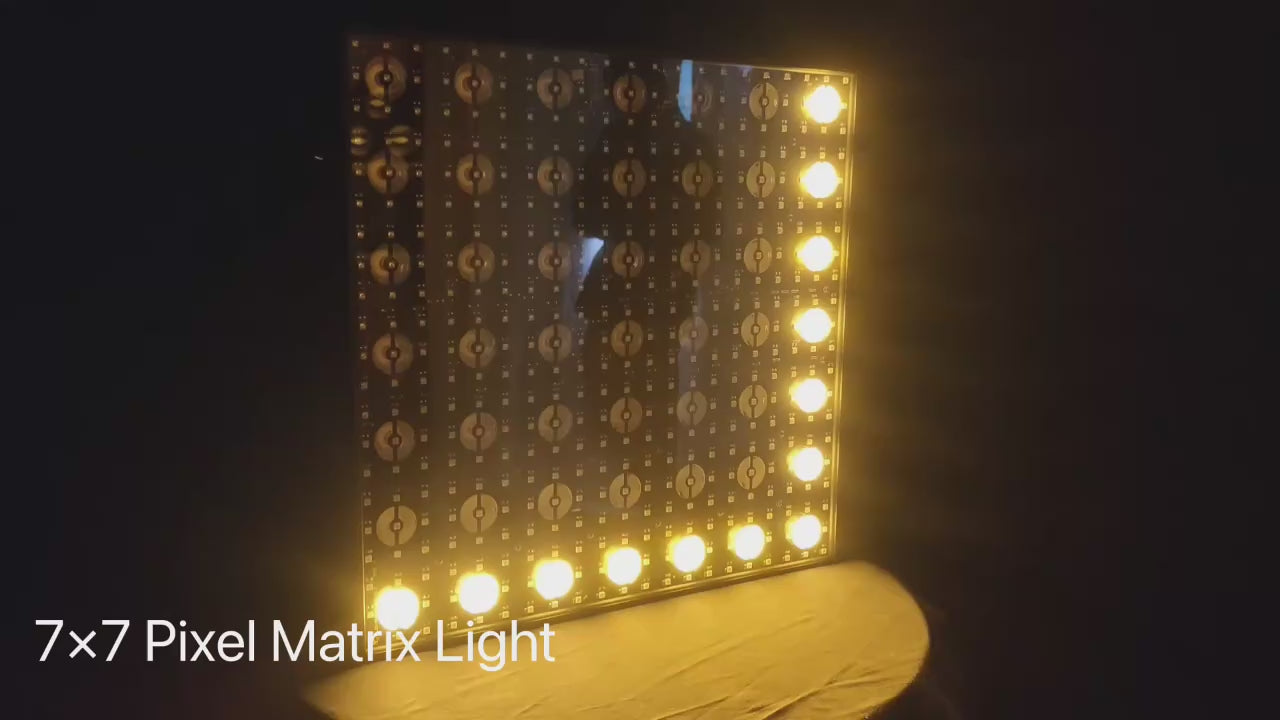

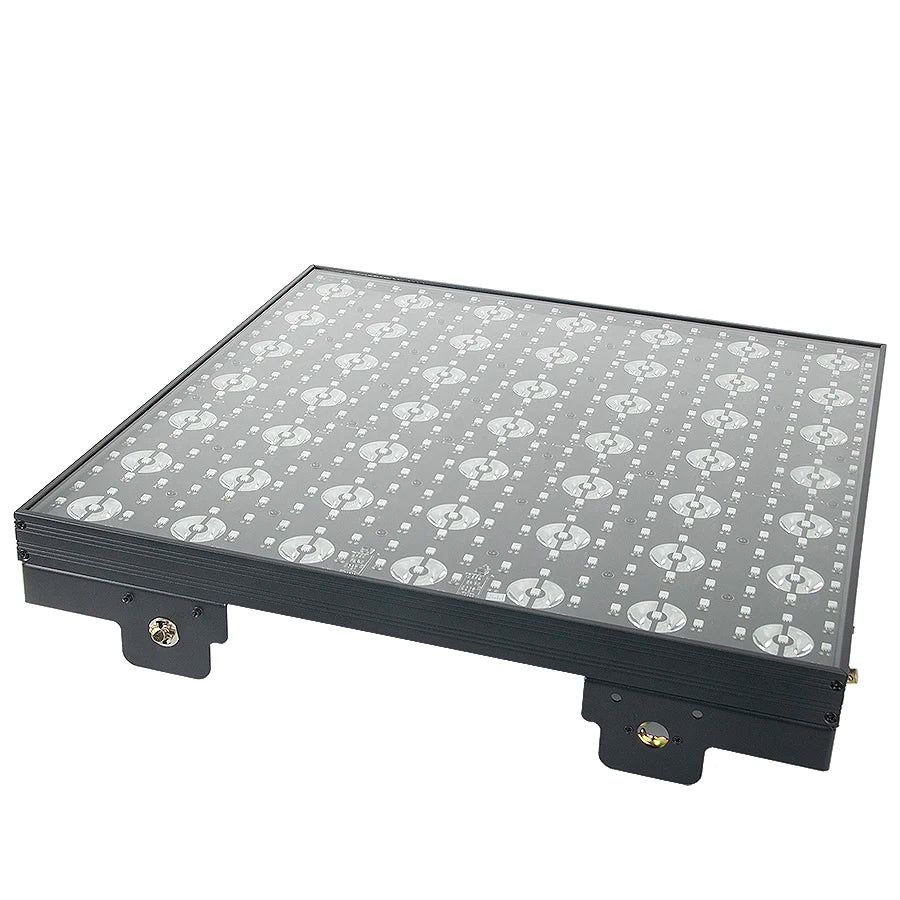

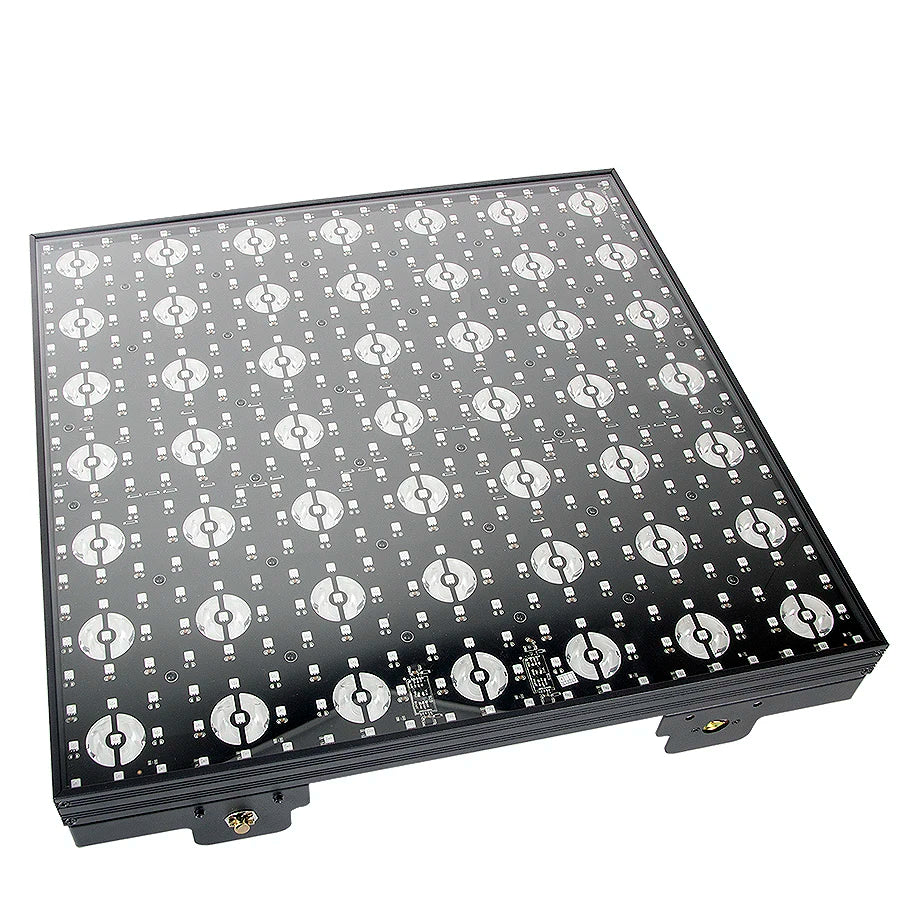

The 7x7 LED Pixel Matrix Panel is a high-impact hybrid stage background blinder designed to create visual backdrops for concerts, clubs, TV sets, vocal performances, and live productions. This professional effect light uses a dual-layer light source, combining 49 warm white / gold 3W LED beads with a dense matrix of 441 RGB 3-in-1 LEDs.

With individual pixel control, multiple DMX channel modes, auto-drive, voice-controlled operation, and free wireless splicing in both horizontal and vertical directions, this fixture is suitable for building dynamic LED walls, stage backgrounds, blinder arrays, flowing color effects, character-style patterns, and high-energy visual scenes.

Key Features

• Hybrid Light Matrix: Combines 49 x 3W warm white / gold LEDs for blinder effects with 441 x 0.2W RGB 3-in-1 LEDs for full-color pixel mapping.
• Advanced Pixel Control: Supports dynamic animations such as chasing effects, flowing visuals, character-style patterns, color washes, and flash effects.
• Seamless Splicing: Designed for horizontal and vertical splicing, making it suitable for building larger matrix walls or stage background arrays.

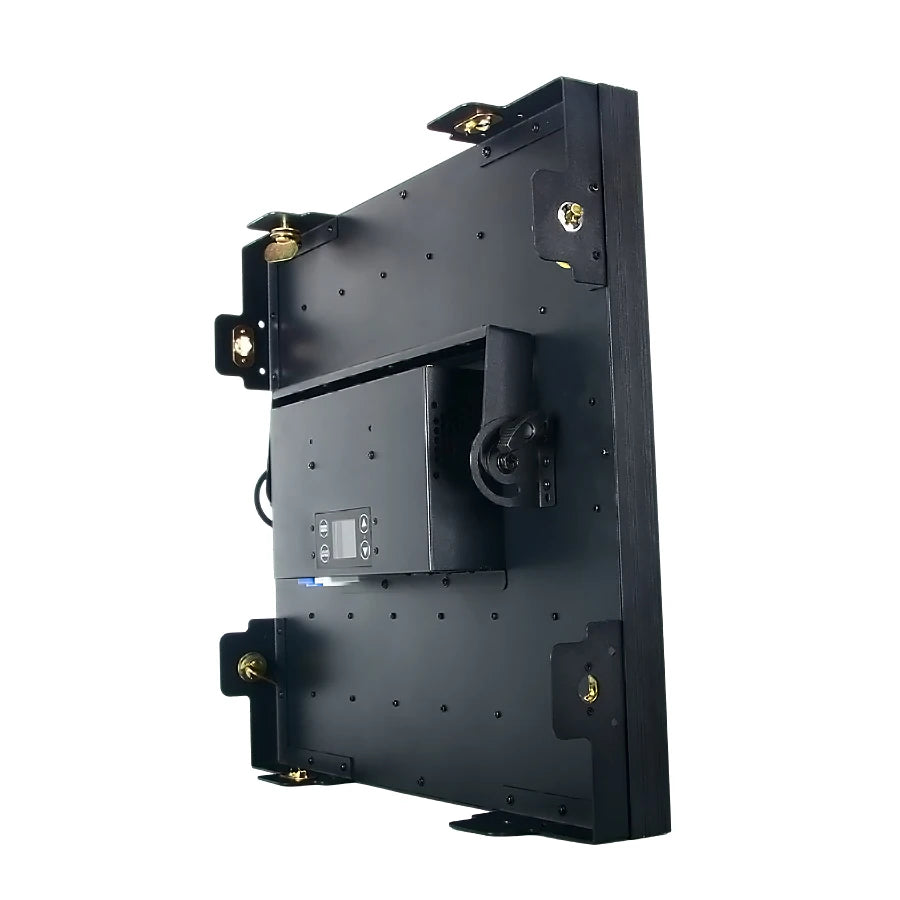

• Flexible Positioning: Includes a 180° Y-axis adjustable bracket for floor placement, hanging setups, pole mounting, or free-standing configurations.
• Multiple Control Modes: Supports DMX512, auto-drive, and voice-controlled operation for both programmed shows and standalone effects.
• Extensive DMX Profiles: Channel options range from basic 4CH control to advanced 1372CH pixel-mapping control.

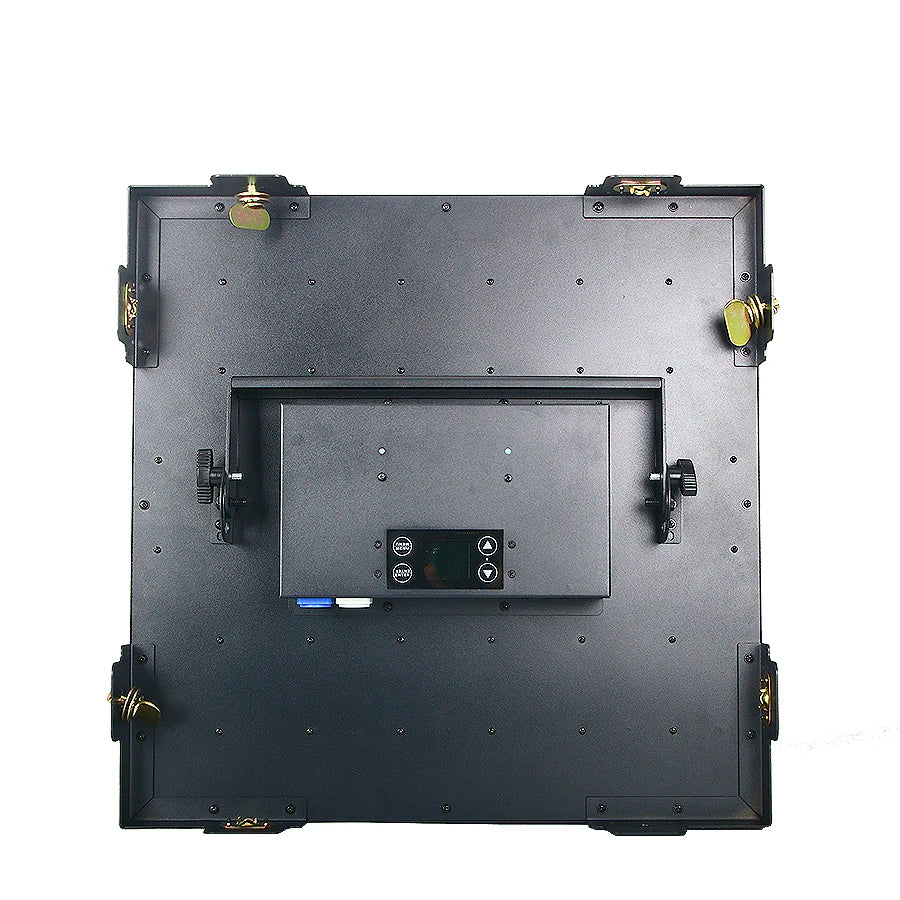

• Touch Screen Operation: LCD touch screen interface helps with setup, addressing, and channel mode selection.
• Durable Metal Housing: Ferrous metal chassis with cooling fan system supports stable operation for indoor stage environments.

Instructions

1. Installation: This fixture supports track, hanging, ground, pole, and free-standing installation styles. Use suitable mounting hardware and make sure the structure can safely support the unit and any connected panels.
2. Splicing Setup: When building larger visual arrays, align and connect panels carefully in horizontal or vertical directions. Confirm that each panel is securely fixed before operation.
3. Power Setup: Connect the fixture to a reliable AC 100–240V, 50–60Hz power supply. Use power input and output ports only within safe load limits when linking multiple fixtures.
4. Data Connection: Connect your DMX controller through the DMX input/output ports. Use the LCD touch screen to set the DMX starting address and choose the desired channel mode.
5. Programming: For detailed pixel mapping, use higher DMX channel modes with professional lighting software or a compatible console. For quicker setups, use auto-drive or voice-controlled mode for built-in effects.
6. Maintenance: This fixture is IP20 rated for indoor use. Keep rear cooling fans, vents, lenses, and the front panel clean and free from dust or debris to maintain proper heat dissipation and visual output.
