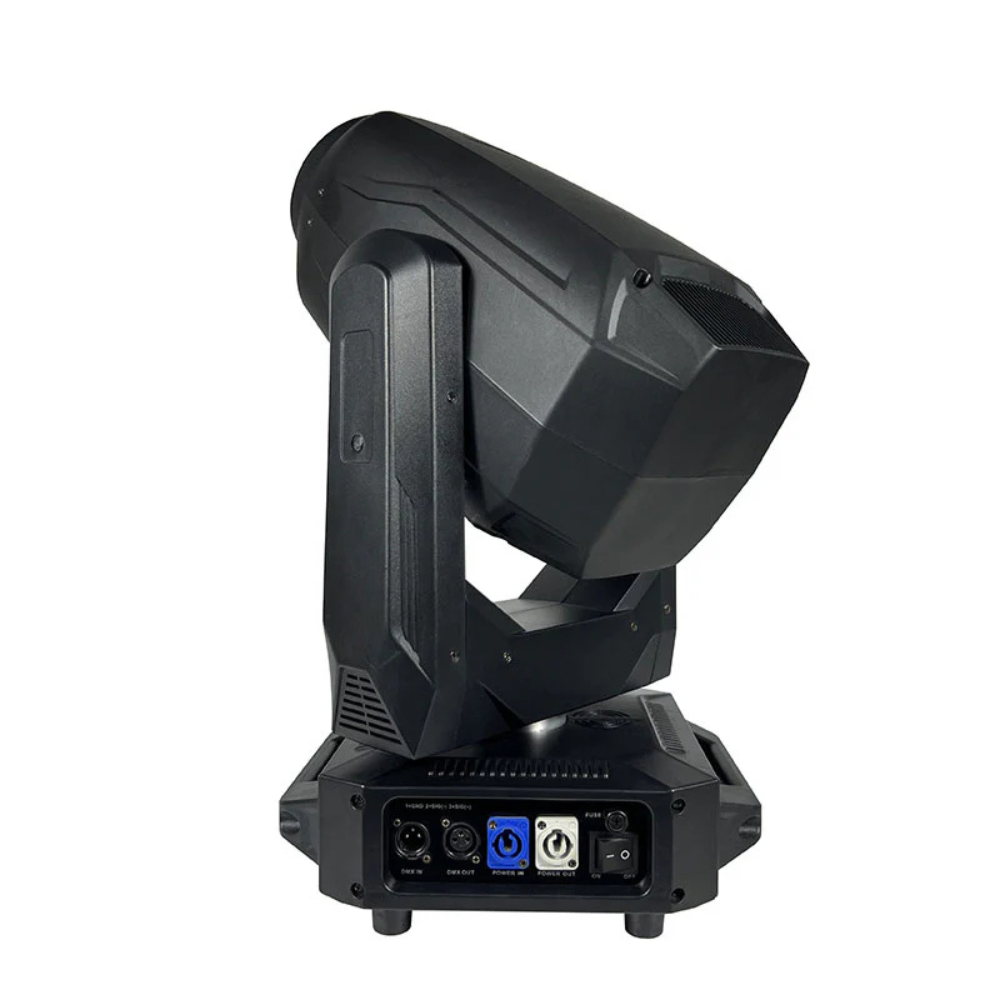

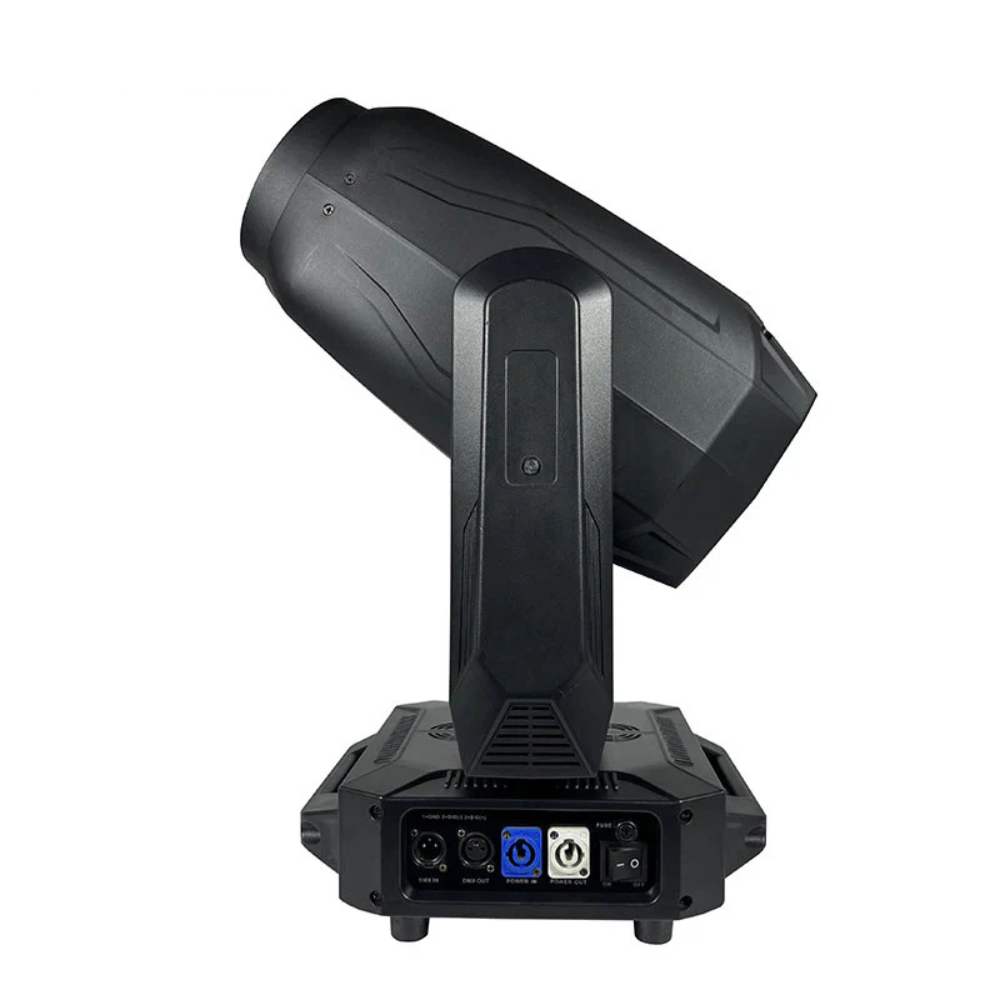

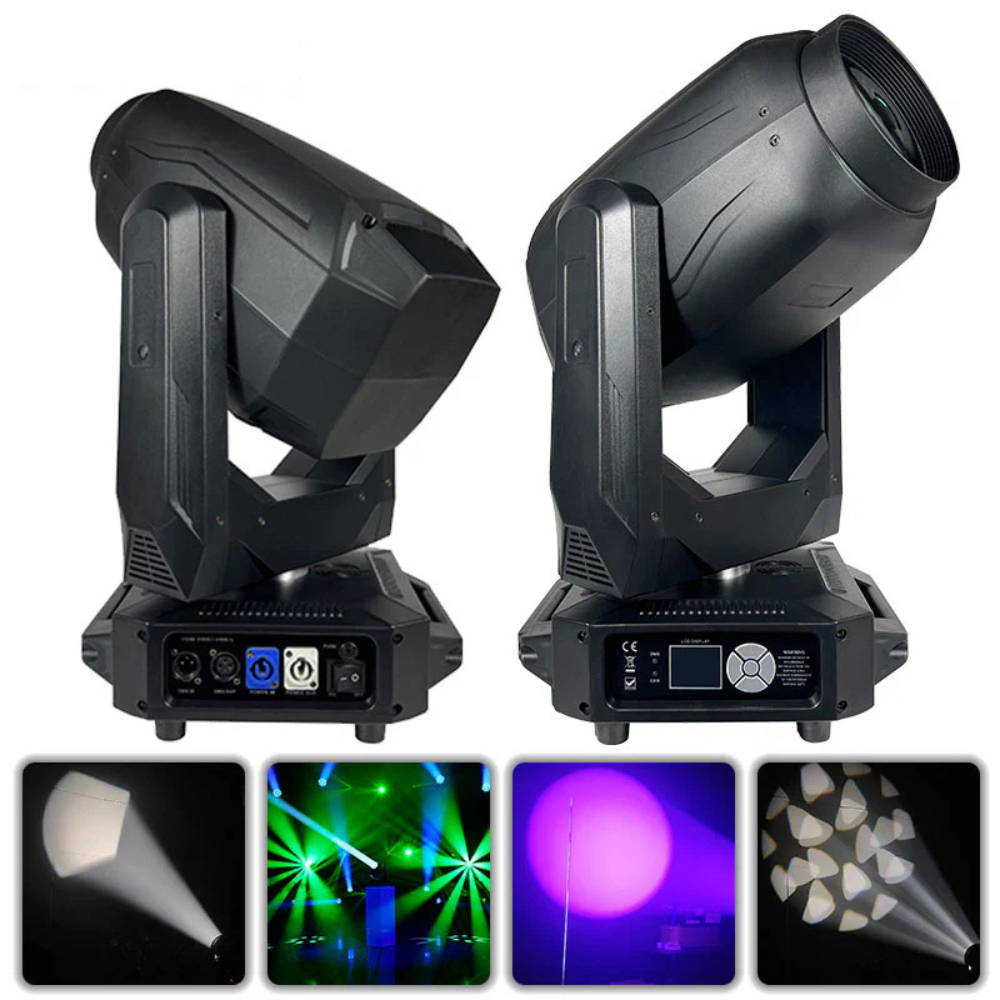

400W BSWF LED Profile Moving Head - 4-in-1 Beam Spot Wash Framing Fixture with CMY+CTO & Rotating Gobos for Theater, TV & Stage

The 400W BSWF LED Profile Moving Head is a versatile 4-in-1 fixture offering Beam, Spot, Wash, and Framing capabilities. Powered by a white light LED 400W module with a 20,000-hour lifespan, this moving head is designed for professional theater, TV, stage, and live production applications.

It features CMY color mixing, linear CTO color temperature correction, rotating glass gobos, and an eight-blade framing system that helps shape the beam for more precise stage lighting control. With fast and quiet pan/tilt movement, electronic focus, and a wide zoom range, this fixture is built for productions that need flexible lighting effects in one unit.

Key Features

• Powerful Light Source: Equipped with a white light LED 400W module with a rated 20,000-hour operational life.
• 4-in-1 Lighting Function: Combines Beam, Spot, Wash, and Framing functions in one moving head fixture.
• Advanced Color System: Features 2 color plate disks with 6 fixed color plates + white light, plus CMY color mixing and linear CTO color temperature correction.
• Precision Framing / Cutting: A controllable eight-blade cutting system allows the beam to be shaped into triangles, diamonds, rectangles, and other framed beam shapes.
• Dynamic Optics & Zoom: Offers a 4.5°–35° linear zoom range with ultra-fine electronic focus.
• Rotating Glass Gobos: Includes 7 glass patterns with independent reverse rotation.
• High-Speed Movement: Supports 540° or 630° horizontal pan and 270° vertical tilt with 16-bit precision scanning.
• Strobe & Dimming: Includes 0–100% linear dimming and strobe up to 25Hz with random and pulse strobe effects.
• Professional Control: Touch color LCD display with RDM function for easier addressing and fixture management.

Instructions

1. Installation & Rigging: Securely mount the fixture to a suitable truss or stage structure. Make sure the structure can safely support the fixture’s 23 kg net weight and allow enough clearance for pan and tilt movement.
2. Power & Connectivity: Connect the fixture to a stable AC100–240V, 50/60Hz power supply. Connect DMX cables if using a lighting console or DMX control system.
3. Configuration: Use the touch color LCD display to set the DMX address and adjust fixture settings. The RDM function can help with remote addressing and management when supported by your control system.
4. Beam Shaping: Use the framing channels to control the cutting plates and shape the beam for stage areas, performers, scenery, or projection zones.
5. Operation: Adjust dimming, CTO, zoom, focus, gobos, color mixing, and movement effects based on your show design, venue size, and lighting requirements.
