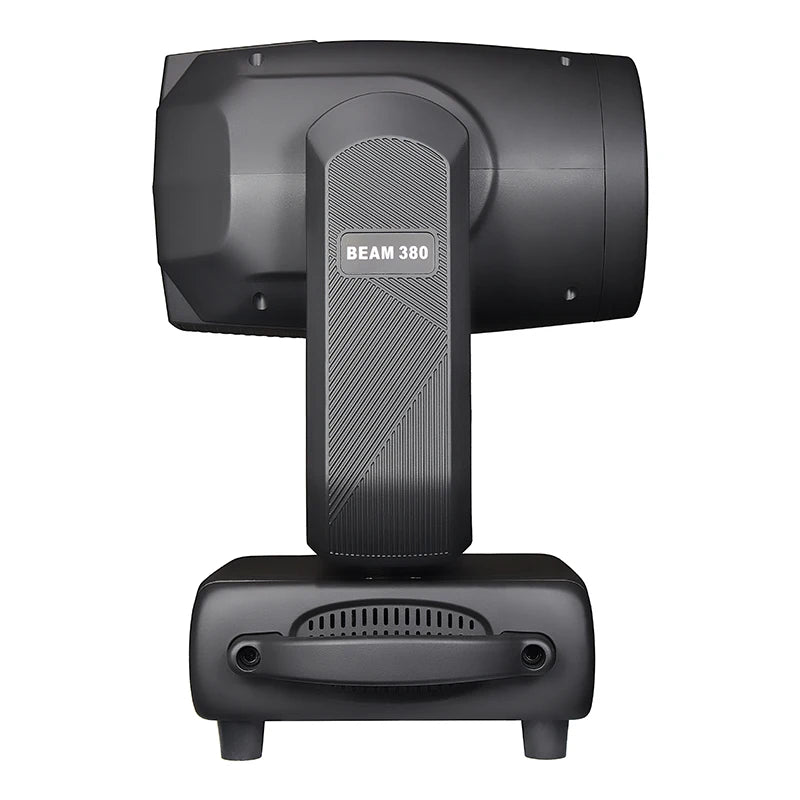

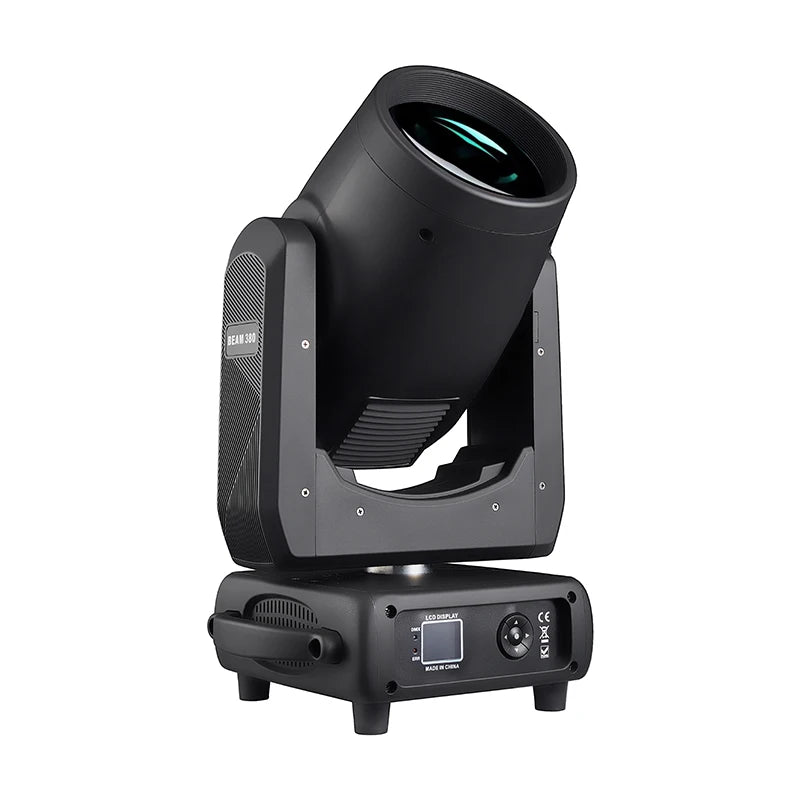

380W Pro Beam Moving Head Light

Elevate your stage production with the 380W Pro Beam Moving Head Light. This professional-grade beam fixture is designed for concerts, touring productions, nightclubs, DJ events, and permanent stage installations. Powered by a Phoenix 380W lamp, it delivers a bright, piercing beam with 7950 lm luminous flux and a crisp color temperature of up to 8500K.

With a 14-color wheel, fixed pattern disk, linear focusing, atomization / frost effect, stacked dual-prism system, 540° pan, 270° tilt, DMX512 control, master-slave mode, and sound-active operation, this moving head gives lighting users strong creative control for aerial beam effects, gobo projection, prism looks, and high-energy stage visuals.

Key Features

• Bright 380W Beam Output: Uses a Phoenix 380W lamp to produce sharp beam effects with up to 7950 lm luminous flux.
• 8500K Color Temperature: Crisp daylight-style output helps the beam cut through haze and ambient stage lighting.
• Dynamic Prism Effects: Includes 48 honeycomb prisms and 12 prisms. Double prisms can be stacked and rotated independently in both directions.
• Rich Color Wheel: 14 color tiles plus white light, 6 colorful tiles, and rainbow effect support fast and colorful beam changes.
• Pattern Projection: Fixed pattern disk includes 10 fixed patterns plus 4 glass images, providing 14 pattern effects plus white light.
• Linear Focus & Frost: Linear focusing from near to far, plus atomization / frost function with adjustable speed for softer effects.
• Precision Movement: 540° horizontal pan and 270° vertical tilt with 8-bit / 16-bit fine tuning for accurate positioning.
• Flexible Control Modes: Supports DMX512, master-slave, and sound-active operation with 16CH control.

Instructions

1. Mounting: Use suitable clamp hooks, rated brackets, and safety cables to securely fasten the fixture to your truss system. Make sure the structure can safely support the 12 kg net weight.
2. Power Connection: Connect the power cable to a compatible AC100–240V, 50/60Hz power source. The total power draw is up to 600W, so confirm that your circuit and power distribution setup can safely support the load.

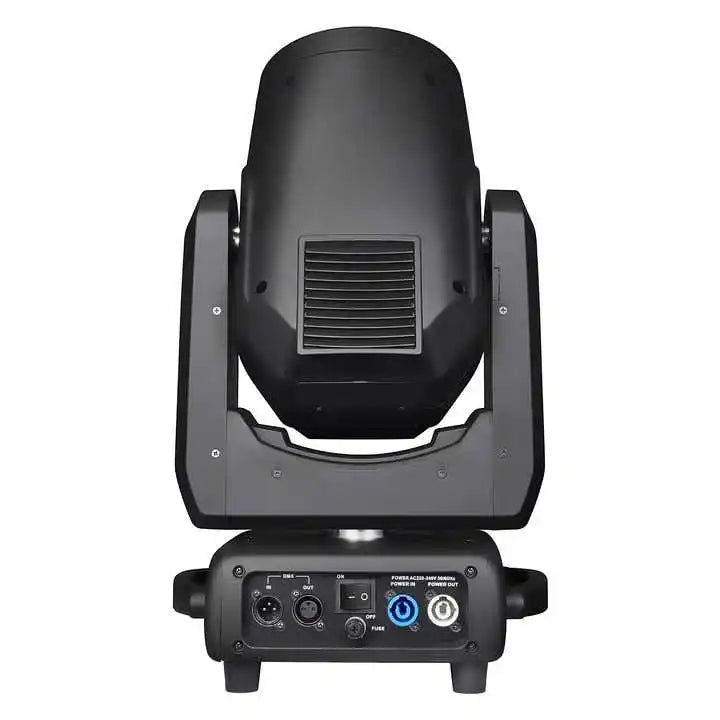

3. Data Connection: Connect the signal cable to your DMX controller, or link multiple fixtures through the DMX input/output ports for master-slave operation.

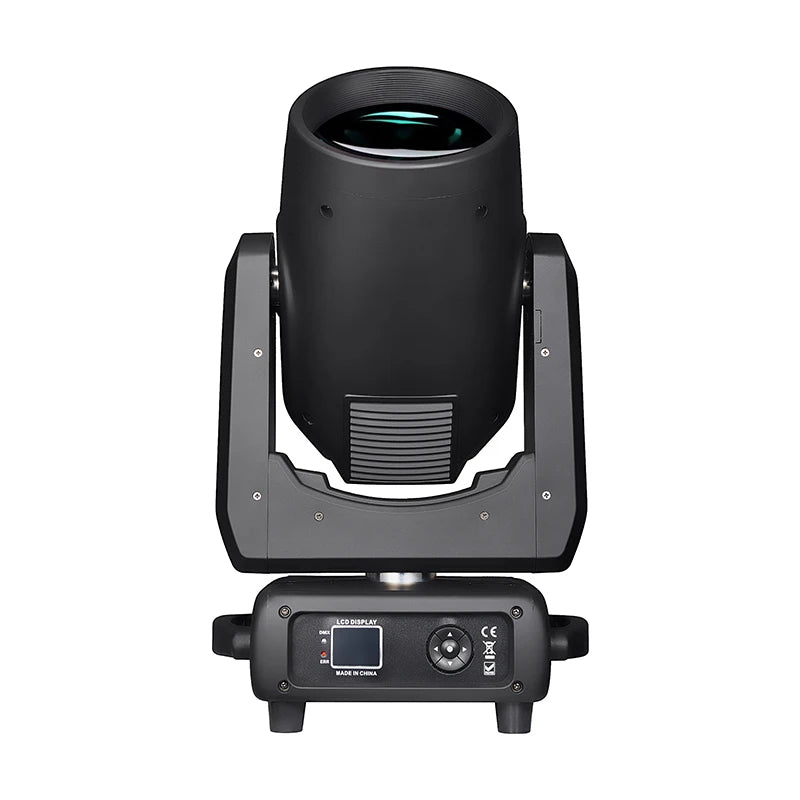

4. Configuration: Use the LCD display to set the DMX address, select 16CH mode, or activate standalone / sound-active functions.
5. Effect Programming: Use DMX control to combine color wheel effects, pattern disk effects, focusing, atomization, prism stacking, pan, tilt, and beam movement for dynamic stage looks.
6. Maintenance: Keep lenses clean and cooling vents unobstructed to support stable output and lamp performance. Refer to the user manual for detailed safety and operating guidelines.

Technical Specifications
