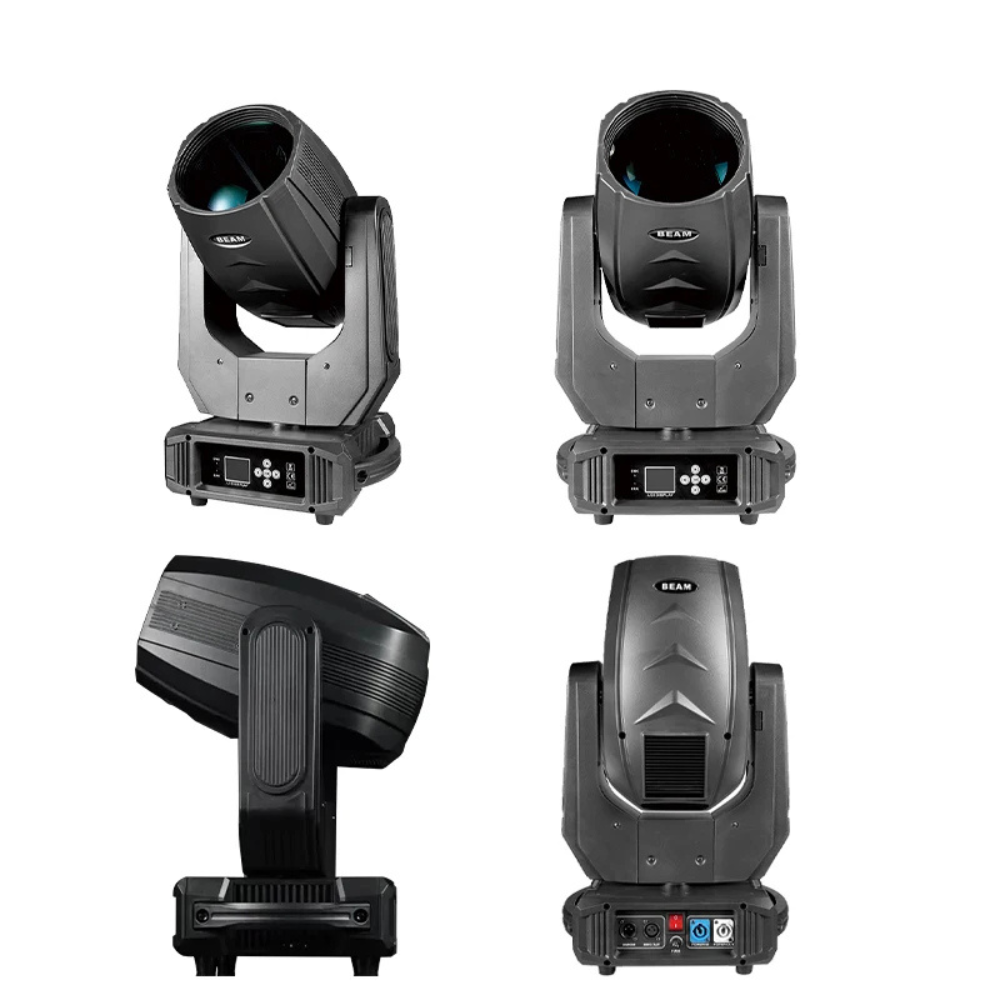

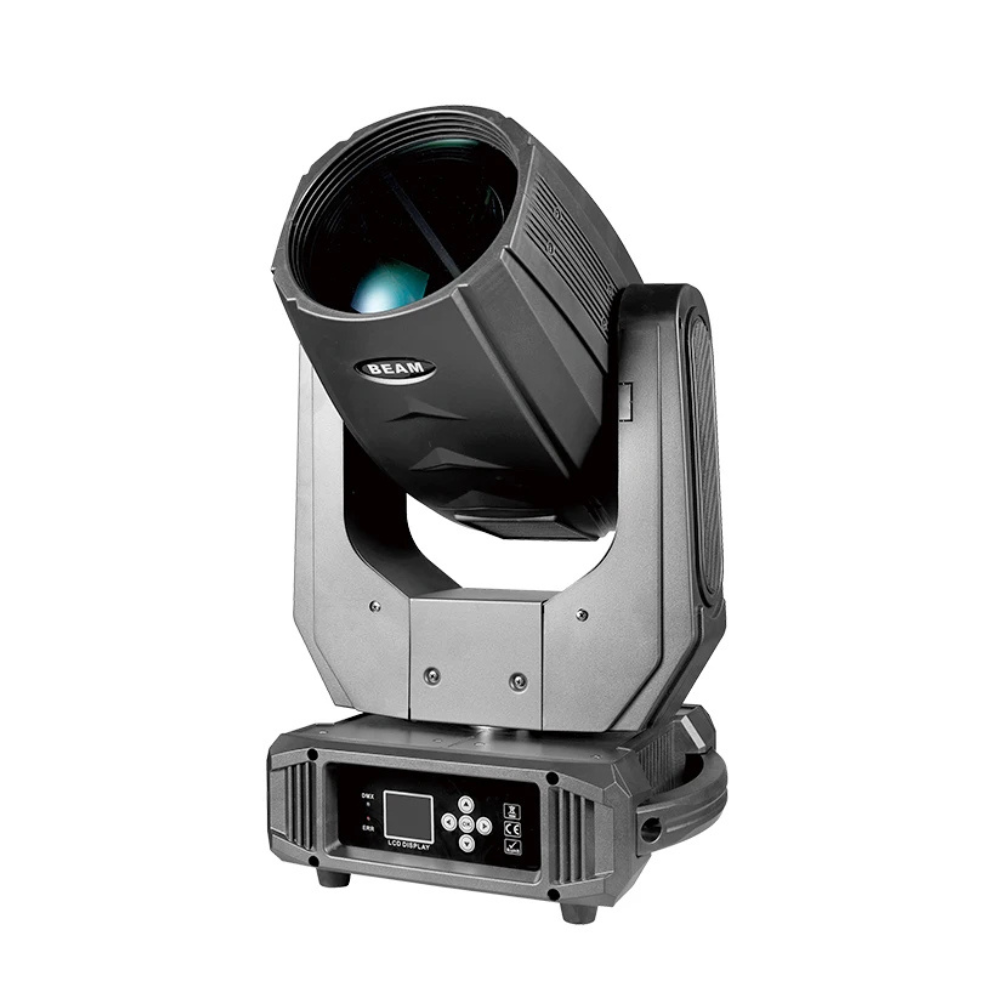

380W (18R) Pro Beam Moving Head Fixture with Dual-Prism FX

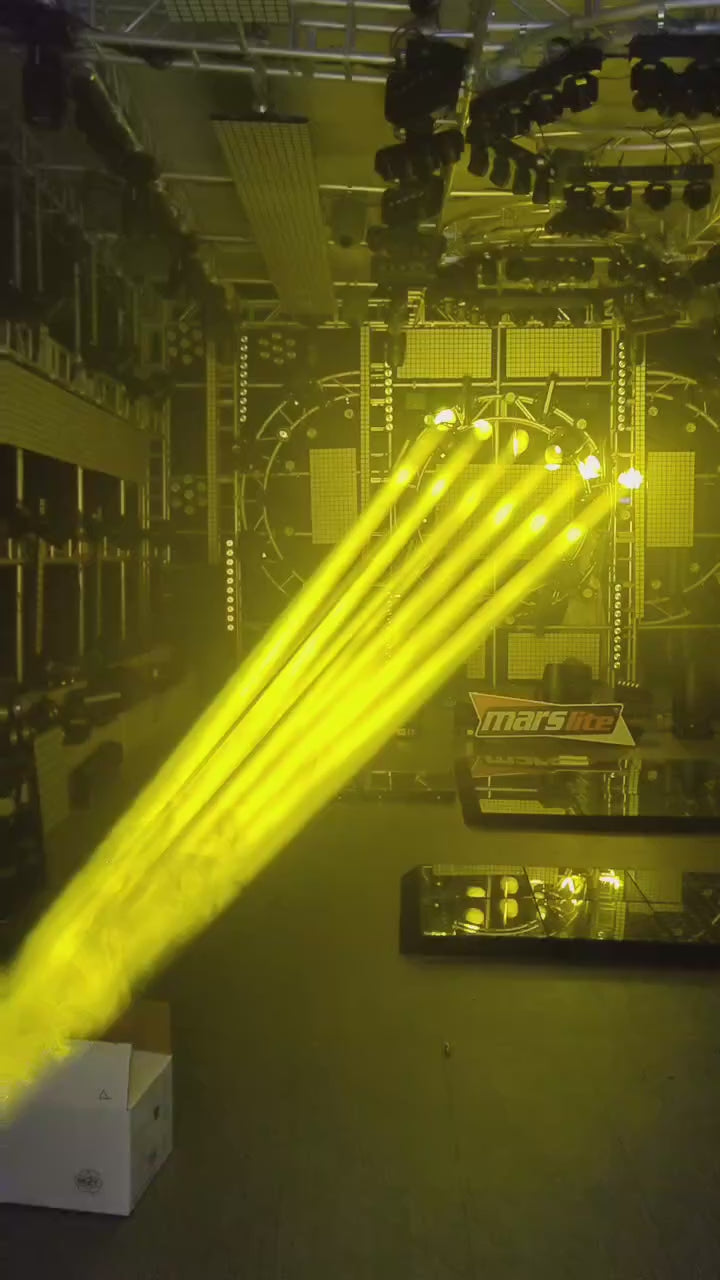

The 380W (18R) Pro Beam Moving Head Fixture with Dual-Prism FX by Pro X Stage is a professional beam moving head designed for parties, discos, live events, clubs, concerts, and stage productions. Powered by a high-intensity PHX Phoenix 380W bulb, this fixture delivers sharp long-throw beam effects with a crisp 6000K daylight color temperature.

With a 13-color wheel, 14-pattern gobo wheel, dual-prism system, smooth dimming, multiple strobe modes, DMX512 control, auto-run, sound-activated operation, and master-slave mode, this beam moving head gives lighting designers strong creative control for aerial beam effects, gobo looks, prism projections, and high-energy stage visuals.

Key Features

• High-Performance Lamp: Uses a PHX Phoenix 380W bulb to create bright, sharp, long-throw beam effects.
• Rich Color Options: Includes a color wheel with 13 colors plus white, with flowing scroll and half-color effects.
• Gobo Pattern Effects: Features a gobo wheel with 14 patterns plus white, including flowing scroll and shaking effects.
• Advanced Dual-Prism FX: Two prisms support arbitrary angle positioning plus forward and reverse rotation for dynamic beam splitting and geometric projection effects.
• Smooth Dimming & Strobe: Supports smooth dimming without jitter and multiple strobe modes for controlled intensity and high-impact flashes.
• Flexible Control Modes: Supports DMX512, built-in auto-run, sound-activated auto-run, and master-slave operation.
• Professional Channel Modes: A16CH and B16CH modes provide flexible control options for different programming needs.
• Durable Aluminum Alloy Build: Aluminum alloy housing supports professional stage use and operation across a wide working temperature range.

Instructions

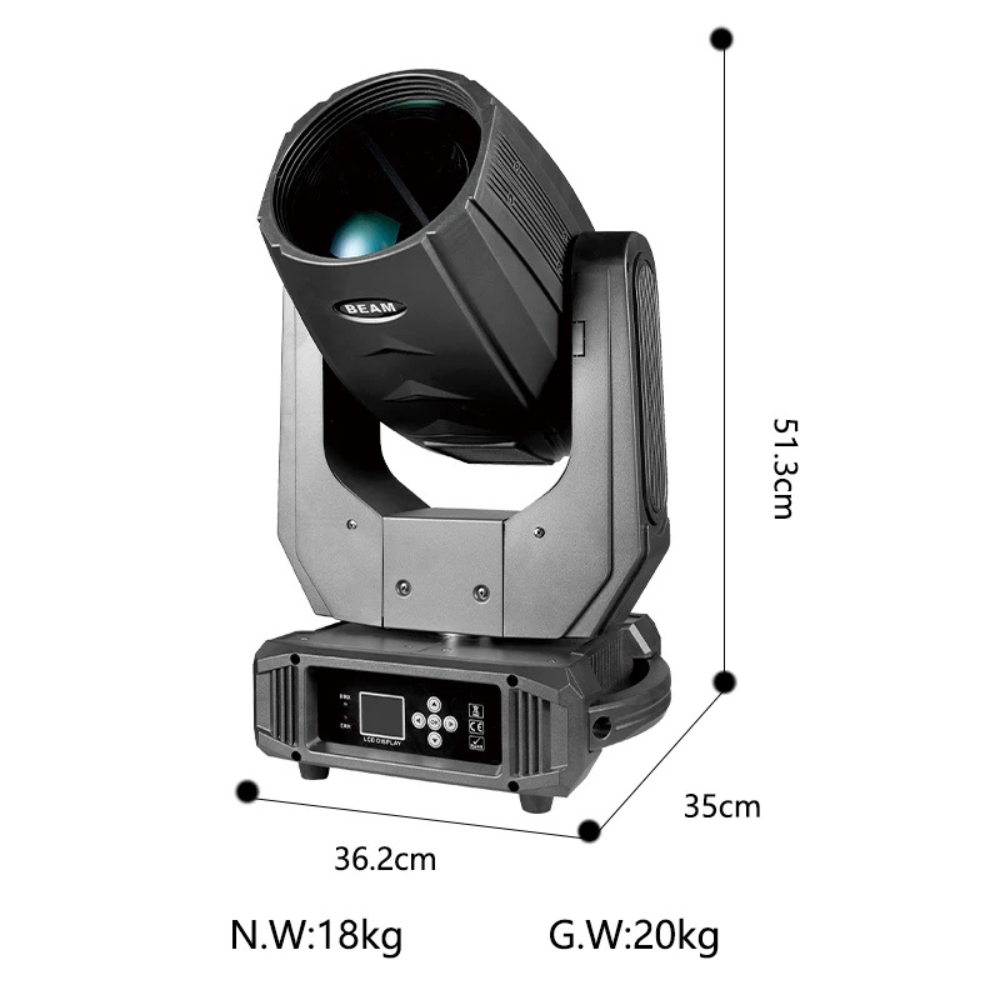

1. Installation & Rigging: Secure the fixture to a suitable truss system using the included brackets, rated clamps, and safety cables, or place it safely on a flat and stable surface. Make sure the mounting structure can safely support the 17–18 kg net weight.
2. Power Setup: Connect the power cable to a stable AC 100–240V, 47–63Hz power source. Confirm that the circuit and power distribution setup can safely support the fixture load.
3. Data Connection: Connect DMX cables to the rear DMX input/output ports and link the fixture to your lighting console. Select A16CH or B16CH mode based on your programming requirements.

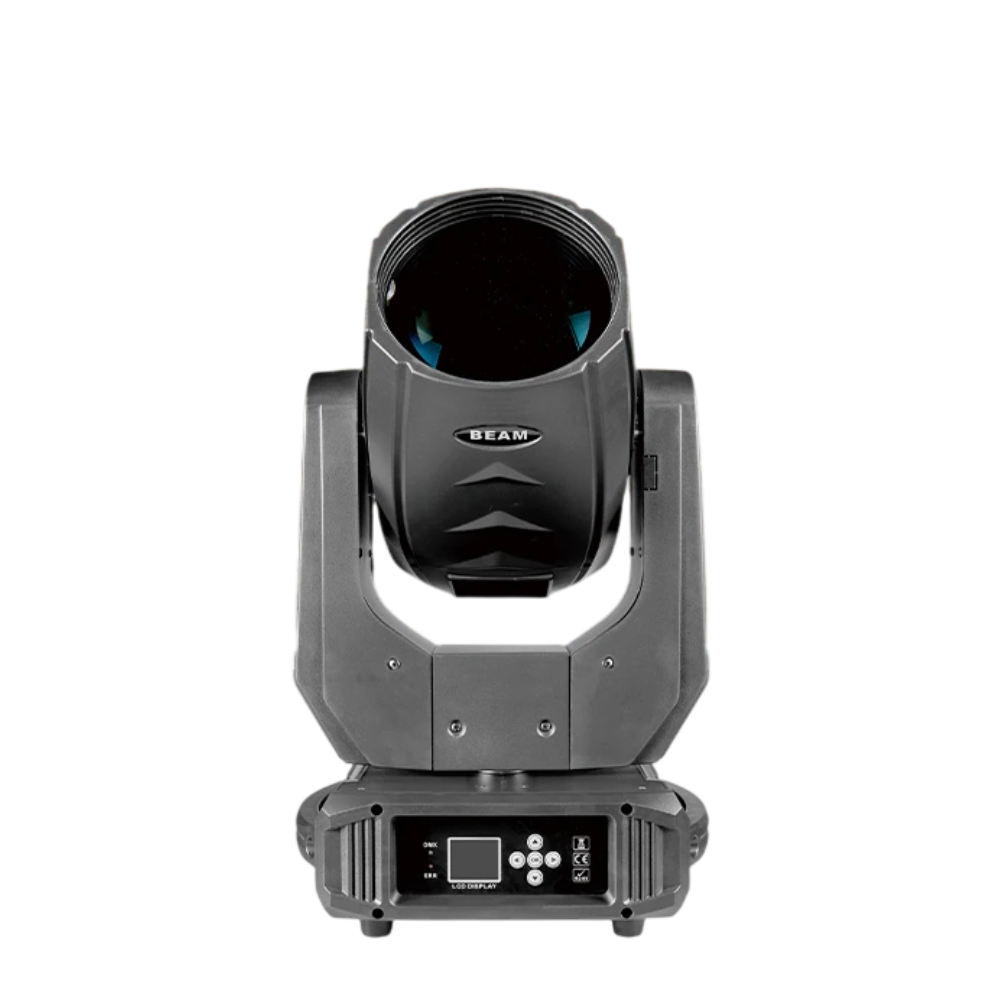

4. Operation: Use the front LCD display and navigation buttons to set the DMX address, select control modes, or activate standalone auto-run and sound-activated programs.
5. Optical Effects: Use the color wheel, gobo wheel, dual prisms, strobe, and dimmer channels to create beam looks, gobo projections, prism splits, and high-energy stage effects.
6. Maintenance: This fixture is intended for suitable indoor or covered environments. Keep external lenses, ventilation areas, color wheel areas, and gobo optics clean and free from dust to maintain strong output and reliable operation.
