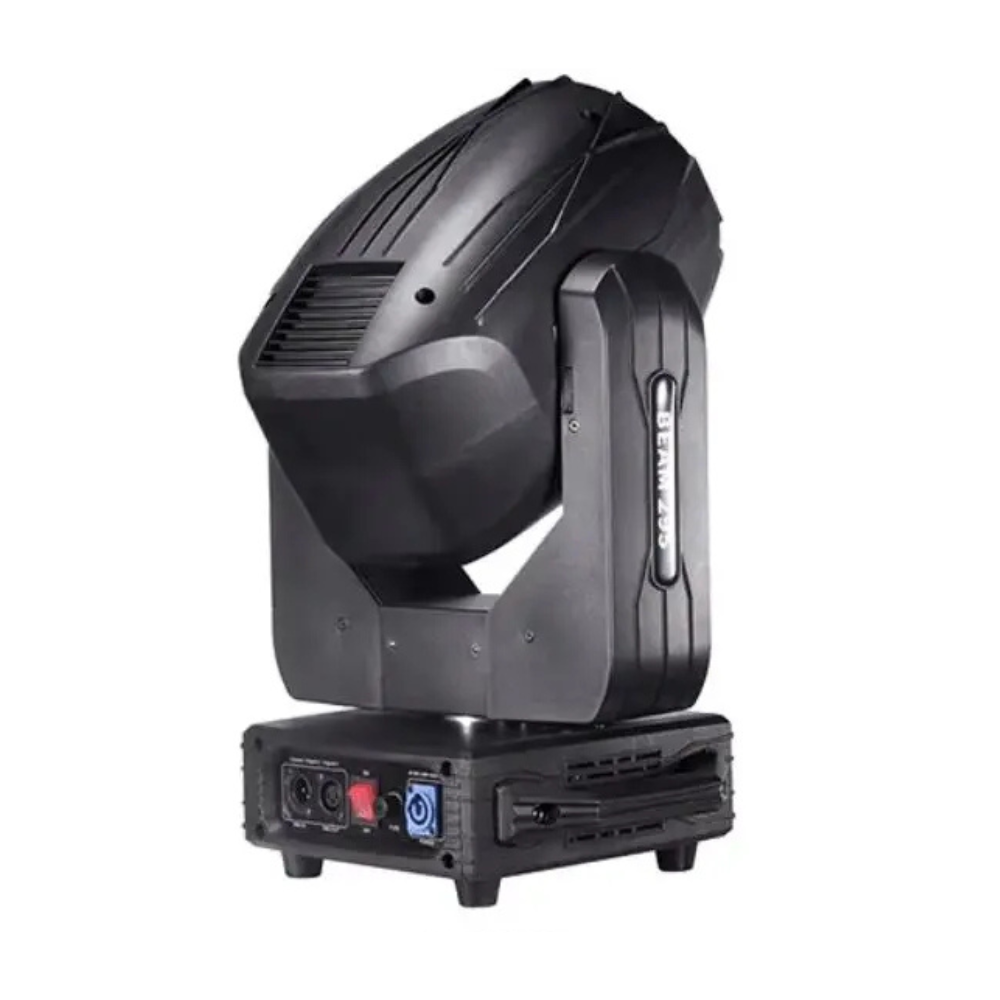

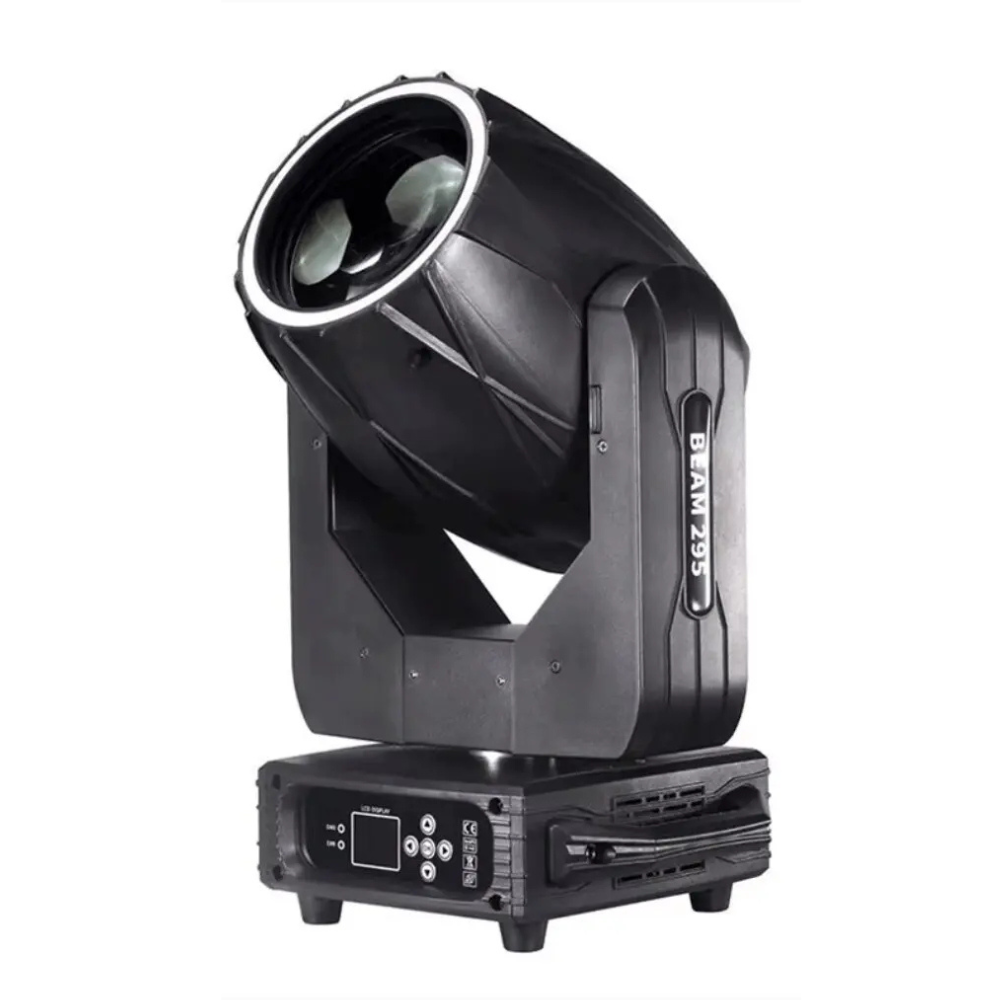

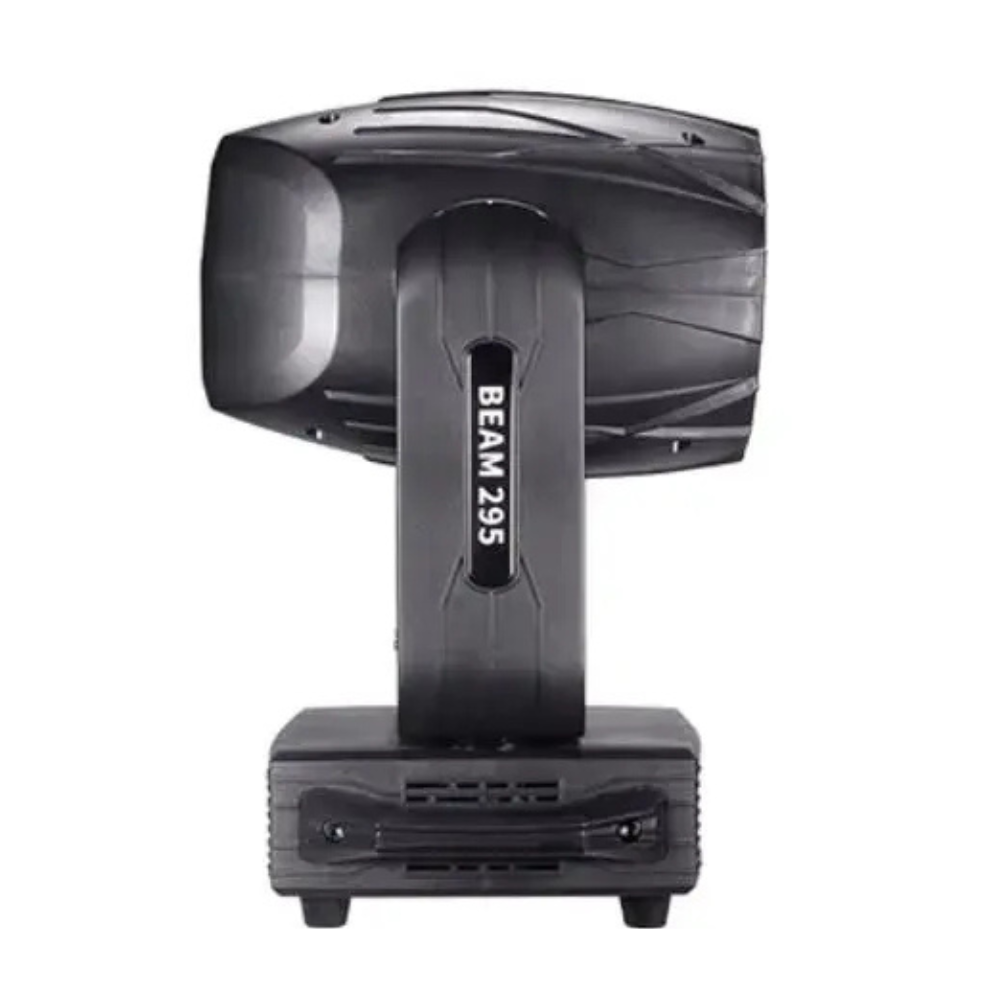

295W Pro Beam Moving Head Light

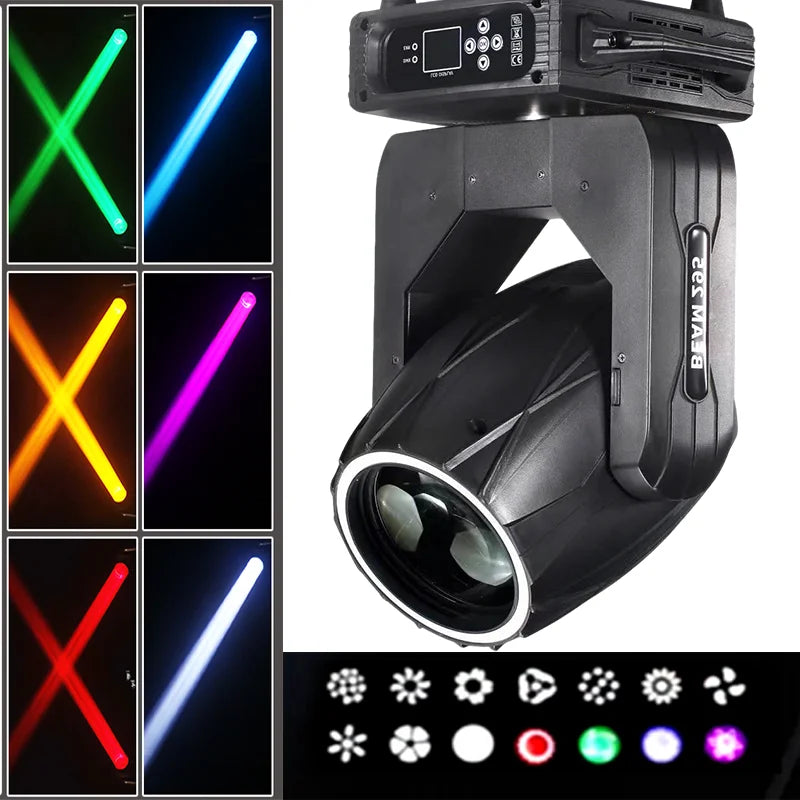

The PROXSTAGE 295W Beam Moving Head Stage Light is a professional beam moving head fixture designed for concerts, DJ sets, weddings, nightclubs, large venues, and event productions. Powered by a 295W discharge lamp, it delivers a sharp 2° beam designed to cut through haze and create strong aerial effects.

This fixture combines a high-intensity main beam with a 48-piece LED halo ring for added eye-candy effects. With a 14-color wheel, gobo wheel, multi-prism system, electronic focus, 0–100% linear dimming, 540° pan, 270° tilt, DMX512 control, 16CH / 20CH / 24CH modes, master-slave operation, automatic mode, and sound-active programs, it gives lighting users flexible control for beam effects, prism looks, gobo projection, and LED ring visuals.

Key Features

• High-Intensity 295W Beam: Powered by a 295W discharge lamp for strong beam output and professional stage performance.
• Tight 2° Beam Angle: Produces a focused aerial beam for concerts, clubs, DJ stages, and large event spaces.

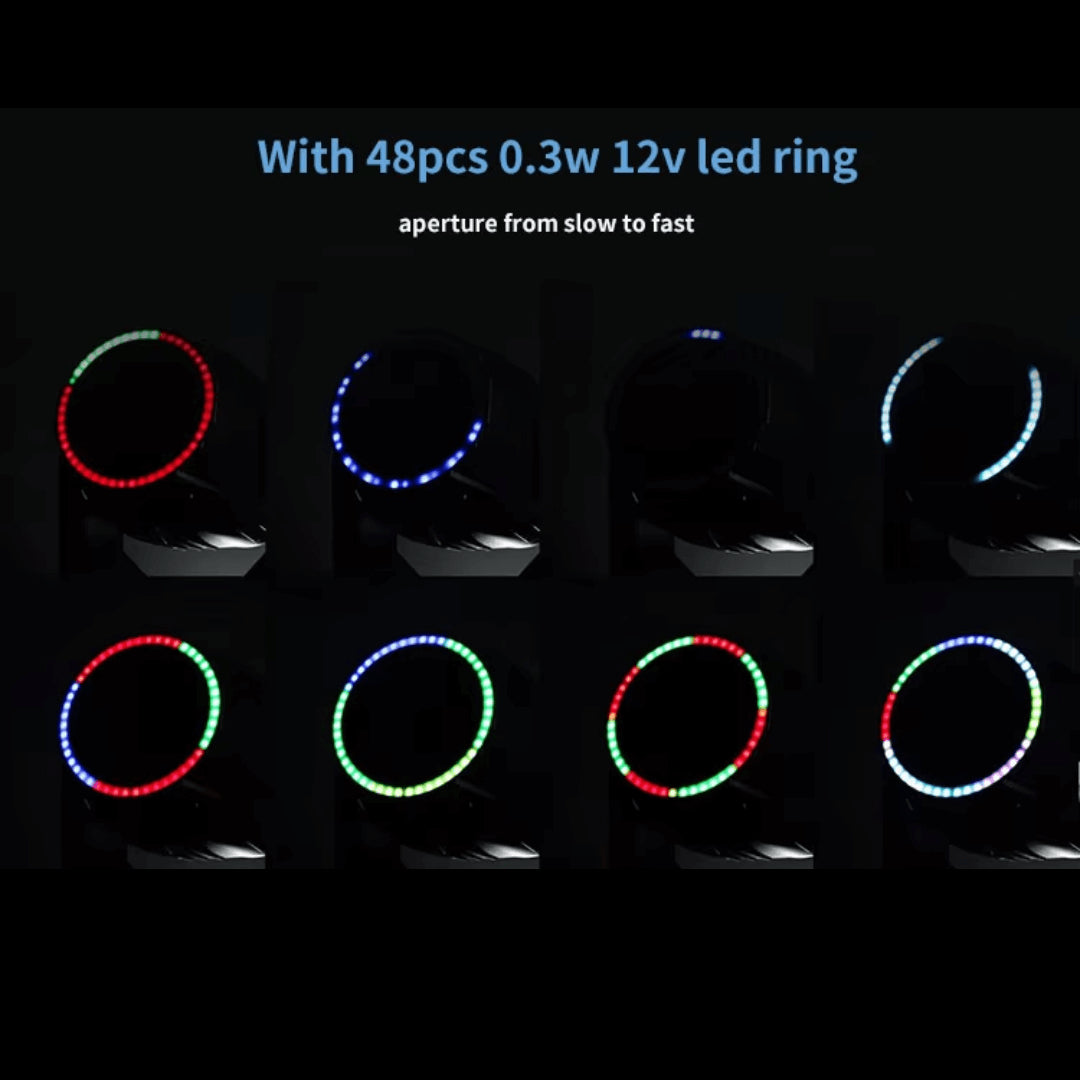

• Dynamic LED Halo Ring: Built-in 48 pcs 0.3W 12V LED ring adds a second visual layer with dedicated control channels.

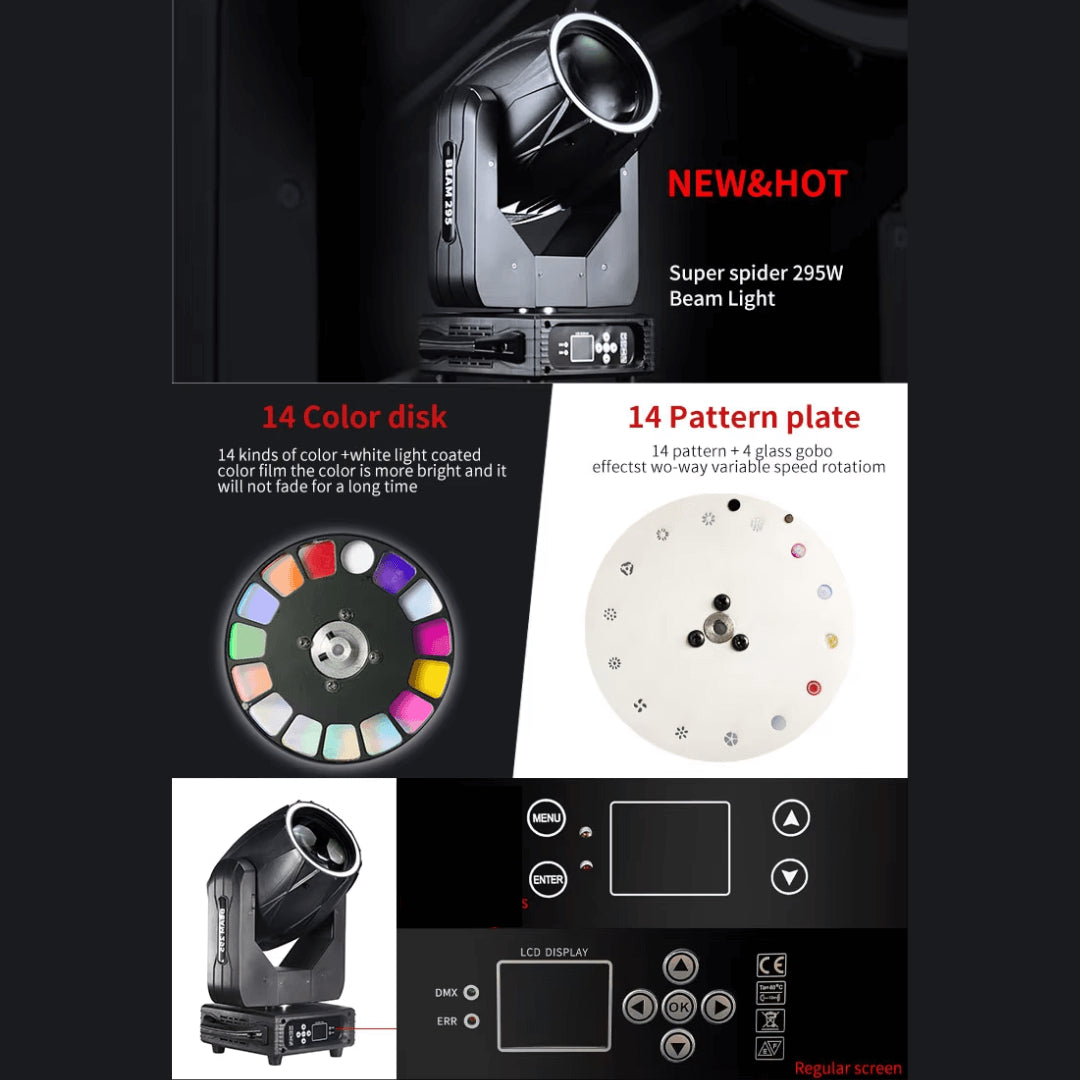

• Color Wheel Effects: Includes 14 color plates plus white light, with half-color and rainbow effects.
• Gobo Effects: 14 pattern gobos plus 4 glass gobos and white light create additional beam textures and projection looks.
• Multi-Prism System: Includes multiple prism options such as linear 6, 8+16+24, 8+16, and 48 honeycomb + 8 rotatable prism effects.
• Precise Movement: 540° pan and 270° tilt with 16-bit precision and electronic error correction for smoother positioning.
• Flexible Control Modes: Supports DMX512, master-slave, automatic mode, and sound-active programs with 16CH / 20CH / 24CH options.

Instructions

1. Mounting & Placement: Secure the fixture to a stable truss, lighting stand, or stage structure using suitable clamps and safety cables. Make sure there is enough clearance for 540° pan and 270° tilt movement.
2. Power Connection: Connect the fixture to a compatible AC110–240V, 50/60Hz power supply. Do not exceed the rated capacity of your power cables or distribution system.
3. DMX Linking: Connect your lighting console to the DMX input port. Additional fixtures can be linked through the DMX output port when needed.
4. Configuration: Use the LCD display and control buttons to set the DMX starting address, select 16CH, 20CH, or 24CH mode, and activate standalone or sound-active programs.
5. Effect Programming: Use DMX control to combine color wheel effects, gobos, prism effects, electronic focus, dimming, strobe, movement, and LED halo ring functions.
6. Maintenance: Clean lenses with a soft non-abrasive cloth to maintain output. Keep cooling vents, housing, connectors, and moving parts free from dust to reduce overheating risk and support stable operation.

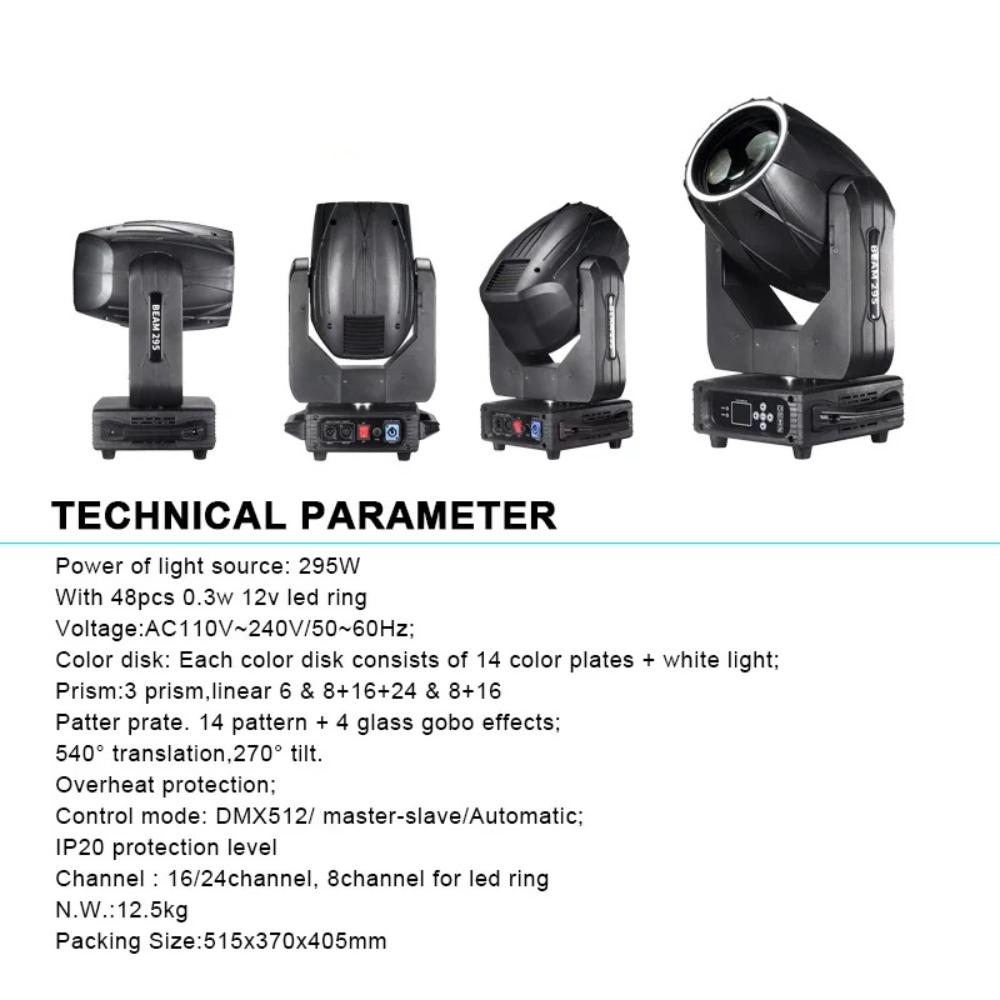

Technical Specifications
