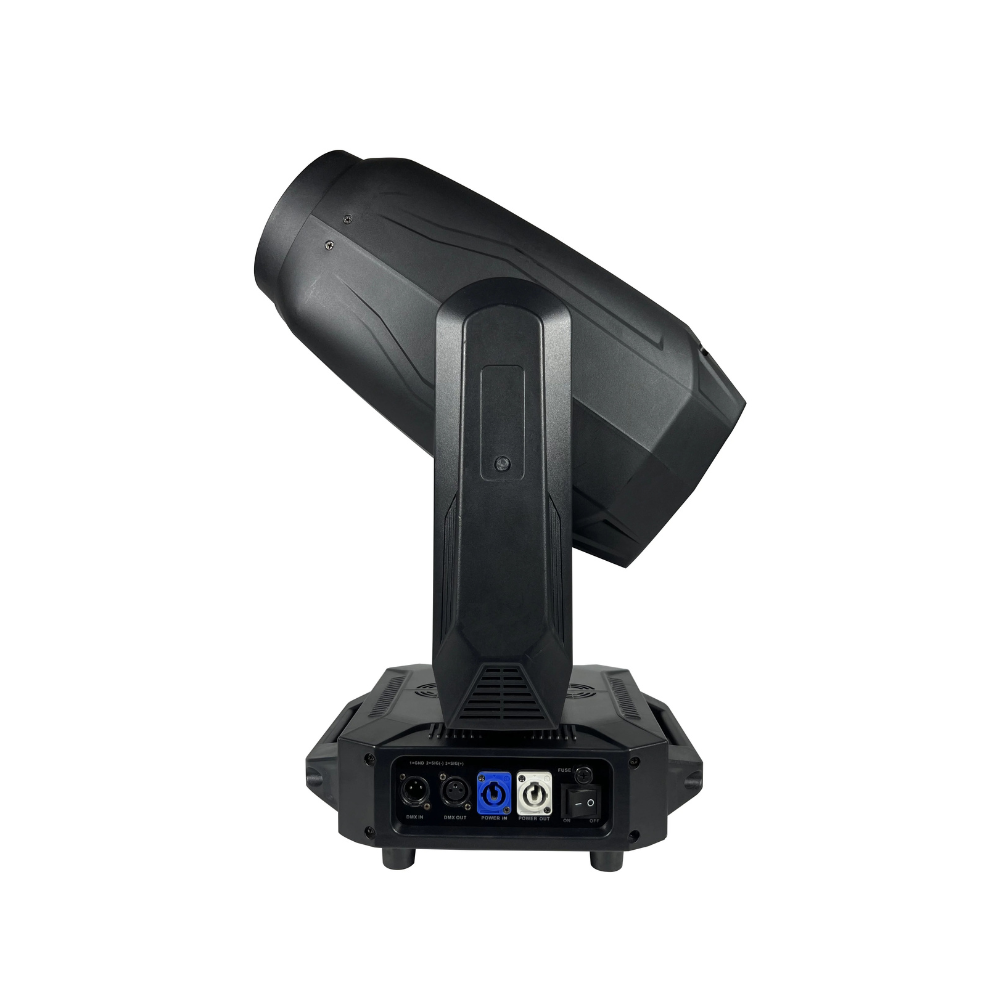

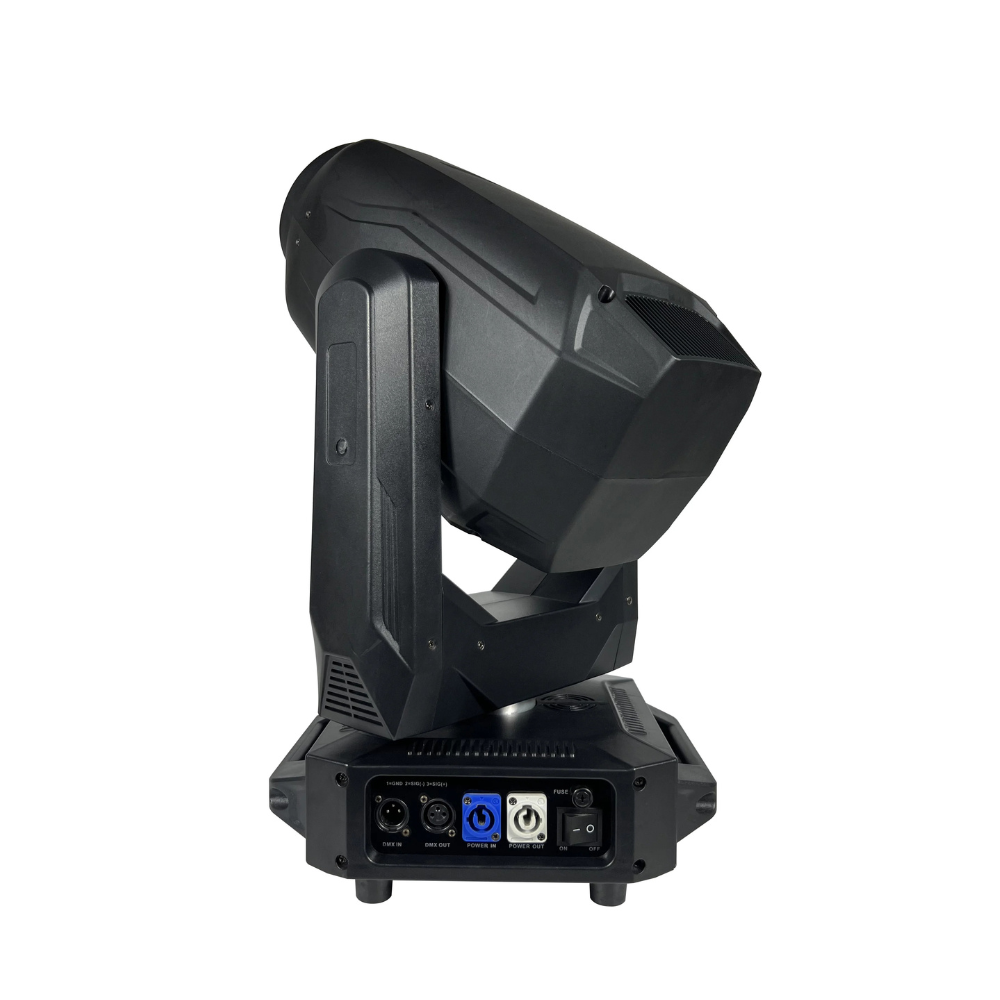

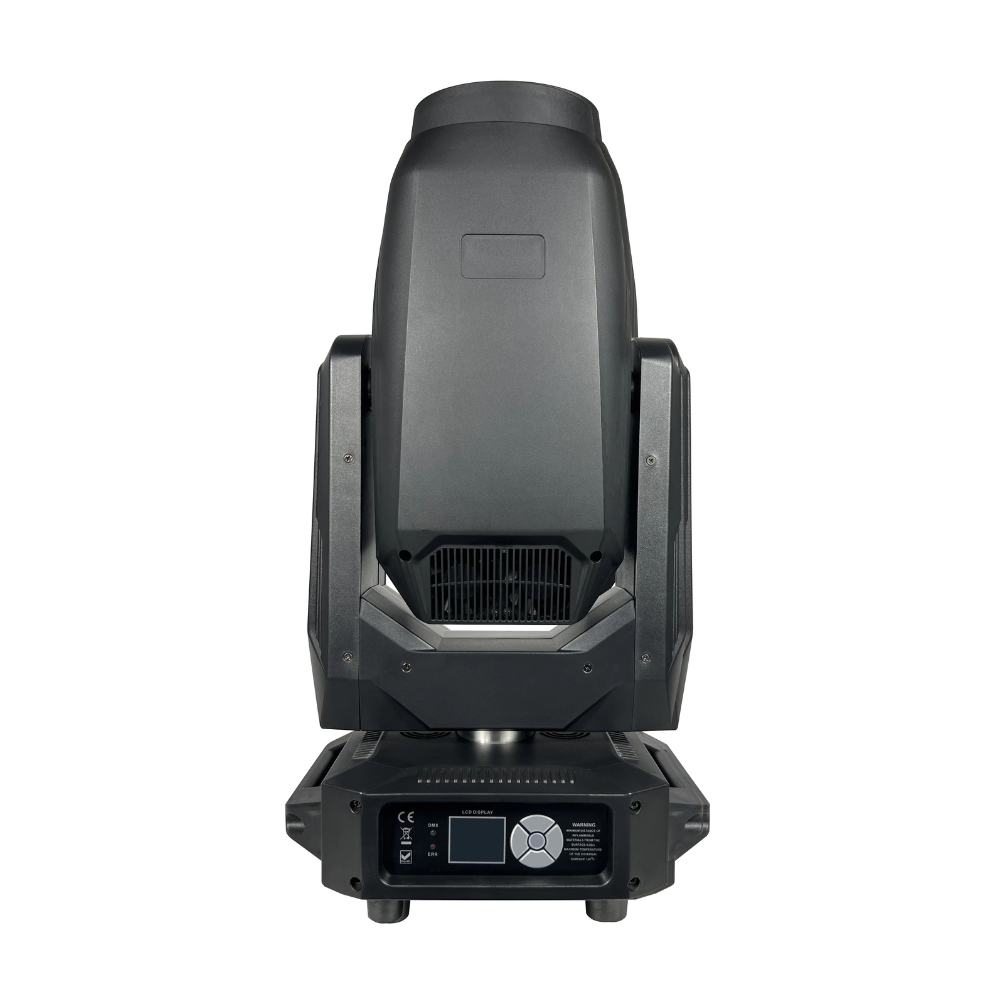

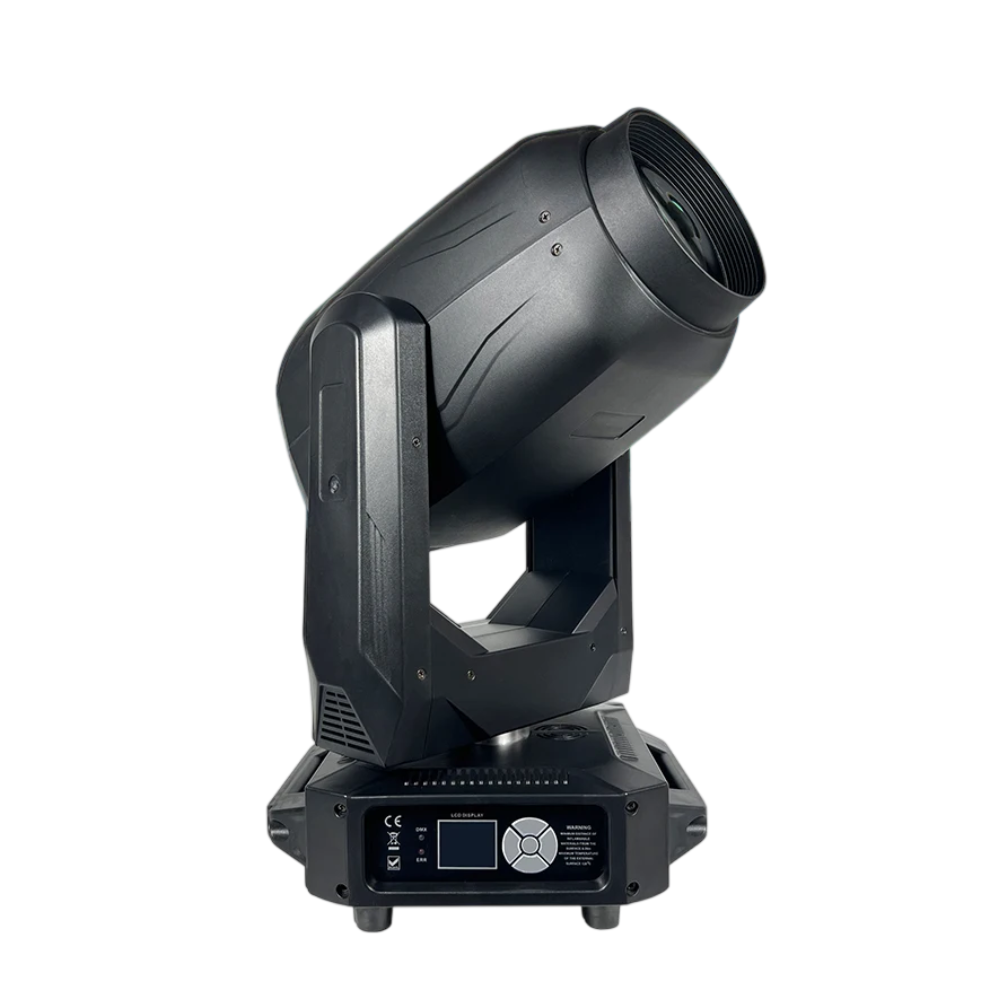

400W Profile Moving Head Light with Framing Shutters

The 400W Profile Moving Head Light with Framing Shutters is an advanced multi-functional fixture designed for precision stage lighting, banquet halls, weddings, professional DJ setups, theaters, clubs, and premium event installations. Powered by a high-brightness 400W white LED module, it delivers strong output with 8500 lumens and a crisp 9000K color temperature.

This fixture combines Beam, Spot, Wash, and Framing functions in one moving head. With independent CMY color mixing, linear CTO, fixed color plates, rotating glass gobos, electronic focusing, 16-bit pan/tilt movement, and an 8-blade framing shutter system, it gives lighting designers accurate beam shaping and theatrical-level control for professional productions.

Key Features

• 400W White LED Engine: High-brightness 400W white LED module delivers up to 8500 lumens for strong stage and event lighting output.
• BSWF Multi-Function Design: Combines beam, spot, wash, and framing functions in one professional moving head fixture.
• Advanced Color System: Independent CMY color mixing, linear CTO, and 2 color plates with 6 fixed colors plus white support flexible color control.
• Precision Framing Shutters: 8-blade controllable framing / corner-cutting system allows accurate beam shaping and geometric light control.
• Rotating Glass Gobos: 7 rotating glass patterns support bidirectional independent rotation for dynamic projection effects.
• Smooth Electronic Focus: Ultra-smooth electronic focusing helps fine-tune beam sharpness and projection clarity.
• High-Performance Movement: 540° or 630° pan and 270° tilt with 16-bit precision scanning provide smooth, accurate movement.
• Reliable Build: Aluminum and plastic housing with IP33 rating, leakage protection, and working temperature support from -25°C to 55°C.

Instructions

1. Installation: Securely rig the fixture to a suitable truss using rated clamps and safety cables, or use it in a stable ground-mount setup. Make sure the supporting structure can safely handle the 17 kg product weight.
2. Power Setup: Connect the fixture to a compatible AC100–240V, 50–60Hz power supply. Confirm that the circuit and power distribution setup can safely support the connected load.
3. Control & Programming: Connect the fixture through DMX512 to access beam, spot, wash, framing, CMY color mixing, CTO correction, gobos, focus, dimming, and movement functions.
4. Beam Shaping: Use the framing shutter channels to crop and shape the beam into precise areas or geometric looks, useful for highlighting performers, décor, scenery, or stage zones.
5. Sound-Activated Use: For simpler setups, use sound-activated mode when full DMX programming is not required.
6. Operating Environment: This fixture is rated IP33 and should be protected from heavy moisture, direct rain, and unsuitable outdoor conditions. Operate within the recommended -25°C to 55°C temperature range.
7. Maintenance: Keep lenses, gobo areas, framing shutter areas, vents, housing, connectors, and moving parts clean to maintain optical clarity and reliable operation.
