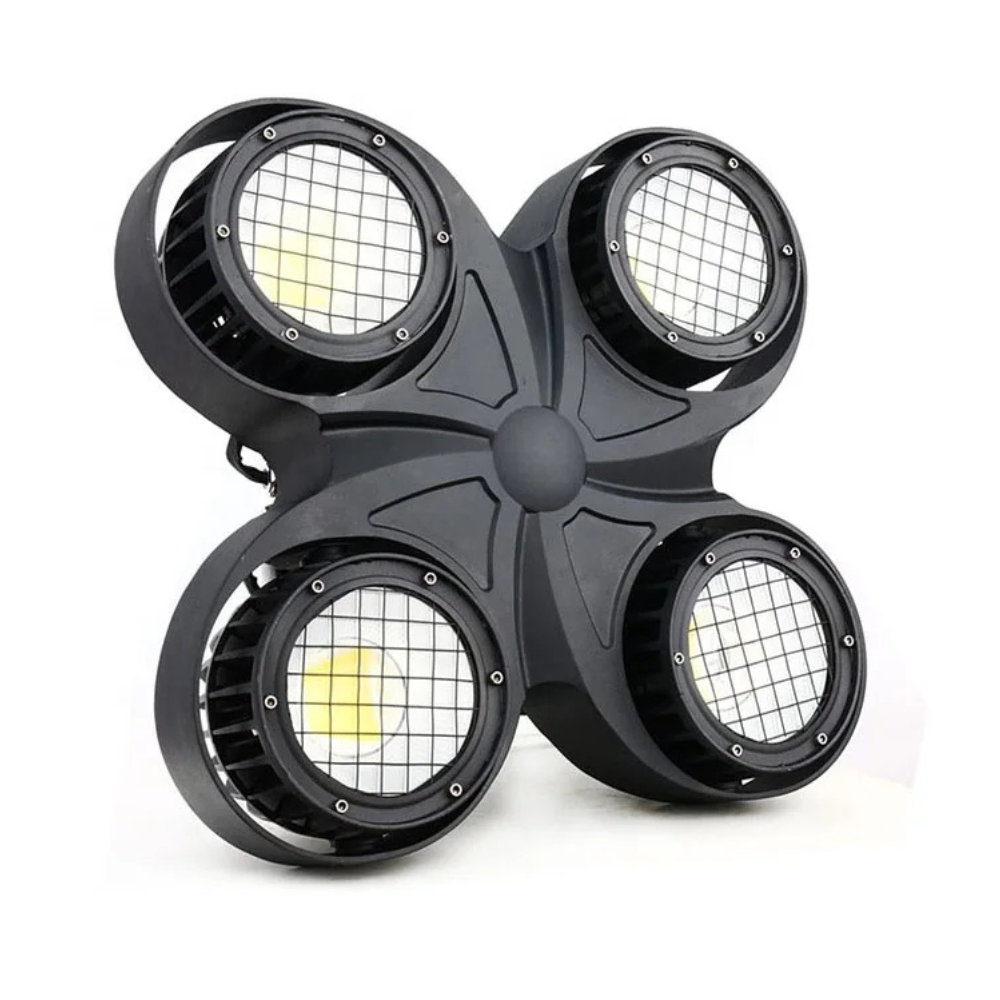

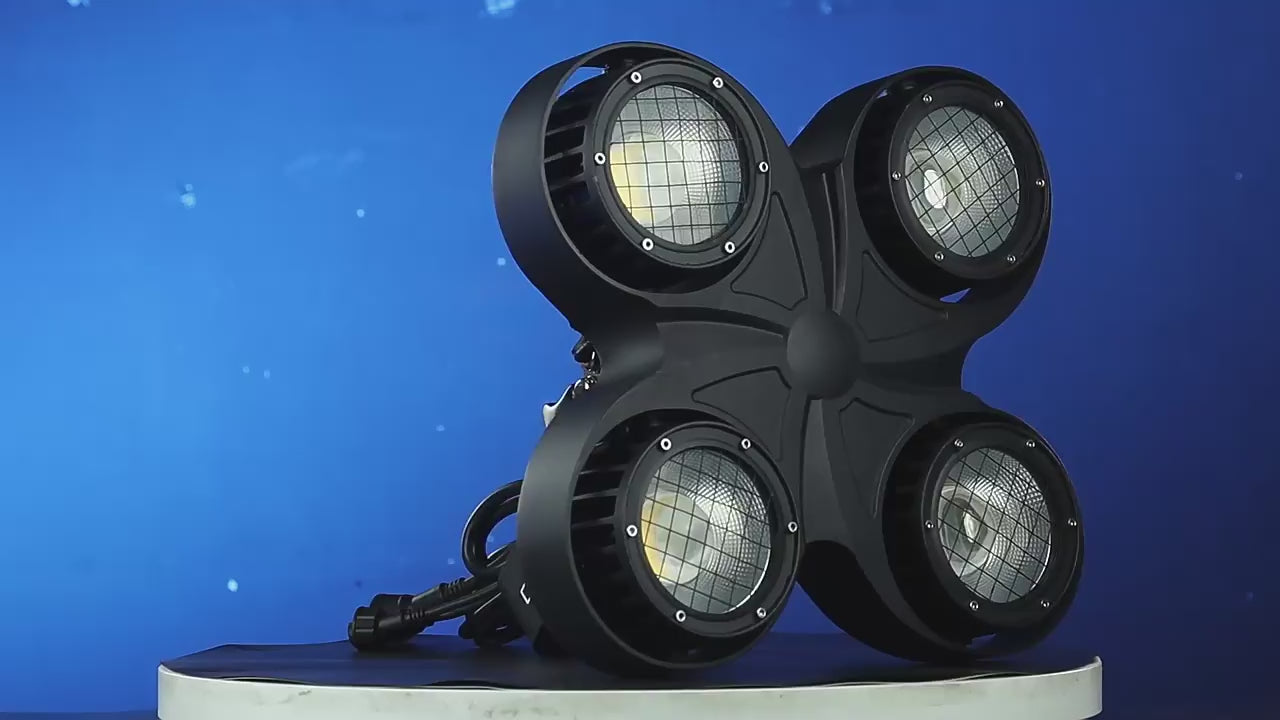

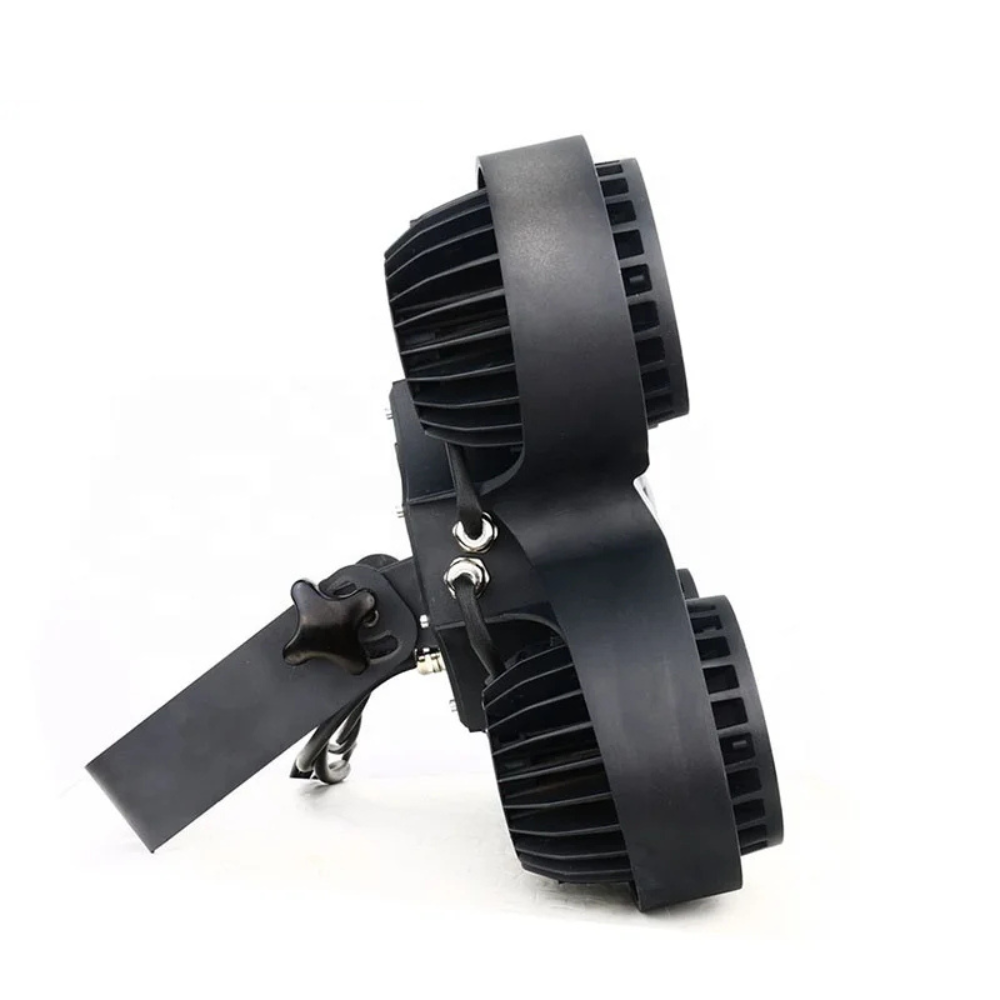

Motorized 4-Lite LED Audience Blinder - Moving Head COB Stage Light with Individual Cell Control & Pan/Tilt for Concerts & Festivals

The Motorized 4-Lite LED Audience Blinder is a high-performance stage lighting fixture designed to deliver classic audience blinder effects with the efficiency and control of LED technology. Featuring four 100W COB LEDs, this 400W fixture provides strong light output for concerts, festivals, theme parks, outdoor stages, and large-scale productions.

Built with a rugged polished aluminum alloy shell and IP65 waterproof rating, this 4-Lite blinder is suitable for demanding indoor or outdoor event environments. With individual cell control, 0–100% linear dimming, 0–25 times per second strobe, multiple DMX channel modes, sound-activated mode, automatic mode, and silent natural heat dissipation, it offers flexible performance for both blinder and strobe effects.

Key Features

• Powerful 4-Lite COB Output: Equipped with 4 x 100W COB integrated LED beads for strong audience-facing blinder and wash effects.
• Warm White / Cold White Options: Available in warm white, cold white, or optional dual-color configuration for different stage looks.
• 2-in-1 Blinder & Strobe: Works as both a traditional audience blinder and a high-intensity strobe fixture.
• Individual Cell Control: Each of the four COB LEDs can be controlled separately for chase sequences, pattern effects, and dynamic blinder looks.
• Glass Convex Lens: Optical angle of ≥45° with glass convex lenses provides wide coverage and strong light transmission.
• IP65 Waterproof Rating: Outdoor-ready housing helps protect the fixture in suitable wet or dusty event environments.
• Silent Heat Dissipation: Natural heat dissipation with intelligent temperature control supports quiet operation without fan noise.
• Flexible Control Modes: Supports DMX512, master-slave, automatic, sound-activated, and manual modes.

Instructions

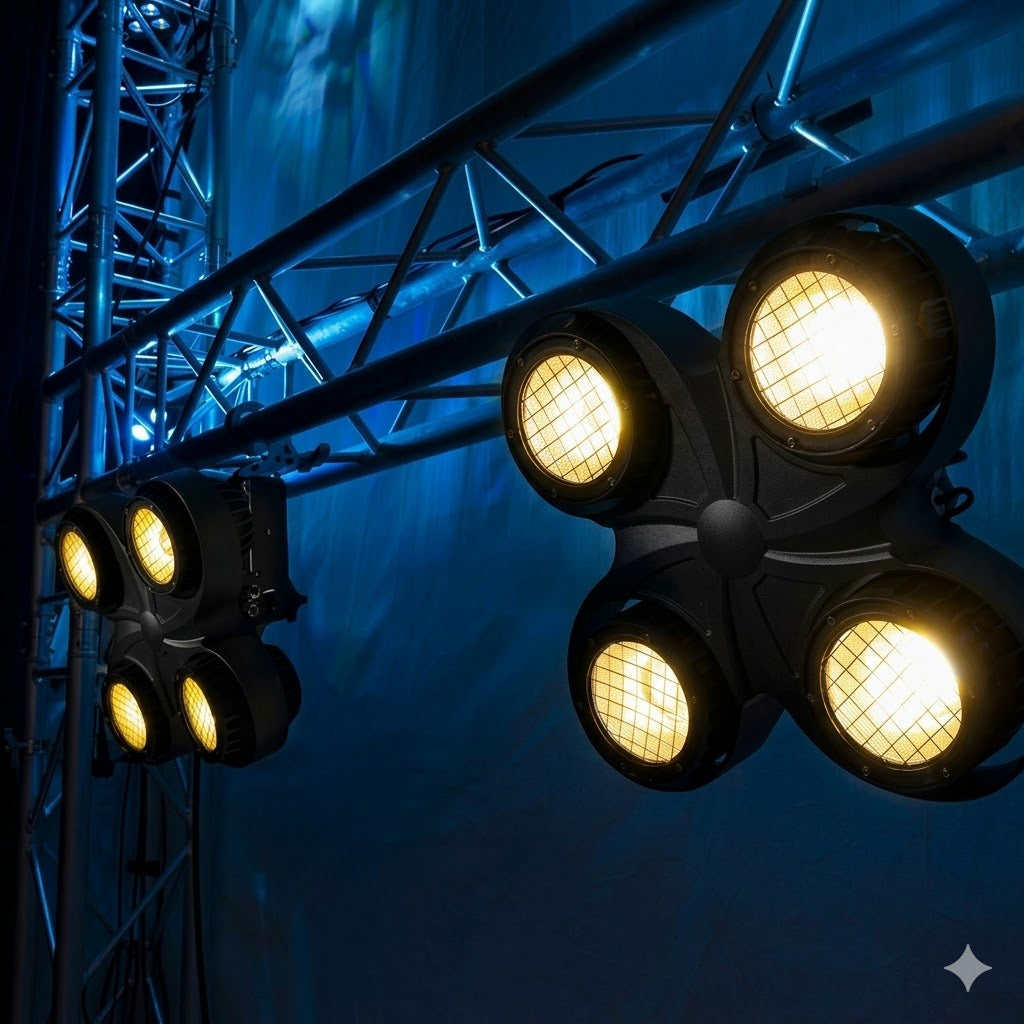

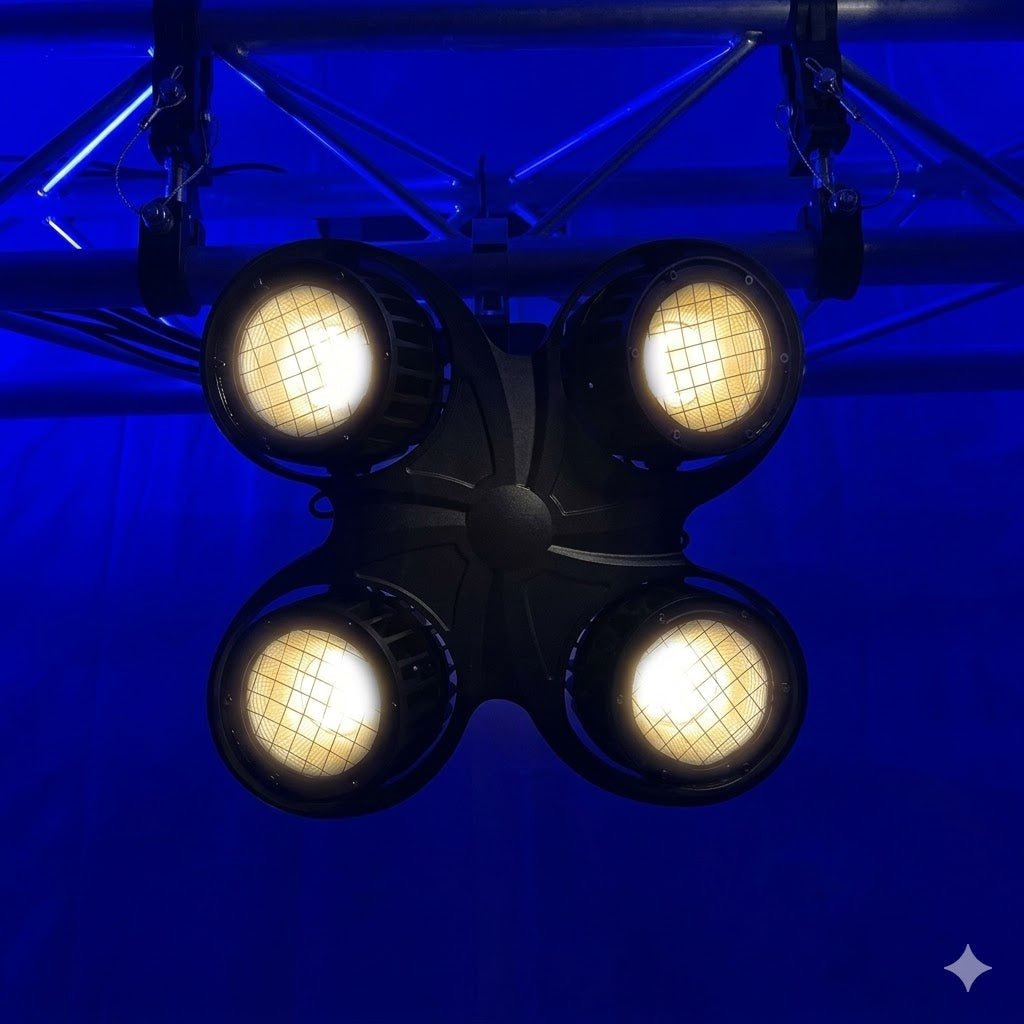

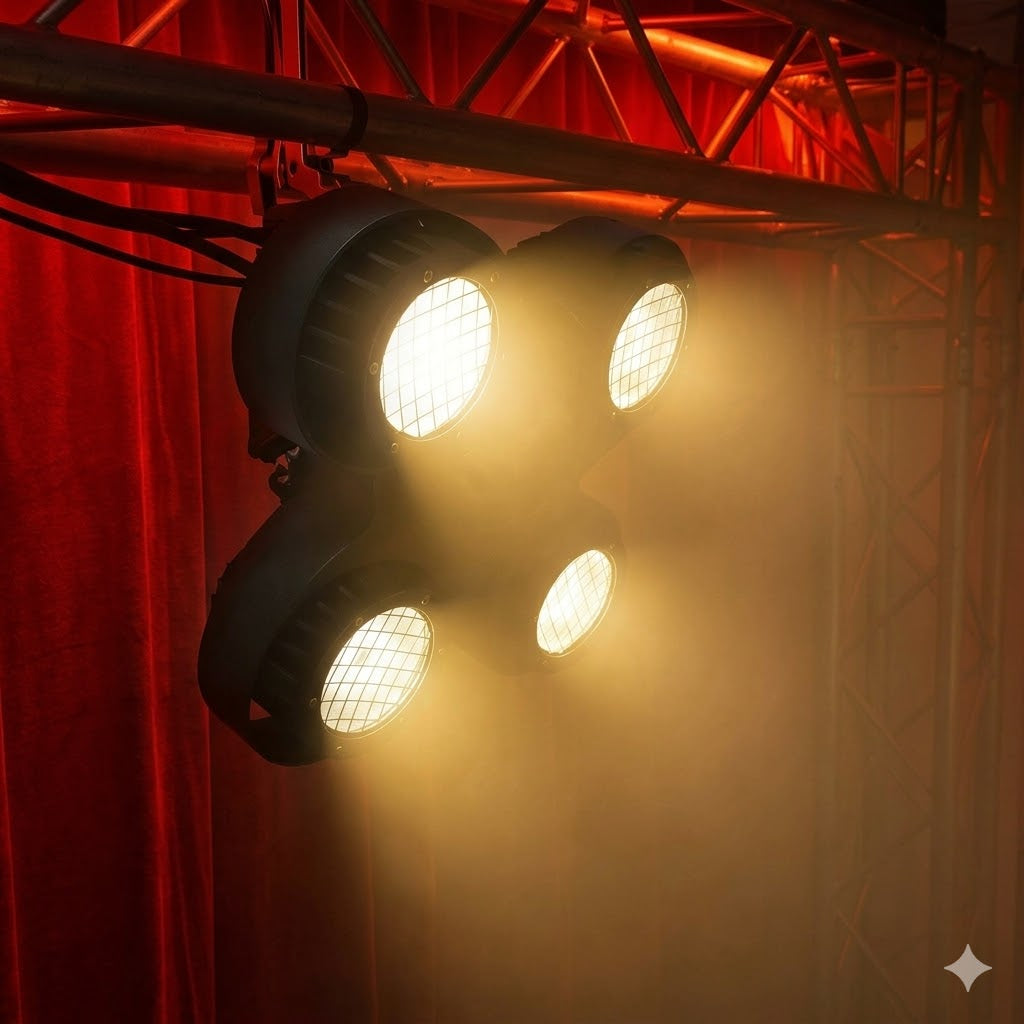

1. Installation: The fixture is designed for hanging mount installation. Use suitable clamps, brackets, and safety cables, and make sure the truss or mounting structure can safely support the 12.5 kg fixture weight.
2. Power Setup: Connect the light to a compatible AC110V / 220V, 50Hz / 60Hz power supply. Confirm that the circuit and power distribution setup can safely support the connected load.
3. DMX Control: Connect your DMX cables and choose the proper channel mode, such as 2CH, 4CH, or 12CH, depending on how much control you need over dimming, strobe, and individual COB cells.
4. Automatic & Sound Modes: Without DMX, use automatic mode for built-in programs or sound-activated mode to trigger lighting effects in response to music.
5. Outdoor Use: For outdoor operation, make sure all connectors, seals, and cables are properly secured and protected to help maintain the IP65 rating.
6. Maintenance: Keep the glass convex lenses, housing, mounting hardware, and connector areas clean. Regularly inspect seals and cables before outdoor use.

Technical Specifications
