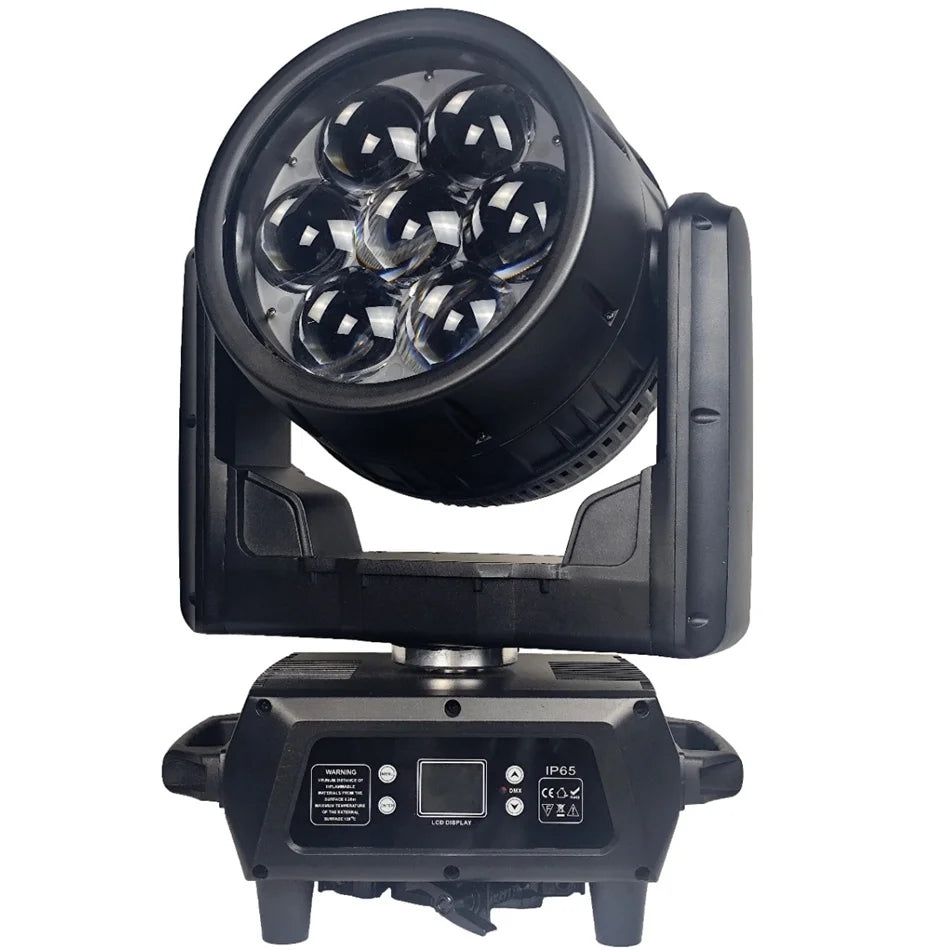

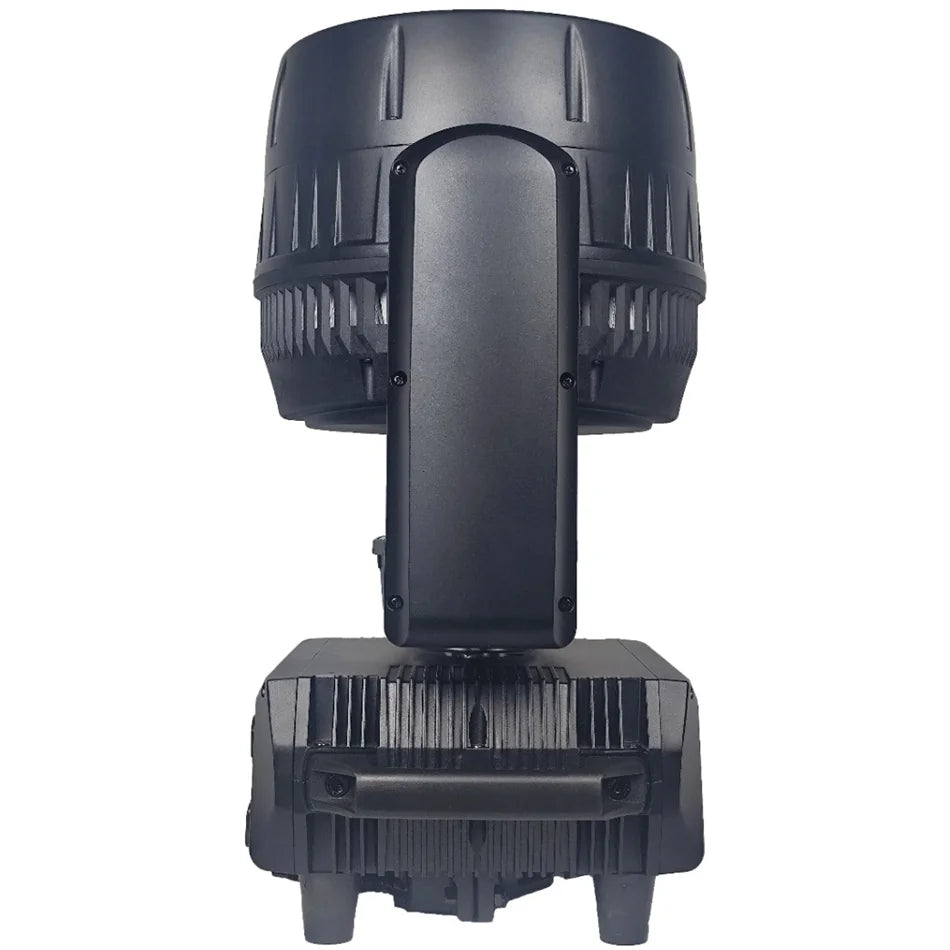

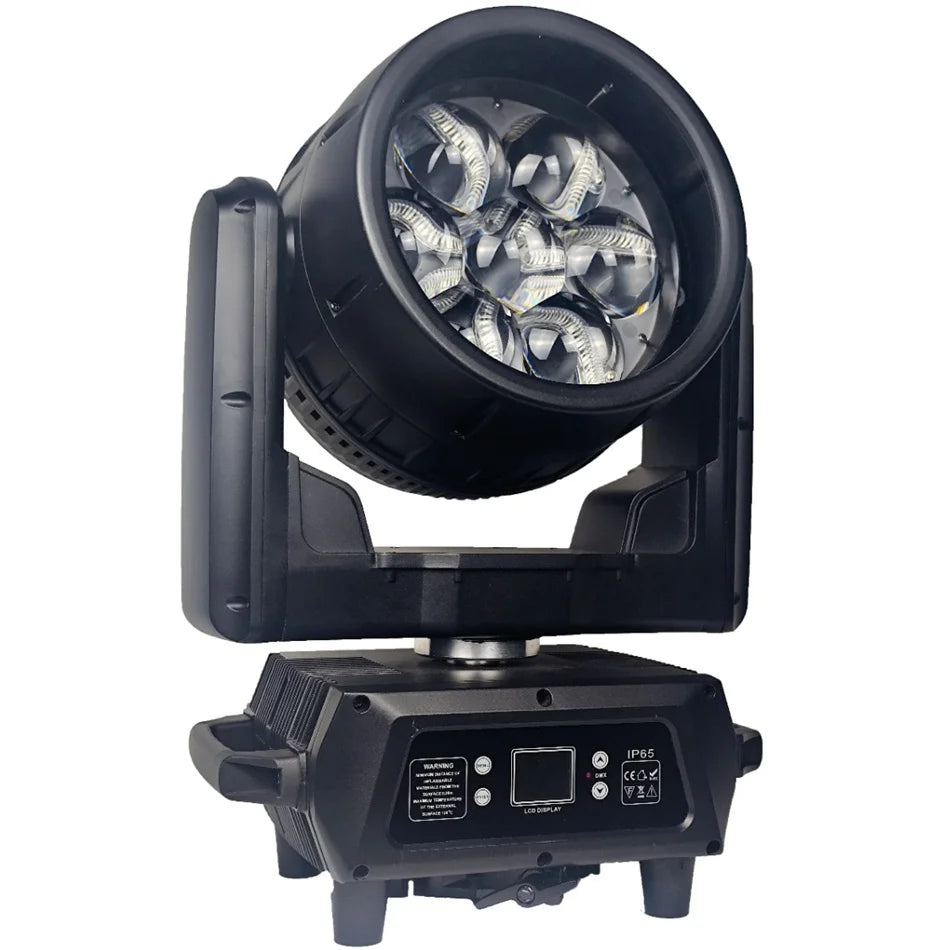

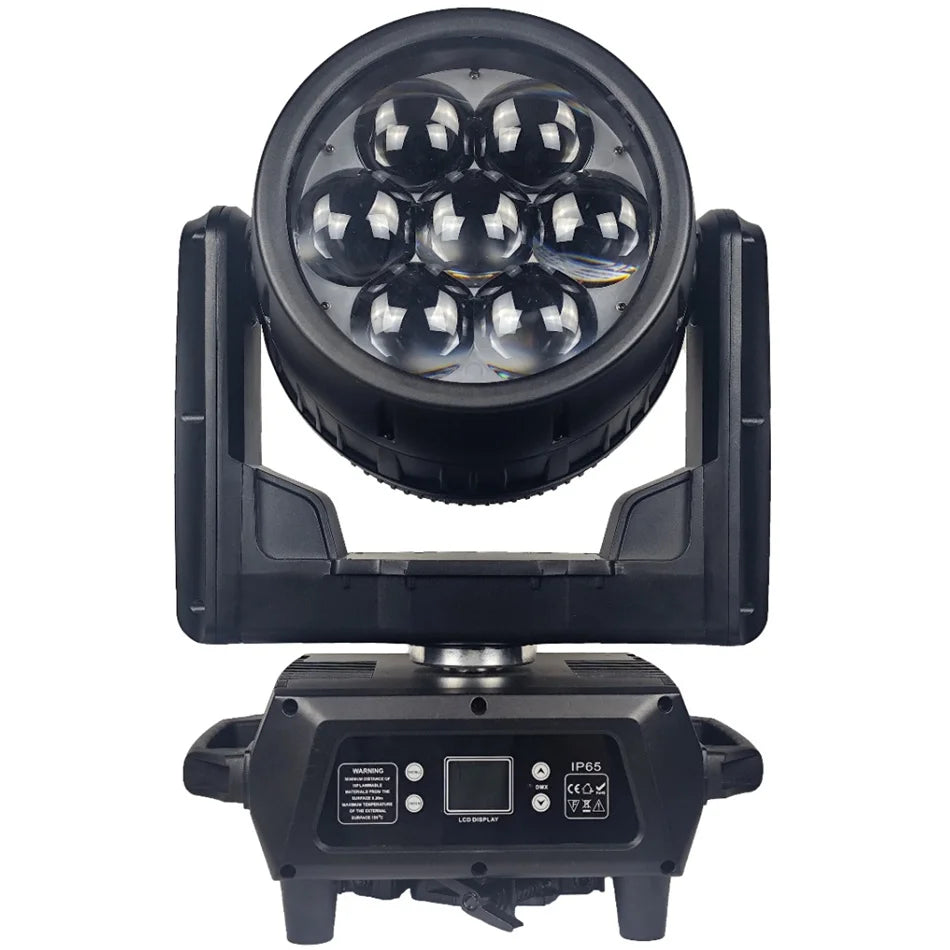

IP65 Outdoor 7x60W RGBW LED Wash Moving Head

The High Brightness Waterproof 7x60W IP65 RGBW Beam Wash Zoom Moving Head LED Light is a versatile all-weather moving head fixture designed for hotels, bars, theaters, clubs, outdoor events, and professional stage productions. Built with a durable aluminum alloy body and IP65 protection, it is designed to resist water, dust, and outdoor event conditions when properly installed.

This fixture combines 7 x 60W RGBW high-brightness main LEDs with a 12 x 3W RGB Filament Aura system, creating layered beam, wash, zoom, pixel, and eye-candy effects. With a 7°–45° zoom range, 360° infinite lens rotation, kaleidoscope effects, RGBW color mixing, built-in macros, 540° pan, 270° tilt, DMX512, RDM, Auto, and optional Art-Net support, it gives lighting designers flexible control for dynamic indoor and outdoor lighting designs.

Key Features

• Dual Light Source: Features 7 x 60W RGBW 4-in-1 main LEDs plus 12 x 3W RGB Filament Aura LEDs for layered visual effects.
• Beam, Wash & Zoom Effects: Adjustable 7°–45° beam angle allows transitions from tighter beams to wider wash coverage.
• 360° Infinite Lens Rotation: Rotating optical lens creates kaleidoscope and small-waist visual effects for dynamic stage looks.
• Advanced Color Control: Supports RGBW color mixing, tungsten emulation option, virtual color wheel, and built-in color macros.

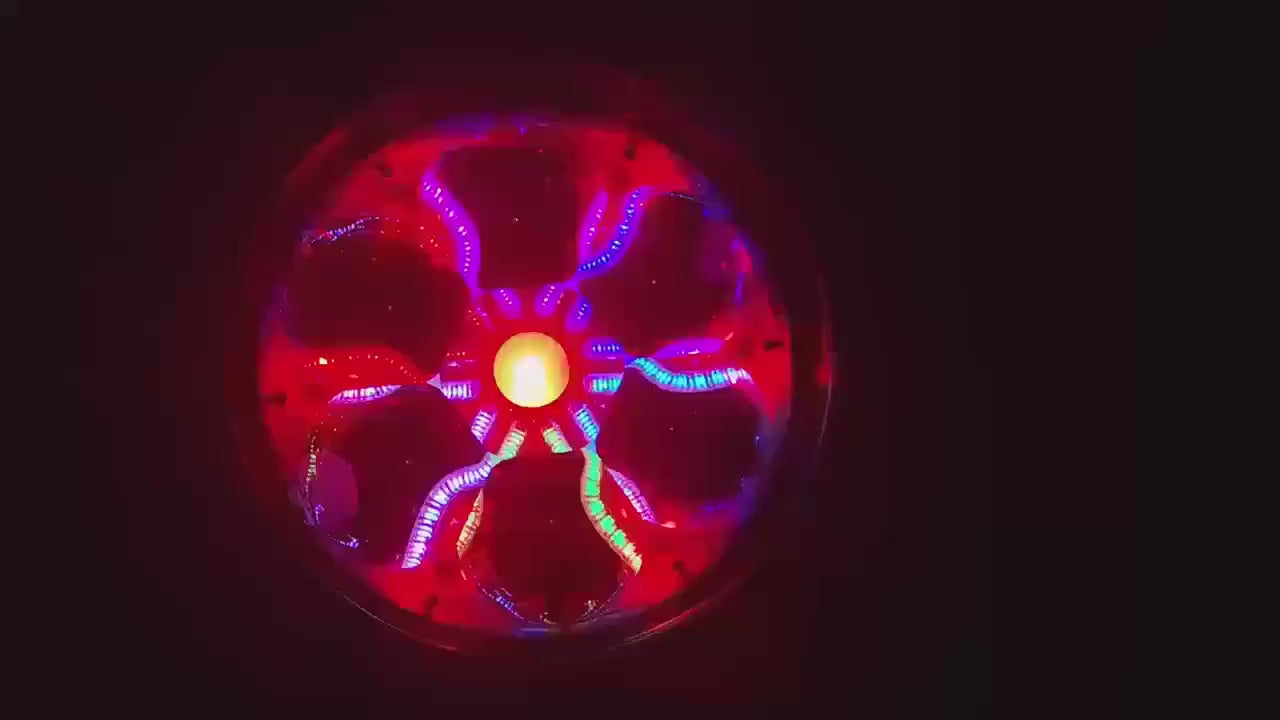

• Aura Pixel Effects: Filament Aura ring supports foreground color, background color, speed, direction, and 3D video mapping-style effects.
• Precision Movement: High-speed 540° pan and 270° tilt with 16-bit fine control provide smooth and accurate movement.
• Professional Control Options: Supports DMX512, Auto, RDM, and optional Art-Net for expanded control setups.
• IP65 Outdoor Protection: Waterproof, dust-proof, and oil-resistant housing supports outdoor use when connectors are correctly protected.

Instructions

1. Installation: Use the hanging mount style with suitable clamps, brackets, and safety cables. Make sure the rigging structure can safely support the 19.5 kg net weight and allows enough clearance for pan, tilt, and zoom movement.
2. Power Connection: Connect the fixture to a compatible AC90–240V, 50–60Hz power supply. The rated power is 550W, so confirm that your circuit and power distribution setup can safely support the connected load.

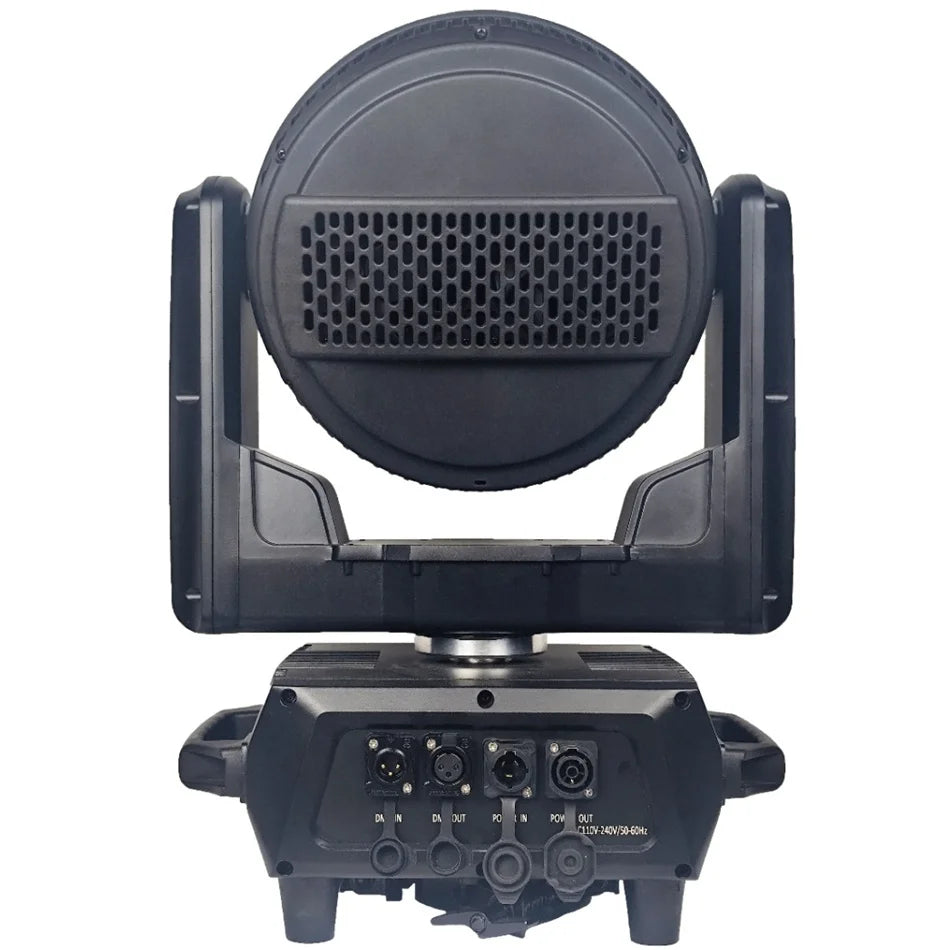

3. Signal & Protocol: Connect your control cables and choose DMX512, Auto, RDM, or optional Art-Net based on your lighting system. Select the desired channel mode from 21CH, 30CH, 36CH, 57CH, 78CH, or 93CH.
4. Dimming & Strobe: Use the four dimming curves — Linear, Square, I Square, and S Curve — for smooth 0–100% dimming. Use the 1–25Hz electronic strobe for multiple strobe effects.
5. Outdoor Use: Before outdoor operation, make sure all power, data, and unused connectors are sealed and protected to help maintain the IP65 rating.
6. Maintenance: Keep the PMMA lens, quartz glass light pipe, Aura filament area, vents, housing, brackets, and connector areas clean to maintain brightness, optical clarity, and stable cooling performance.
