7x40W LED Wash Moving Head Light - Compact Pro RGBW 4-in-1 Stage Fixture with 32-Bit Smooth Dimming & Strobe for Mobile DJ, Club & Party

Experience the power and versatility of the 7x40W LED Wash Moving Head Light (Mini Bee Eye), a compact professional fixture designed for mobile DJs, clubs, weddings, concert stages, and live event spaces. Equipped with seven high-intensity 40W RGBW 4-in-1 LEDs and an integrated auxiliary LED ring, this moving head delivers vivid color mixing, sharp beams, and smooth washes.

With a motorized zoom range from 4.5° to 45°, individual pixel control, 540° pan, 270° tilt, 32-bit linear dimming, RDM support, and multiple DMX channel modes up to 58CH, this fixture gives lighting designers flexible control for beam effects, wash coverage, color chases, matrix-style looks, and atmospheric stage visuals.

Key Features

• Powerful Zoom Wash: Features 7 x 40W RGBW 4-in-1 LEDs with an adjustable zoom range from 4.5° to 45° for both tight beams and wide washes.
• Individual Pixel Control: Each main LED can be independently controlled for color chases, matrix effects, and creative aerial patterns.
• Dynamic LED Ring: Integrated LED ring adds an extra layer of eye-candy effects and color movement around the main lenses.
• Smooth Movement: 540° pan and 270° tilt provide dynamic motion across stages, clubs, and event spaces.
• Advanced Dimming: 32-bit 0–100% linear dimming helps create smooth fades, controlled intensity changes, and clean transitions.
• Flexible Control Modes: Supports DMX512, RDM, master-slave, sound active / voice mode, and auto mode.
• Multiple DMX Profiles: 25CH, 26CH, 30CH, and 58CH modes allow basic operation or detailed pixel-mapped control.
• Durable Construction: Aluminum and ABS plastic housing supports reliable indoor stage and event use.

Instructions

1. Mounting & Placement: The fixture can be used as a free-standing unit on a stable surface or securely mounted to a truss system. Make sure the mounting structure can safely support the fixture weight and allows enough clearance for pan and tilt movement.
2. Power & Linking: Connect the fixture to a reliable AC 100–240V, 50/60Hz power supply using the power input. Use power output and DMX input/output ports only within safe load limits when linking multiple fixtures.
3. DMX Configuration: Use the LCD display and button interface to set the DMX address. Select 25CH, 26CH, 30CH, or 58CH mode depending on whether you need simple movement control or full individual pixel mapping.
4. Atmospheric Enhancement: For stronger visual beam definition, use this fixture with a suitable smoke or haze machine in a safe and controlled environment.
5. Standalone Operation: Use sound active / voice mode, auto mode, or master-slave mode for quick setups without full DMX programming.
6. Maintenance: Keep the fixture in dry indoor or covered environments. Clean lenses, LED ring areas, fans, and vents regularly to maintain brightness, cooling, and long-term performance.

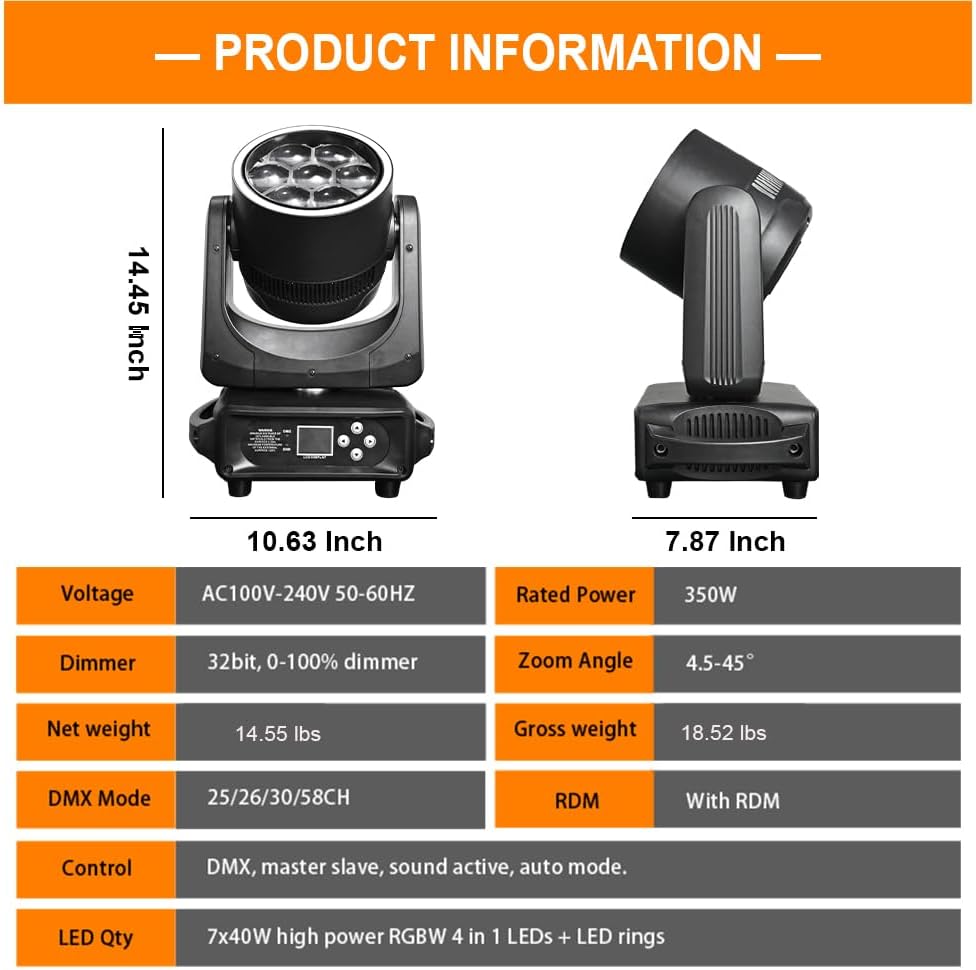

Technical Specifications
