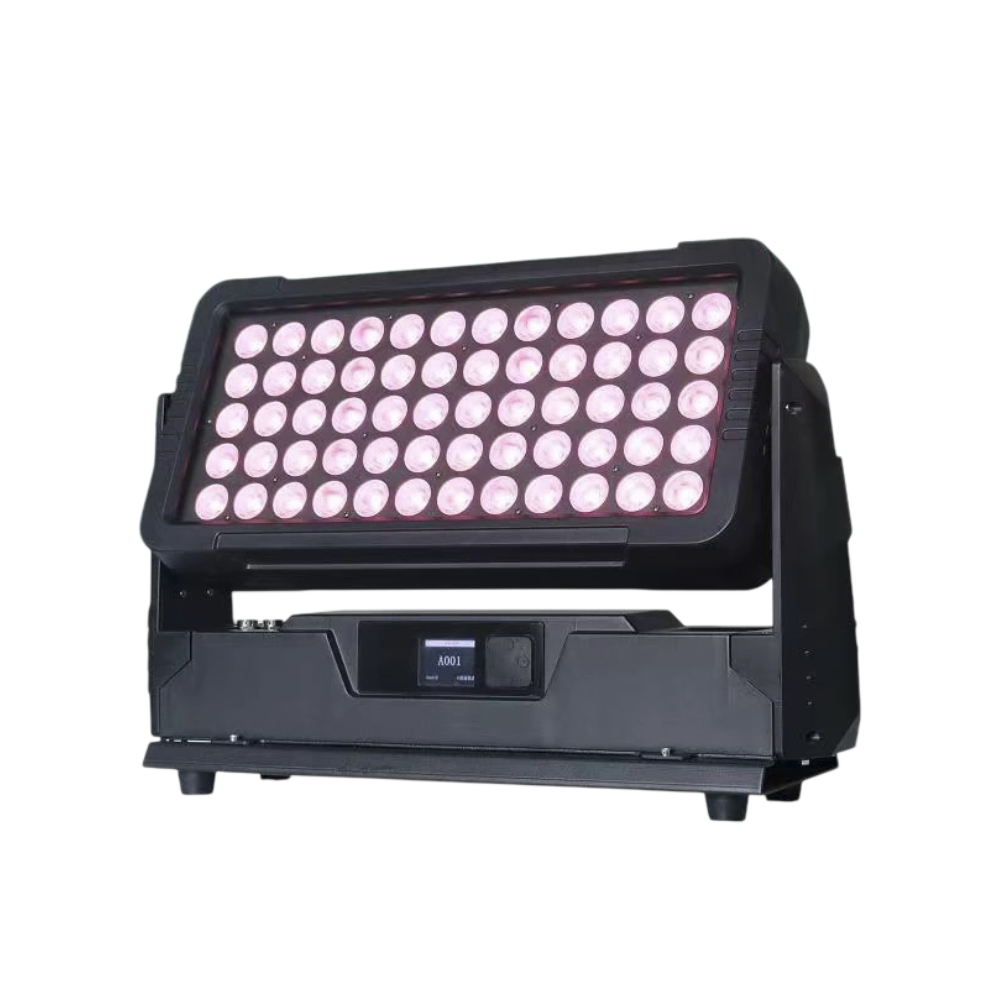

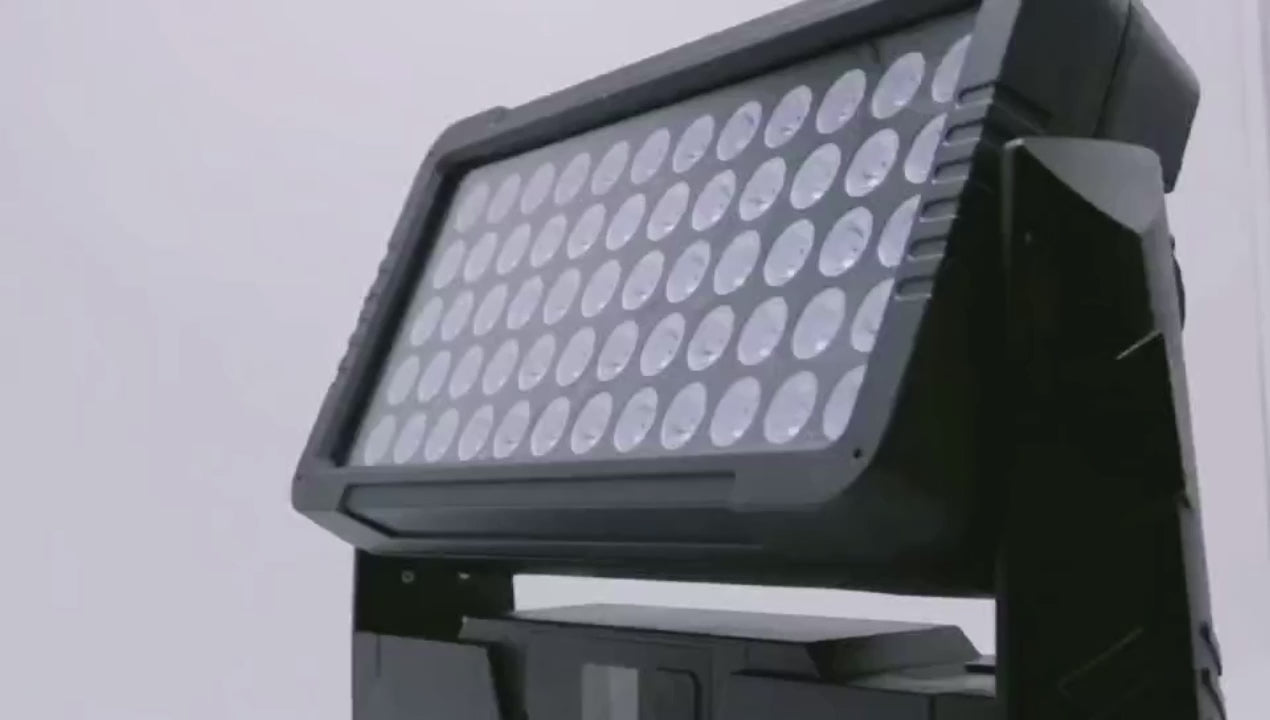

600W Outdoor Architectural LED Wash Light with Barndoors - IP65 Waterproof 60x10W RGBW Flood Fixture for Building Facades, Parks & Events

The 600W Outdoor Architectural LED Wash Light is a high-performance IP65-rated waterproof flood fixture designed for building facades, parks, outdoor stages, large events, and architectural lighting projects. Featuring a die-cast aluminum housing with a powder-coated finish, this fixture uses 60 x 10W RGBW 4-in-1 LEDs to deliver strong color mixing, high color purity, and uniform wash output.

With a 25° beam angle, adjustable barn doors, IP65 Seetronic power and DMX connectors, LCD color display, 0–100% electronic dimming, 0–20Hz strobe, DMX / Auto / Master-Slave control modes, and an auto temperature control cooling system, this outdoor wash light is built for reliable professional use in demanding event and architectural environments.

Key Features

• High-Output RGBW Light Source: Powered by 60 x 10W RGBW 4-in-1 LEDs for rich color mixing, bright wash effects, and neutral white output.
• Architectural Wash Coverage: 25° beam angle provides focused wash coverage for facades, outdoor stages, parks, and large event spaces.
• Professional Beam Shaping: Includes barn doors and filter support to help control light spill and shape the wash area more precisely.

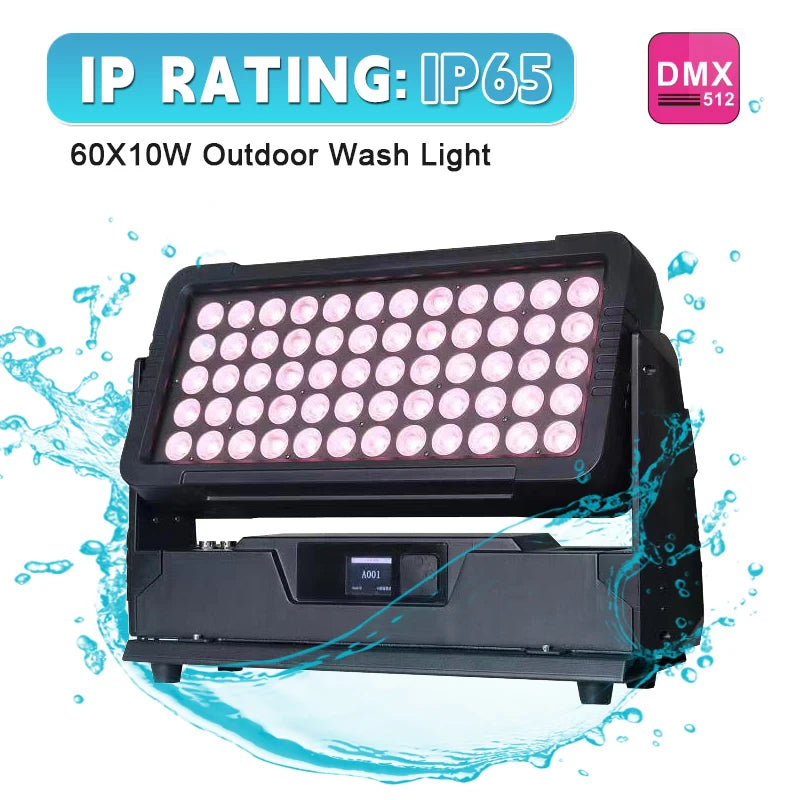

• IP65 Outdoor Protection: Waterproof sealing design supports outdoor use when power and DMX connectors are properly installed and protected.
• Advanced Cooling System: Auto temperature control system with large cooling fans helps maintain stable performance during extended operation.
• LCD Color Display: Built-in LCD color display with four touch buttons makes addressing, mode selection, and parameter adjustment easier.
• Secure Outdoor Connectivity: Uses IP65 Seetronic Powercon input/output and IP65 Seetronic DMX input/output connectors for professional installations.
• Durable Die-Cast Housing: Powder-coated die-cast aluminum body supports heat dissipation, durability, and long-term outdoor event use.

Instructions

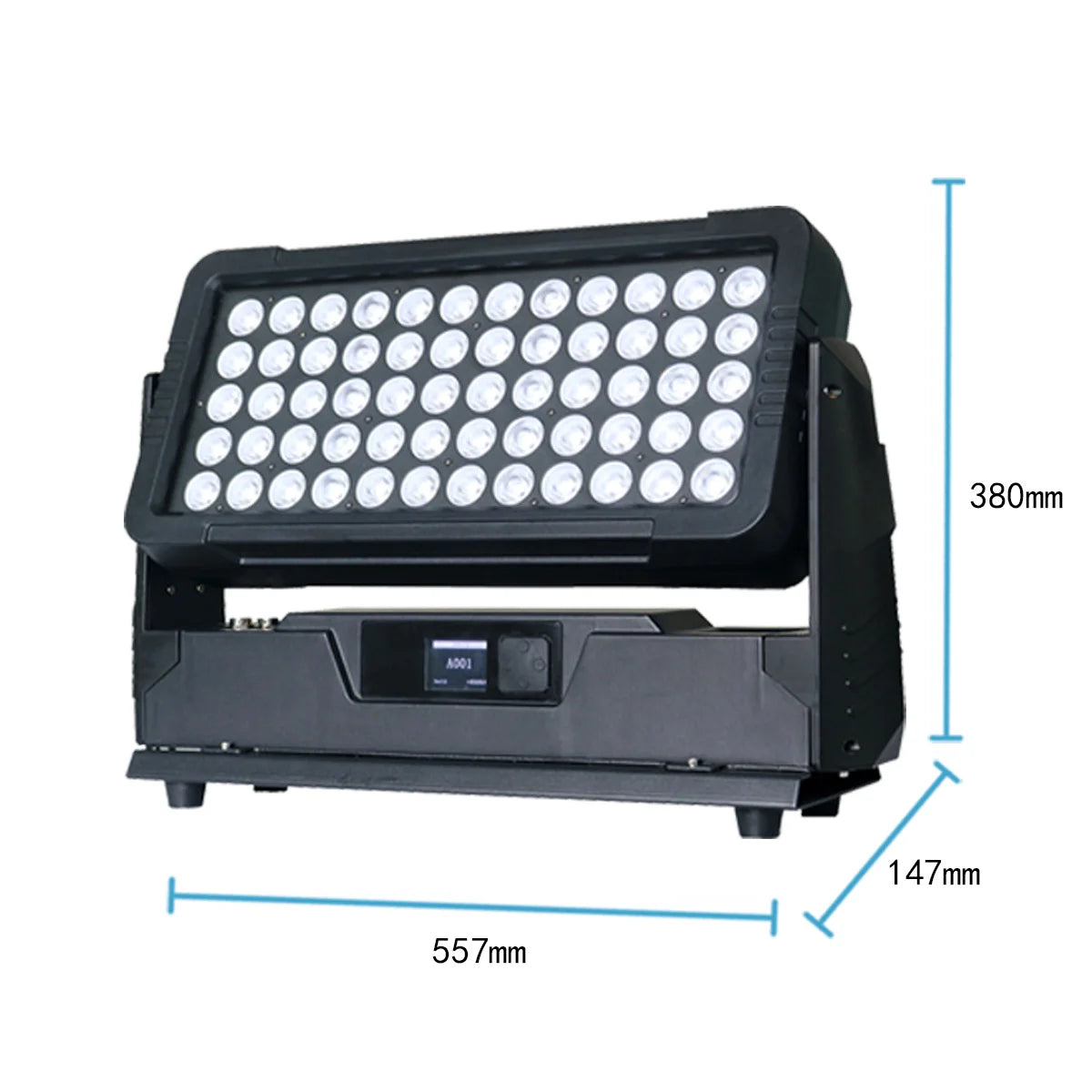

1. Installation: Secure the die-cast aluminum fixture to a suitable mounting surface, truss, or installation structure. Make sure the structure can safely support the 16 kg net weight and any additional barn door accessories.

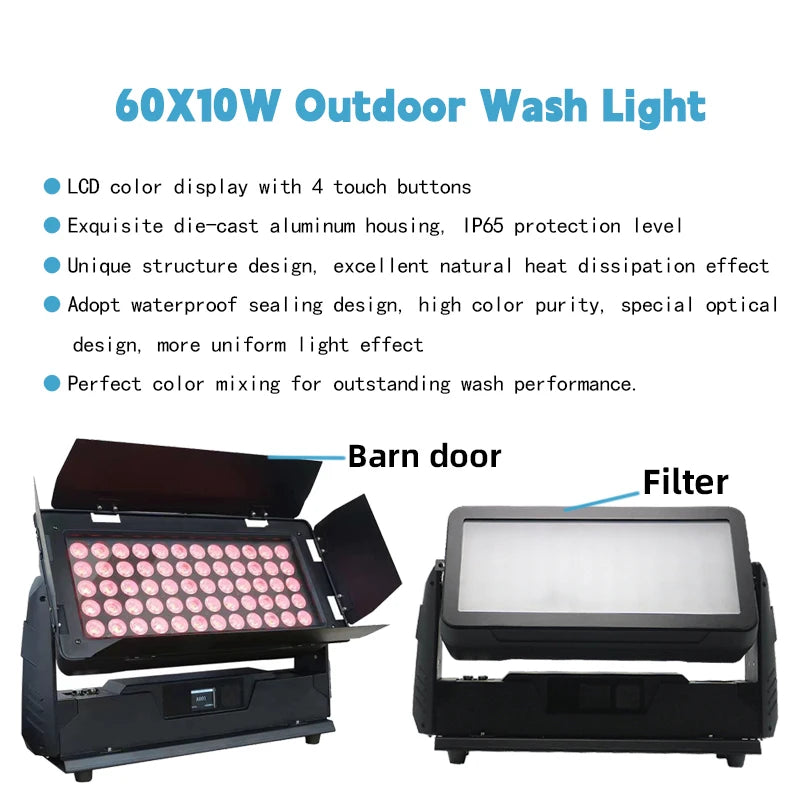

2. Barn Door Setup: Attach the barn doors to the front of the fixture when you need to reduce spill light or control the wash direction more precisely.
3. Power Connections: Connect the fixture to a reliable AC100–240V, 50/60Hz power supply using the IP65 Seetronic power connectors. The total power draw is 650W, so confirm the power circuit can safely support the load.
4. Data & Control: Connect your lighting console through the IP65 Seetronic DMX input/output connectors. Use the LCD display and four touch buttons to set the DMX address and choose 4CH, 6CH, or 9CH mode.
5. Operating Modes: Use DMX mode for programmed control, Auto mode for built-in operation, or Master-Slave mode for synchronized multi-fixture setups.
6. Outdoor Use: Before outdoor operation, confirm that all power and data connectors are fully secured and properly sealed to help maintain the IP65 rating.
7. Maintenance: Keep the lens, housing, barn doors, cooling fans, vents, and waterproof connectors clean and free from dust, debris, and water buildup.

Technical Specifications
