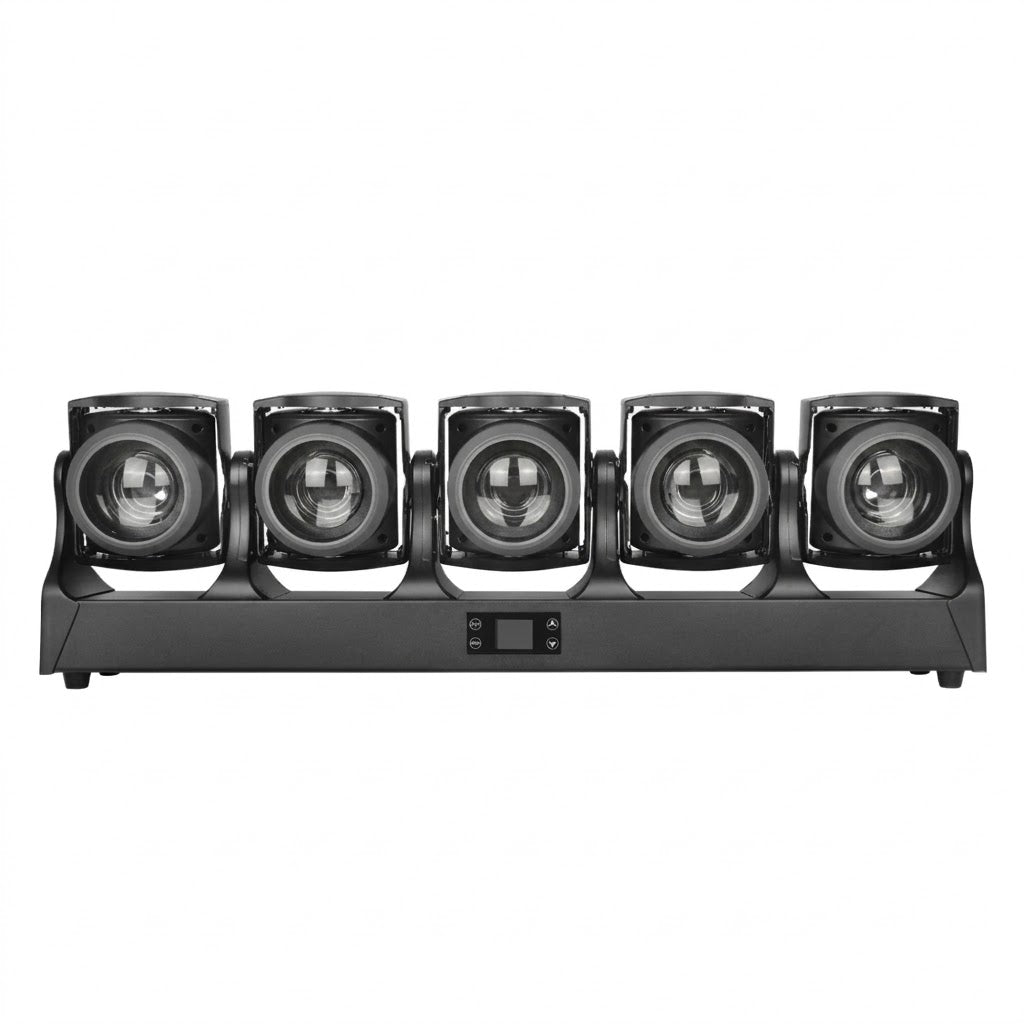

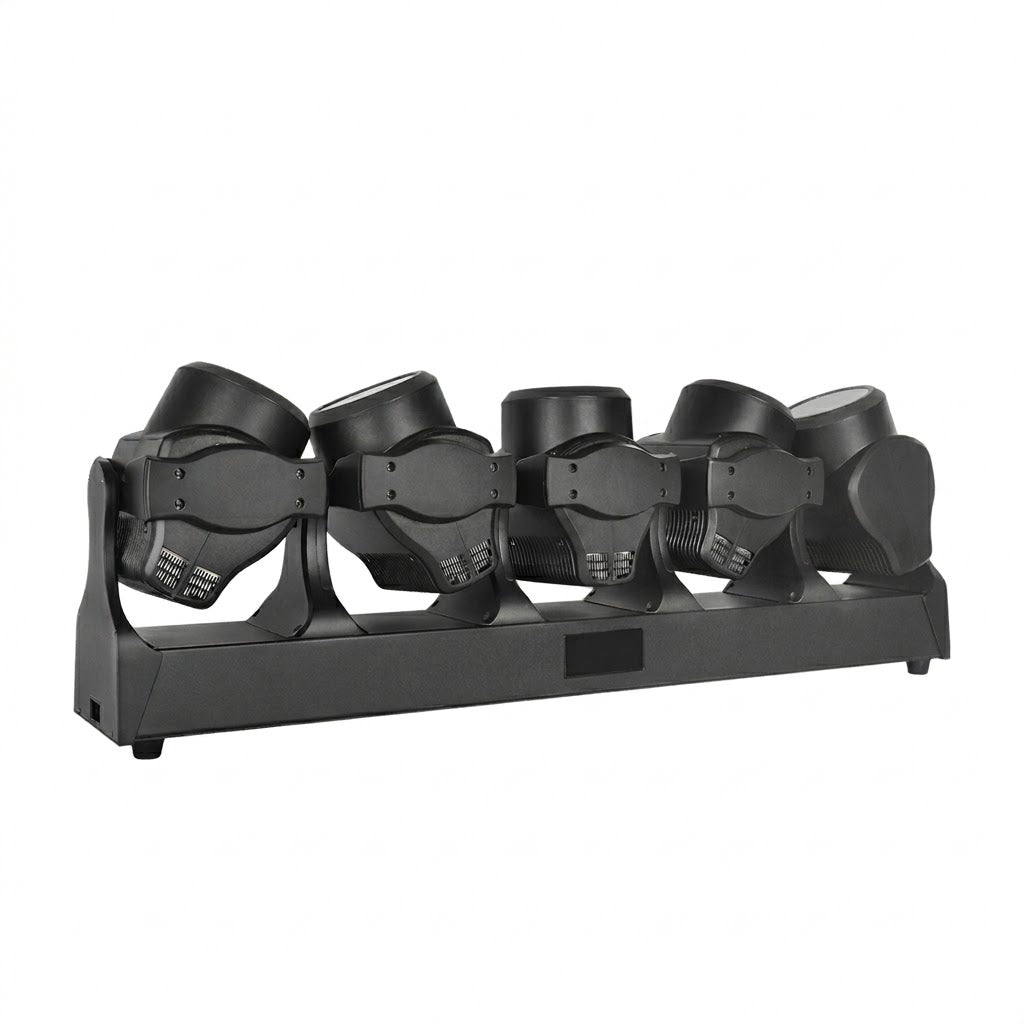

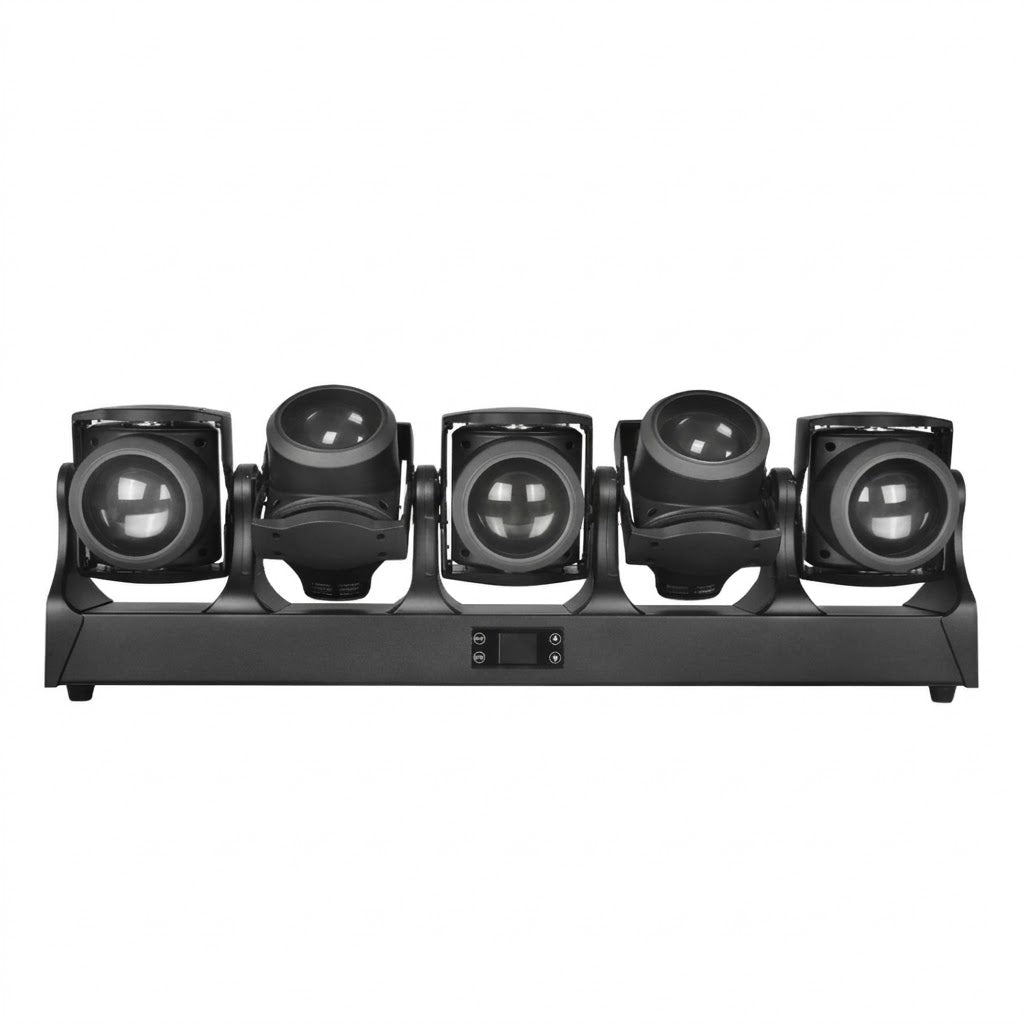

5x120W Motorized Moving Head Beam Bar

Regular price $1,298.00

Estimate delivery times: 2-5 days International.

Use code "WELCOME10" for discount 10% on your first order.

Free shipping on all orders.

Hurry up! Only 21 item(s) items left in stock

Add to wishlist Compare



Description

The 5x120W Motorized Moving Head Beam Bar is a powerful wash and beam lighting fixture designed for stages, concerts, touring productions, clubs, and professional events. Delivering up to 13,000 lumens, it combines 5 x 120W main LEDs with an outer circle of 120 x 0.5W RGB LEDs for layered beam, wash, and color effects.

With a 3°–30° beam angle, 4°–35° field angle, 16-bit pan and tilt movement, DMX512 and RDM support, multiple control channel modes up to 170CH, 0–100% dimming, variable speed strobe, and DMX firmware upgrade support, this motorized beam bar gives lighting designers flexible control for dynamic stage visuals and high-impact event lighting.

Key Features

  • High Lumen Output: Produces up to 13,000 lumens using 5 x 120W main LEDs and 120 x 0.5W RGB outer circle LEDs.
  • Layered LED Design: Combines powerful main beam LEDs with RGB outer circle LEDs for richer eye-candy and color effects.
  • Motorized Beam & Wash Control: Adjustable 3°–30° beam angle and 4°–35° field angle support both tight beams and wider wash looks.
  • Smooth Pan & Tilt: 62° pan and 225° tilt with 16-bit resolution provide precise motorized movement.
  • Professional DMX/RDM Control: Supports DMX512 and RDM protocols for console programming and remote fixture management.
  • Multiple Channel Modes: 21CH, 41CH, 71CH, 75CH, 85CH, and 170CH options allow simple control or detailed pixel/effect programming.
  • Dynamic Effects: Includes 0–100% dimming, variable speed strobe, color mixing, and macro effects.

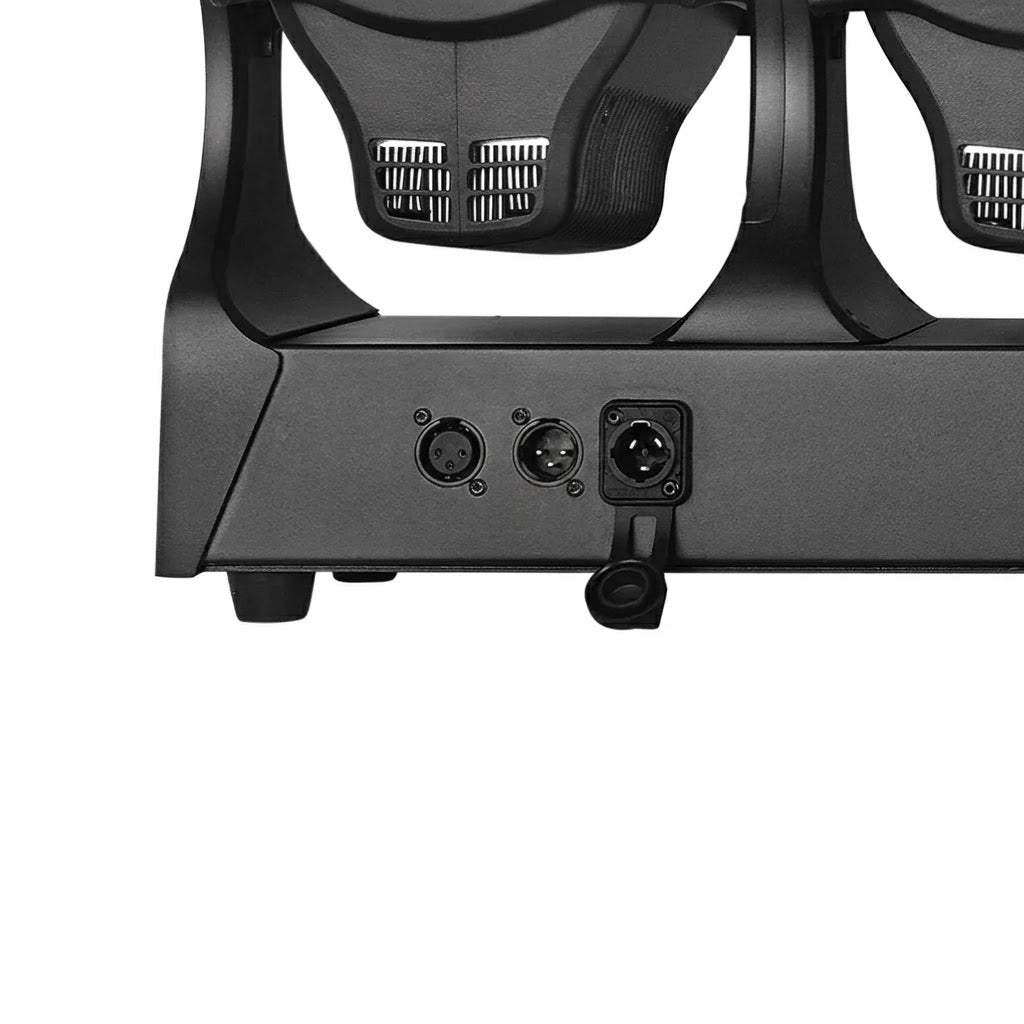

  • Stage-Ready Construction: IP33 protection rating, waterproof True1 power connectors, 3-pin XLR data ports, and DMX firmware upgrade support.

Instructions

  1. Installation: Mount the fixture horizontally or vertically using the included Omega brackets and safety cable. Make sure the rigging structure can safely support the 26.6 kg net weight.
  2. Power Connection: Connect the unit to a compatible AC100–240V, 50/60Hz power supply using the waterproof True1 power connector. The power consumption is 935W, so confirm that the circuit and power distribution setup can safely support the load.

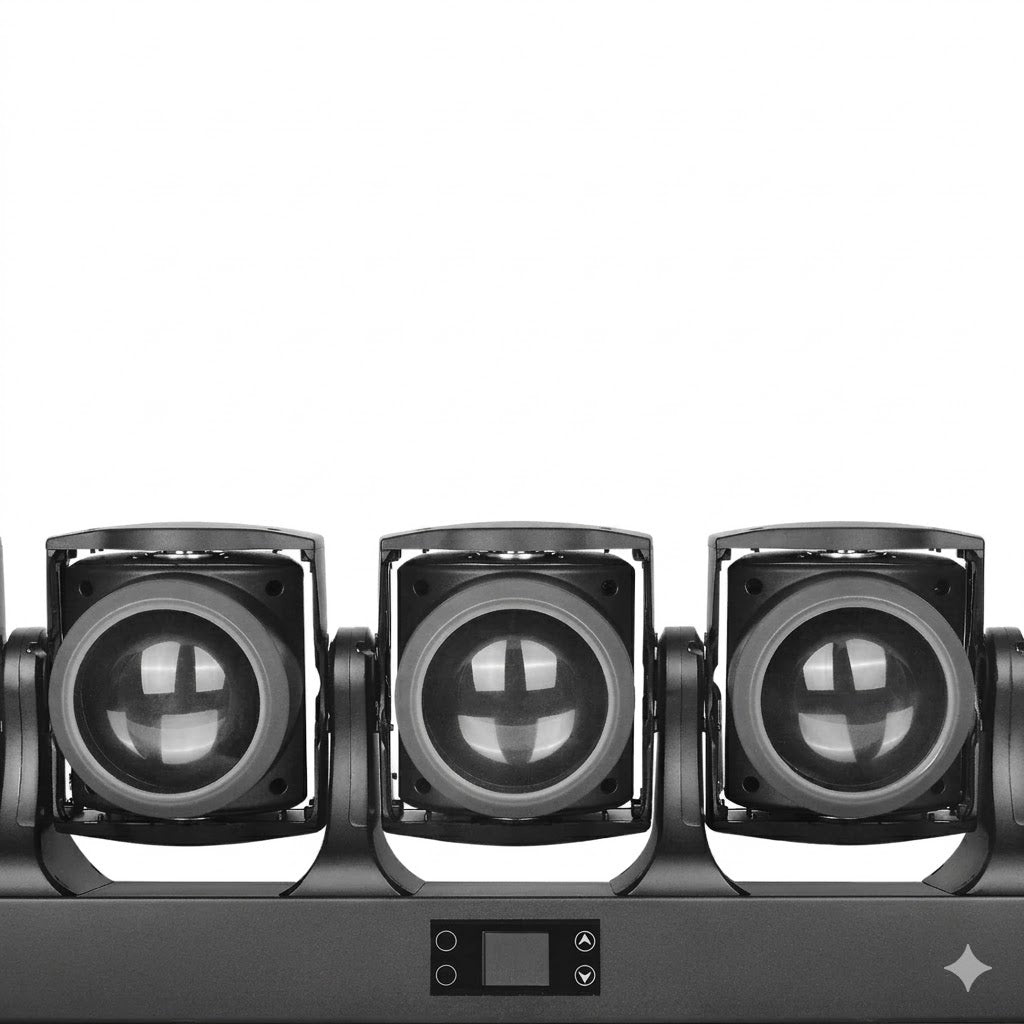

  3. Data Setup: Connect your lighting controller through the 3-pin XLR data input/output ports. Use the LCD display and 4-button touch control panel to set the DMX address and channel mode.
  4. Operation: Use your DMX console to control zoom, dimming, strobe, color mixing, LED macros, and 16-bit pan/tilt movement for beam, wash, and eye-candy effects.
  5. Firmware Upgrade: When supported, firmware can be updated through the DMX link. Follow the correct update procedure from the fixture documentation.
  6. Maintenance & Safety: Operate within the recommended ambient temperature range of -10°C to 40°C. The surface may become hot during use, so allow adequate cooling time before handling. Keep lenses, vents, housing, brackets, and connectors clean.

Technical Specifications

Product Name 5x120W Motorized Moving Head Beam Bar Model Number EPL 5120
Input Voltage AC100–240V, 50/60Hz Power Consumption 935W
Main Light Source 5 x 120W LEDs Outer Circle Light 120 x 0.5W RGB LEDs
Total Lumen Output 13,000 lumens Life Expectancy 20,000 hours
Beam Angle 3°–30° Field Angle 4°–35°
Pan Movement 62°, 16-bit resolution Tilt Movement 225°, 16-bit resolution
Protocols DMX512, RDM Control Channels 21CH / 41CH / 71CH / 75CH / 85CH / 170CH
Dimming 0–100% Strobe Effects Variable speed
Power Connectors Waterproof True1 connector input/output Data Connectors 3-pin XLR input/output
Protection Rating IP33 Operating Temperature -10°C to 40°C
Size 1002 x 196 x 334 mm Net Weight 26.6 kg
Product Name
5x120W Motorized Moving Head Beam Bar
Model Number
EPL 5120
Input Voltage
AC100–240V, 50/60Hz
Power Consumption
935W
Main Light Source
5 x 120W LEDs
Outer Circle Light
120 x 0.5W RGB LEDs
Total Lumen Output
13,000 lumens
Life Expectancy
20,000 hours
Beam Angle
3°–30°
Field Angle
4°–35°
Pan Movement
62°, 16-bit resolution
Tilt Movement
225°, 16-bit resolution
Protocols
DMX512, RDM
Control Channels
21CH / 41CH / 71CH / 75CH / 85CH / 170CH
Dimming
0–100%
Strobe Effects
Variable speed
Power Connectors
Waterproof True1 connector input/output
Data Connectors
3-pin XLR input/output
Protection Rating
IP33
Operating Temperature
-10°C to 40°C
Size
1002 x 196 x 334 mm
Net Weight
26.6 kg

Shipping

Enjoy free standard shipping on all orders. Most orders are processed within 0–1 business days. U.S. delivery usually takes 2–5 business days after shipment, while international delivery typically takes 7–21 business days.

Some items may ship separately depending on product availability or warehouse location. For return requests, damaged items, missing parts, or order issues, please contact our support team within 30 days of delivery.

Return Policies

We accept eligible returns within 30 days after delivery. To start a return, please contact our support team first and wait for return instructions before sending any item back.



Returned products must be unused, uninstalled, undamaged, and in the original packaging with all accessories, manuals, cables, parts, and included items. Used, installed, customized, consumable, or incomplete products may not be eligible for return.



For non-defective returns, the customer is responsible for return shipping costs. Approved returns may be subject to a 20% restocking fee. Once the returned item is received and inspected, approved refunds will be issued to the original payment method.
