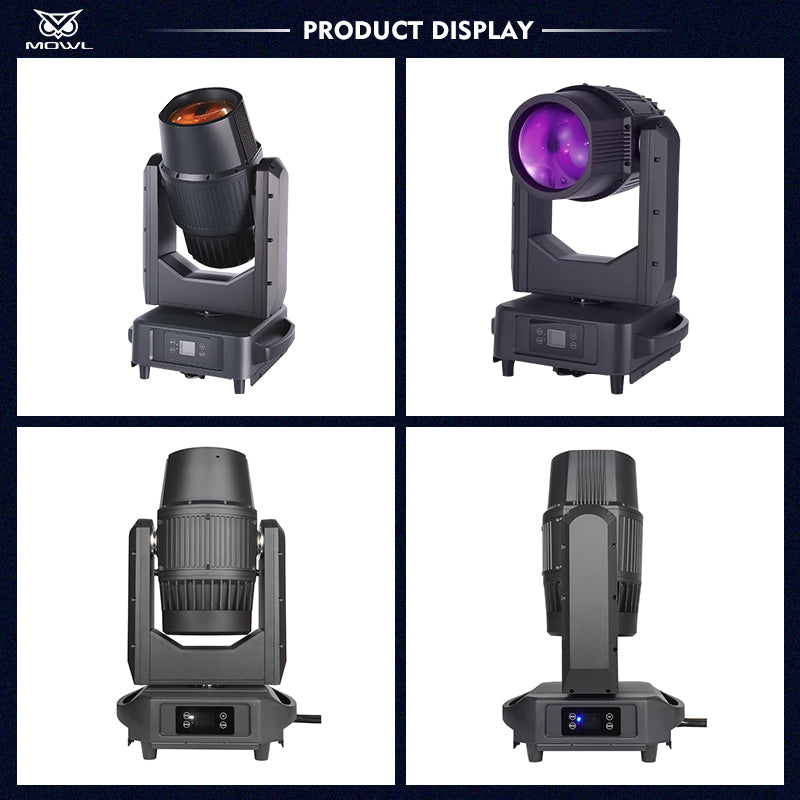

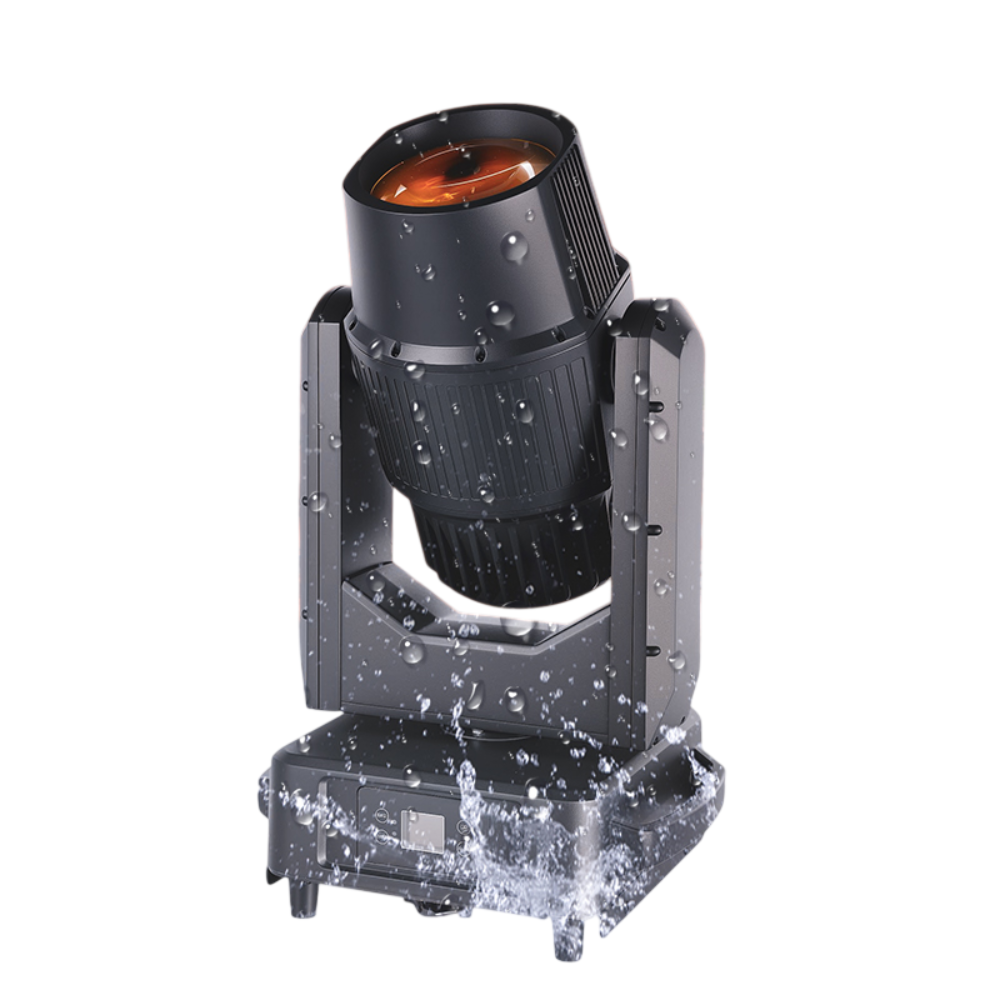

420W IP65 Waterproof Beam Moving Head Light

The 420W IP65 Waterproof Beam Moving Head Light is a heavy-duty all-weather beam fixture designed for outdoor performances, stages, nightclubs, architectural lighting, concerts, festivals, and large event productions. Built with a fully enclosed aluminum alloy housing and IP65 / IP66 waterproof protection, this moving head is designed for demanding outdoor environments when properly installed.

With a powerful 420W light source, large 160mm lens, narrow 0°–2° beam angle, 55,000 lm luminous flux, 13-color wheel, 17-pattern wheel, rotating 8-facet prism, atomization effect, 540° pan, 270° tilt, 0–100% linear dimming, adjustable strobe, and multiple control modes, this fixture gives lighting designers strong tools for long-throw beams, aerial effects, architectural looks, and large-scale outdoor shows.

Key Features

• All-Weather Protection: Fully enclosed aluminum alloy housing with IP65 / IP66 waterproof and rainproof protection for suitable outdoor use.
• High-Intensity Optics: Large 160mm lens and narrow 0°–2° beam angle deliver sharp, long-throw beam effects.
• Strong Beam Output: Produces up to 55,000 lm luminous flux with 7900±500K color temperature for bright outdoor stage applications.
• Color Wheel Effects: 13 colors plus white light with rainbow effect support rich beam color changes.
• Pattern Wheel Effects: 17 fixed patterns plus white light create additional projection and beam texture options.
• Prism & Atomization: Rotating 8-facet prism with macro functions plus atomization for softer beam effects.
• Wide Movement Range: 540° X-axis pan and 270° Y-axis tilt with automatic positioning correction.
• Flexible Control Modes: Supports DMX512, voice control, master-slave, built-in programs, and auto mode.

Instructions

1. Installation: The fixture supports hanging mount installation. Because the product weight is approximately 25 kg, use properly rated clamps, brackets, truss, and safety cables.
2. Power & Cabling: Connect the fixture to a compatible AC100–240V or AC90–235V, 50/60Hz power source using the appropriate waterproof connectors.
3. Control Setup: Use the built-in LCD display to configure operating mode, DMX address, and channel mode. For programmed shows, connect through DMX512 and select 16CH or 20CH mode.
4. Effect Customization: Use the color wheel, pattern wheel, prism, dimmer, strobe, atomization, pan, and tilt channels to create sharp beams, aerial patterns, and softer atmospheric effects.
5. Outdoor Use: Before outdoor operation, confirm that all power, DMX, and unused connectors are properly sealed and protected to help maintain the waterproof rating.
6. Maintenance: Keep the lens, housing, vents, seals, connectors, brackets, and moving parts clean. Operate within the recommended working temperature range of -25°C to 55°C.
