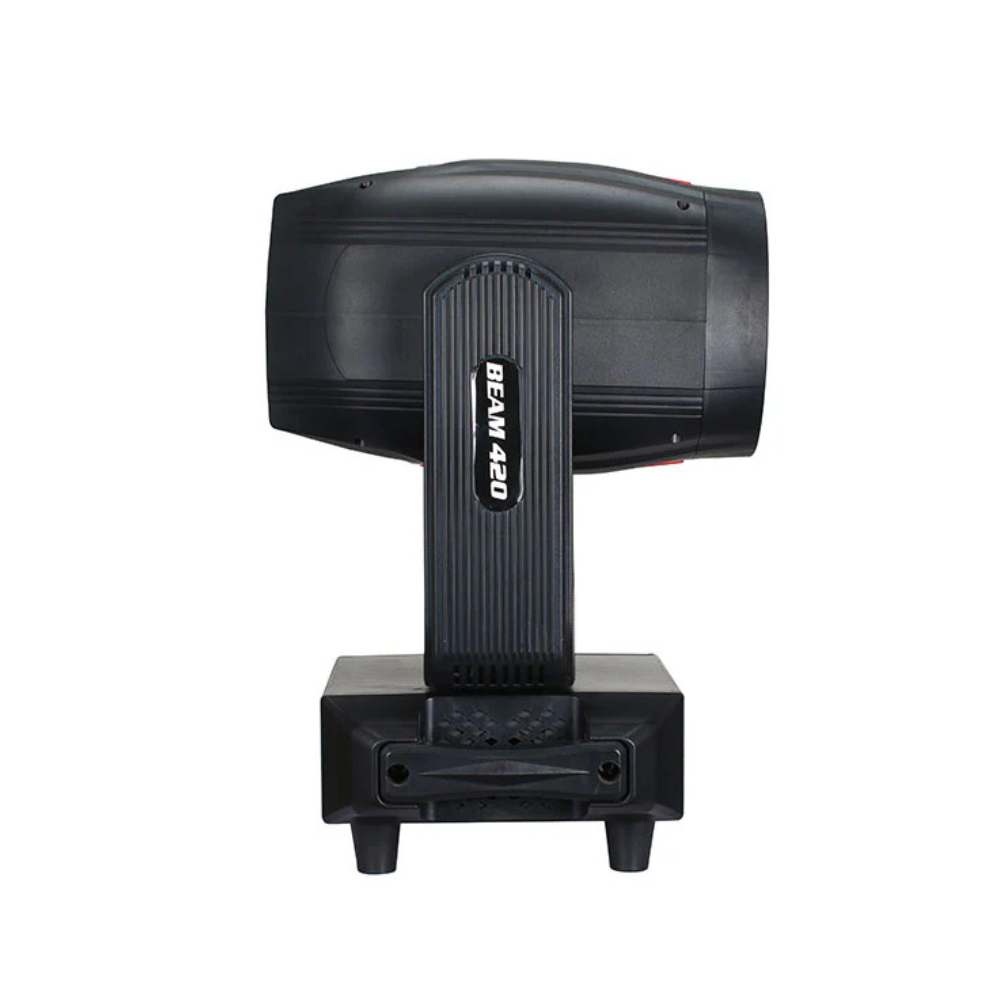

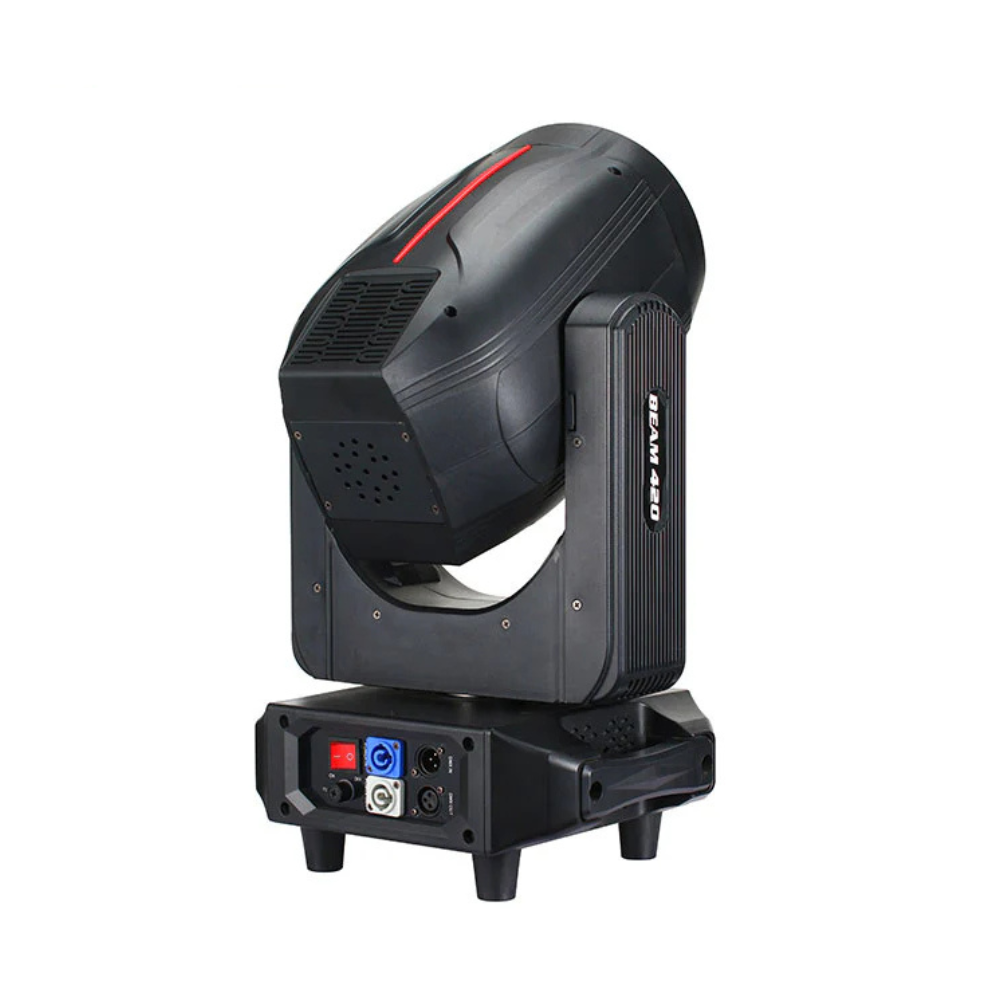

420W 19R Beam Moving Head Light with LED Halo Ring

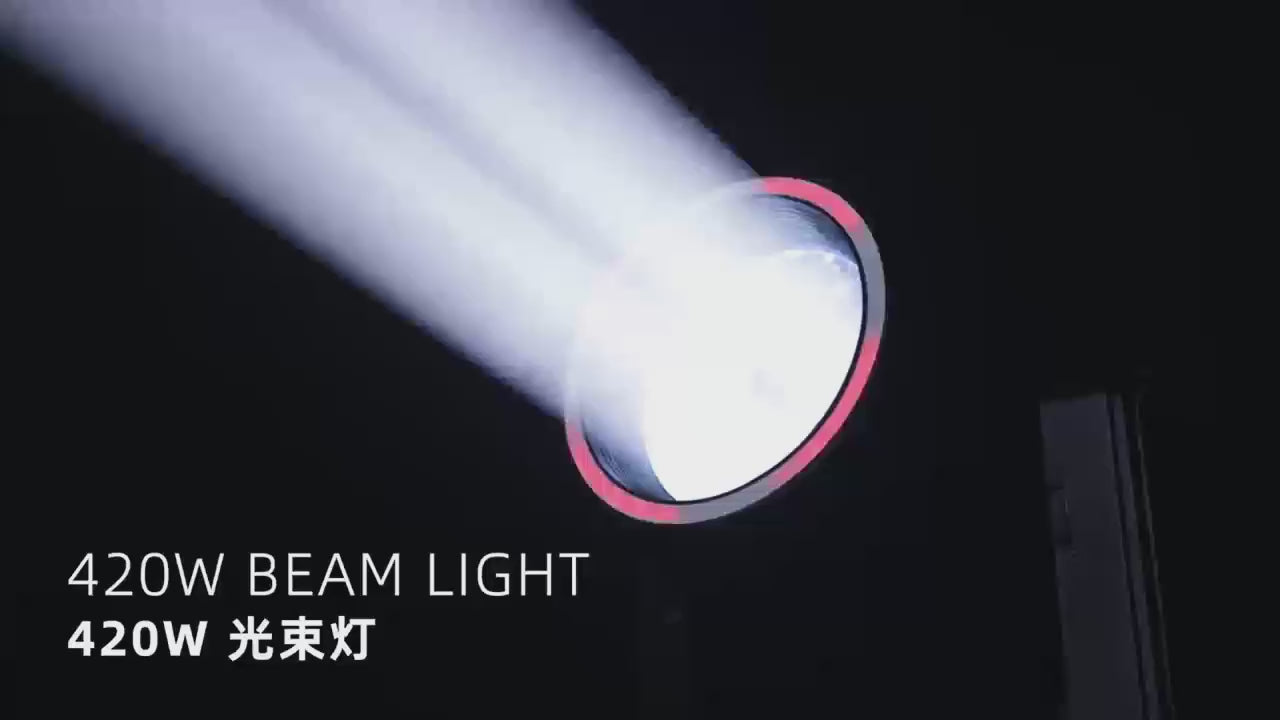

The 420W 19R Beam Moving Head Light with LED Halo Ring is a professional beam fixture designed for concerts, large-scale events, nightclubs, DJ stages, touring productions, and high-energy entertainment environments. Powered by a 420W 19R bulb, this fixture delivers a sharp long-throw beam with a tight 1.8° beam angle and 6500K color temperature.

This moving head also includes an independently controllable LED halo ring, creating an additional layer of eye-candy effects around the main beam. With 14 colors plus white, pattern effects, four prism options, 540° pan, 270° tilt, DMX512 control, 16CH / 24CH modes, auto mode, sound mode, master-slave operation, and built-in overheat protection, it gives lighting users strong creative control for beam effects, prism looks, gobo-style patterns, and dynamic stage visuals.

Key Features

• Powerful 420W Beam Output: Uses a 420W 19R bulb to deliver a bright, sharp, long-throw beam for professional stage applications.
• Tight 1.8° Beam Angle: Creates focused aerial beams that cut clearly through haze or smoke in concerts, clubs, and event spaces.

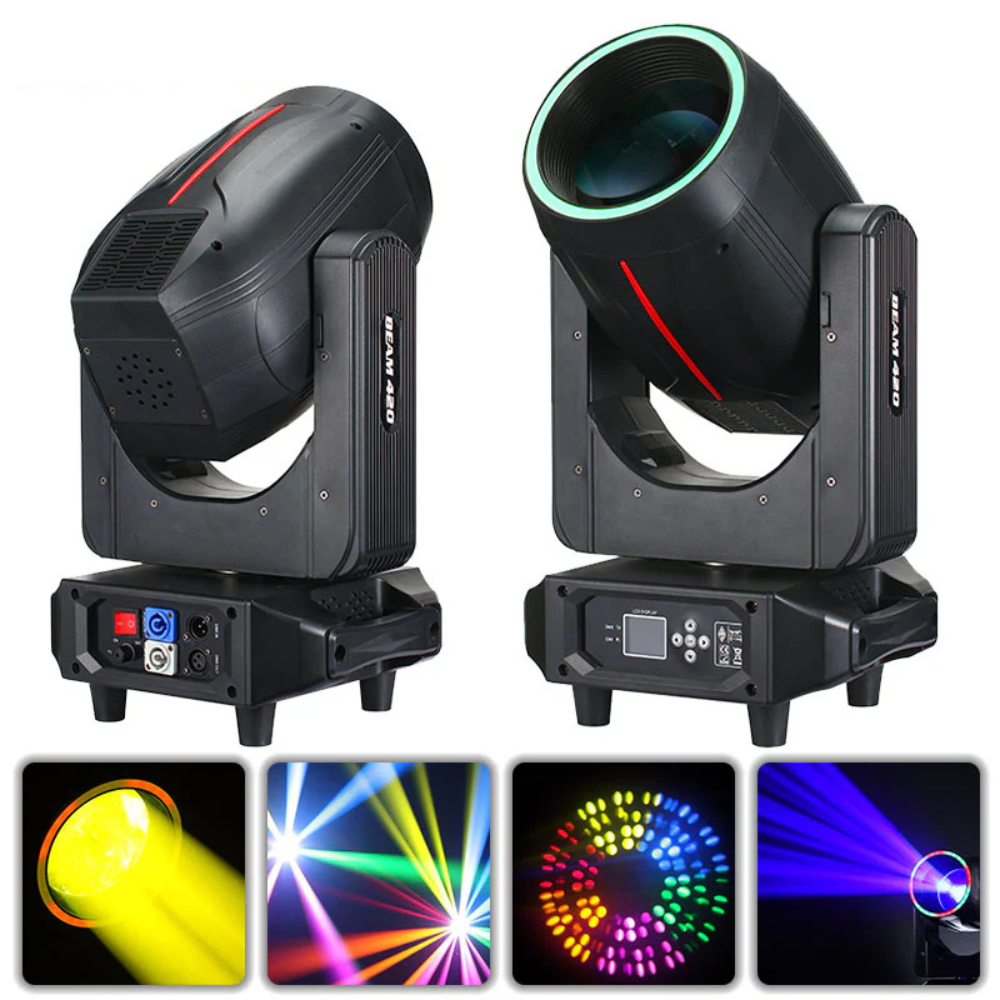

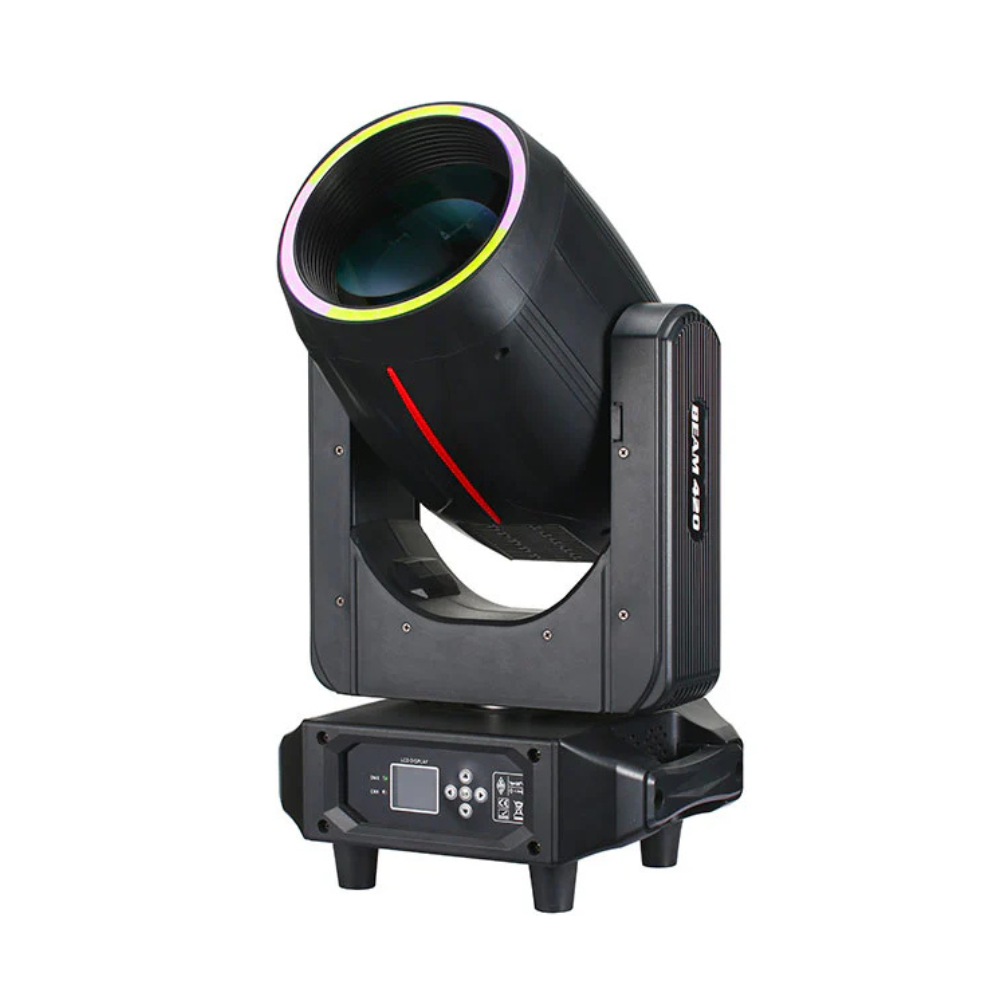

• LED Halo Ring: Integrated multi-color LED halo ring adds a second visual layer for eye-candy effects, chase looks, and stage accents.
• Rich Color Wheel: Includes 14 colors plus white light, with rainbow effect support for fast and dynamic color changes.
• Pattern Wheel Effects: Features 14 patterns plus 4 glass pattern effects for additional projection and beam texture options.
• Complex Prism System: Four prism options include linear 6, 8-facet, 8+16-facet, and 8+16+24-facet prism effects.
• Smooth Movement: 540° pan and 270° tilt provide wide stage coverage and flexible beam positioning.
• Flexible Control Modes: Supports DMX512, master-slave, auto mode, and sound mode, with 16CH and 24CH control options.

Instructions

1. Rigging & Installation: Securely mount the fixture to a suitable truss or stage structure using proper clamps and safety cables. Make sure the mounting structure can safely support the 14.3 kg net weight and allows enough clearance for 540° pan and 270° tilt movement.
2. Power Connection: Connect the fixture to a compatible AC110–240V, 50–60Hz power source. Confirm that the circuit and power distribution setup can safely support the connected load.

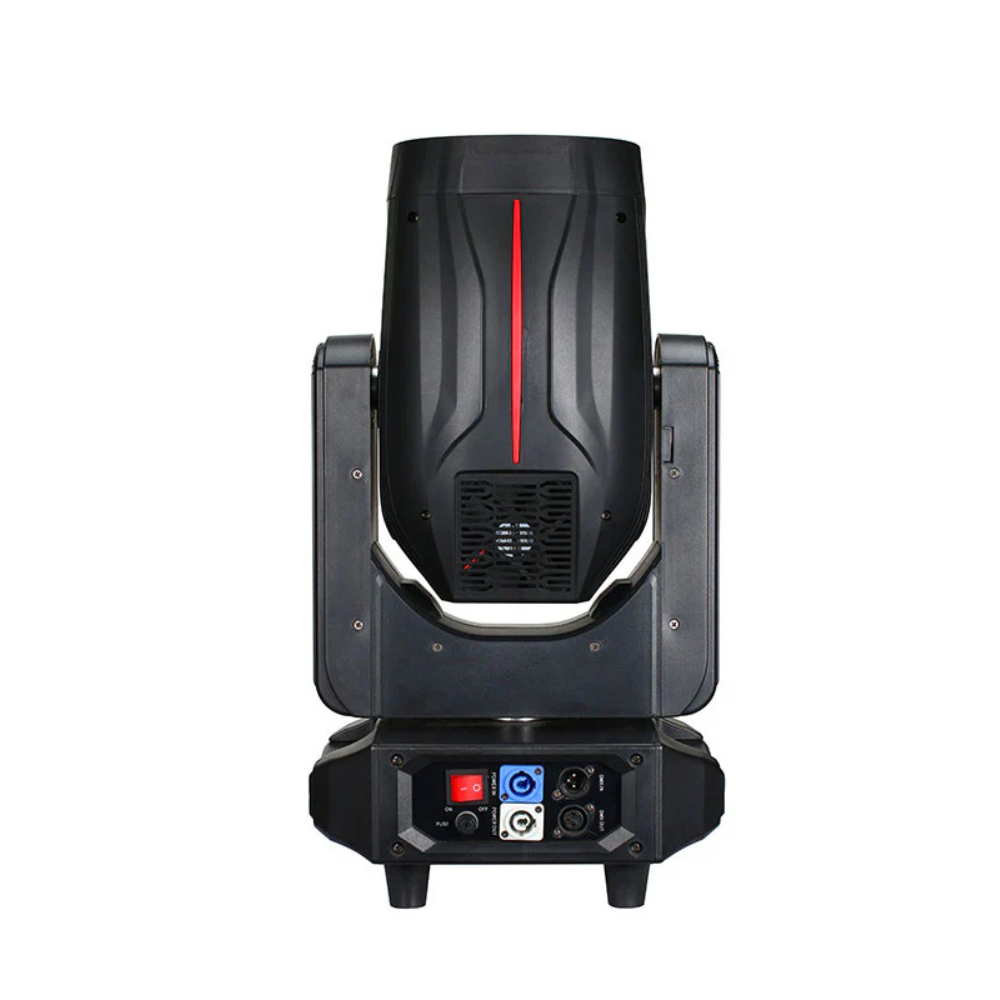

3. Signal Setup: Connect DMX cables to the DMX input port and link additional fixtures through the DMX output port when needed.
4. Configuration: Use the LCD display panel to set the DMX address and choose 16CH or 24CH mode. Use 24CH mode when more detailed control over the LED halo ring is required.
5. Standalone Operation: For simpler setups, use auto mode, sound mode, or master-slave mode without full DMX programming.
6. Maintenance: Clean the coated lens with a soft non-abrasive cloth to maintain beam intensity. Keep cooling vents, housing, connectors, and moving parts free from dust so the overheat protection system can function properly.
