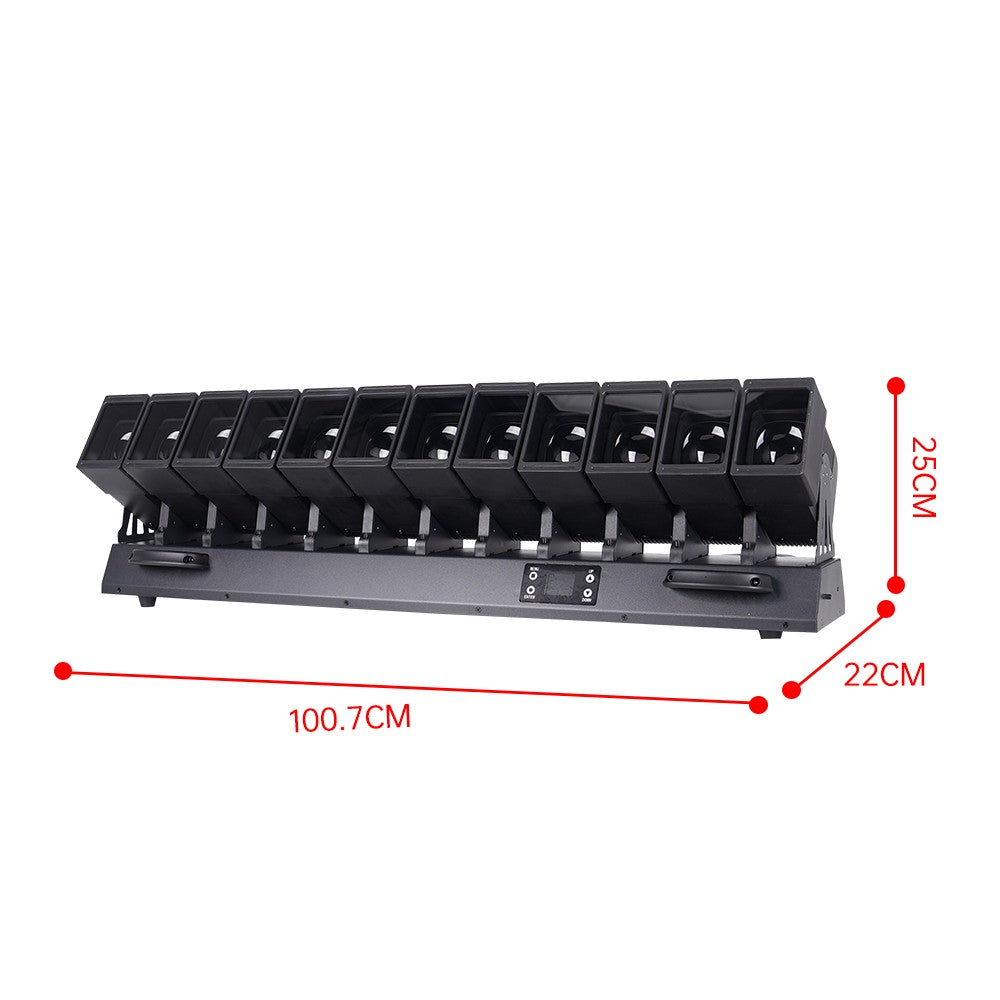

12x60W Motorized LED Zoom Bar - RGBW 4-in-1 Pixel Batten with Dynamic Tilt & Beam/Wash Effects for Pro Stage & Touring

The 12x60W Motorized LED Zoom Bar is a professional high-powered pixel batten designed for dynamic stage, touring, club, and live production applications. Delivering up to 800W of total power, this fixture uses twelve 60W RGBW 4-in-1 LED beads to create intense beams, wide washes, color staining effects, and full-color stage visuals.

Its independent single swing mechanism allows each lens cell to create wobble, wave, and tilt-style movement effects. With auto-focus zoom, 32-bit linear dimming, 1–30Hz strobe, RDM support, and multiple DMX channel modes up to 169CH, this fixture gives lighting designers powerful control for synchronized beam looks, serpentine wave effects, and complex pixel-mapped movement.

Key Features

• High-Power RGBW Output: Features 12 x 60W RGBW 4-in-1 LED lamp beads for strong beam, wash, and color-mixing performance.
• Independent Single Swing: Each lens supports a single wobble / swing mechanism for serpentine wave effects, dynamic tilt movement, and complex visual patterns.

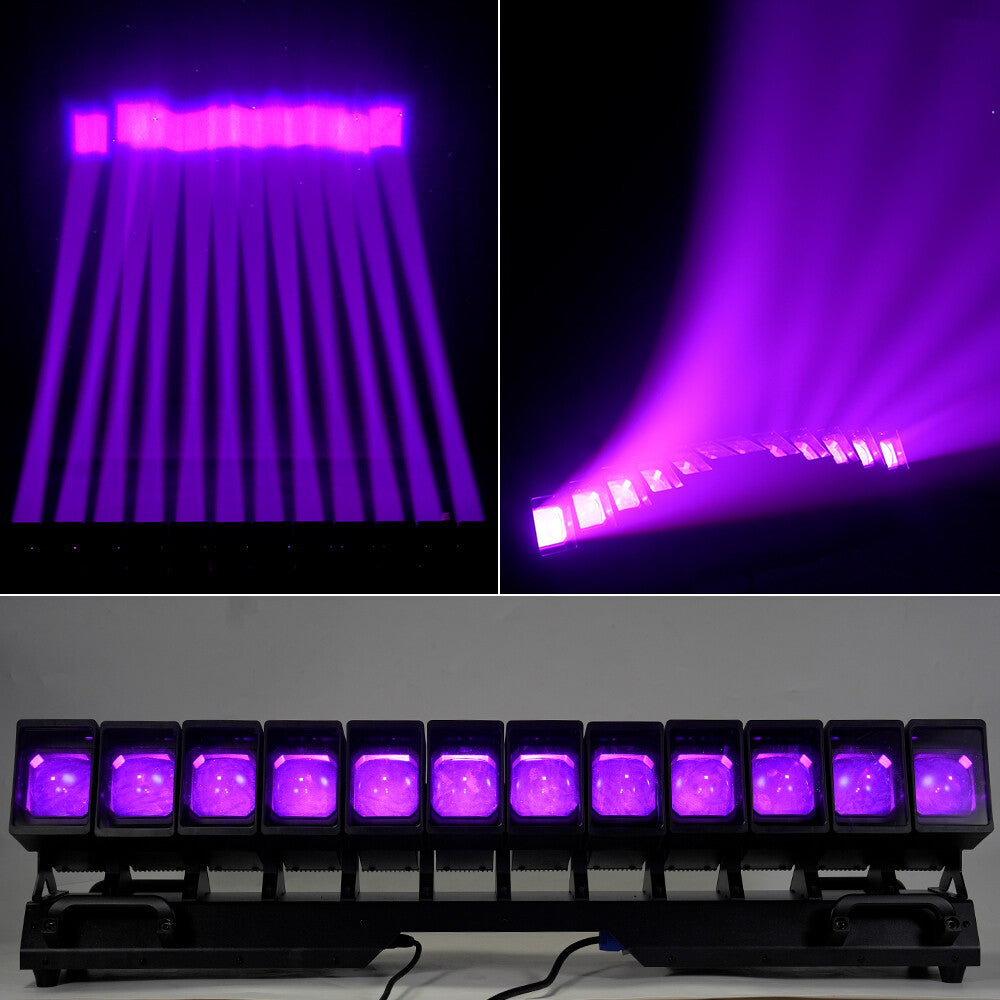

• Beam, Wash & Staining Effects: Supports beam looks, wide wash coverage, and color staining effects from one motorized LED bar.

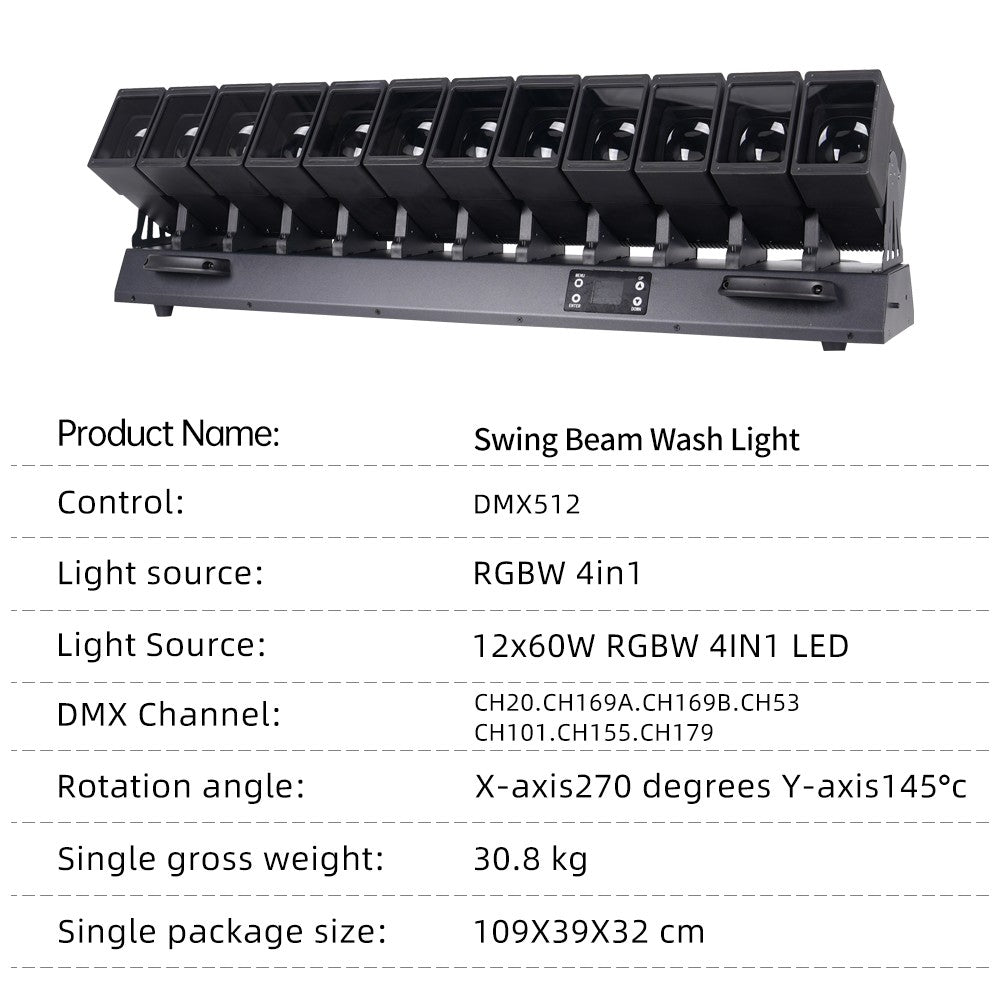

• Flexible Rotation Range: X-axis movement reaches 270°, while Y-axis movement reaches 145° with up to 180° adjustable angle functionality.
• Smooth Dimming & Strobe: 32-bit 0–100% linear dimming and 1–30Hz strobe frequency support smooth fades and high-impact flashes.
• Multiple Control Modes: Supports DMX512, RDM function, auto-run, master-slave, and sound control / voice mode.
• Extensive DMX Profiles: Multiple channel options from 20CH to 169CH support both simple operation and advanced pixel-mapped programming.

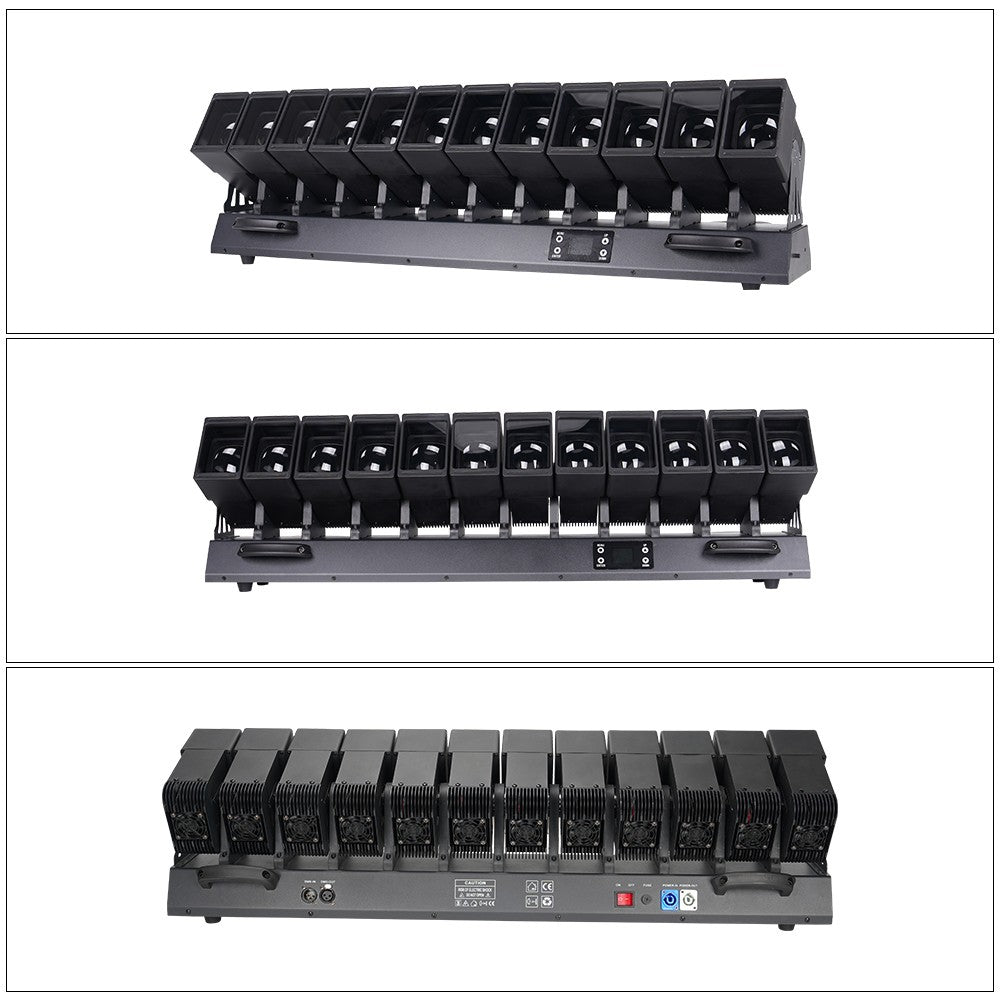

• Stage-Ready Build: Black metal housing with power input/output and DMX512 input/output connections for professional stage setups.

Instructions

1. Mounting: Securely rig the fixture to a suitable truss system or place it on a stable stage surface. Make sure the mounting structure can safely support the fixture and allows enough clearance for the moving parts.
2. Power Connection: Connect the fixture to a reliable AC100–240V, 50/60Hz power supply. Use the power input/output ports only within safe circuit and fixture load limits when linking multiple units.
3. Data Connection: Connect your lighting console through the DMX512 input/output ports. Select the DMX channel mode based on the level of individual pixel, swing, dimming, and movement control required for your show.
4. Standalone Operation: If a DMX controller is not available, use the onboard display to activate auto-run, master-slave, or sound control mode for built-in effects.
5. Effect Programming: Use auto-focus zoom and independent single swing functions to move between tight synchronized beam looks, wide wash effects, and more chaotic wave-style motion.
6. Maintenance: Keep lenses, LED rings, vents, power ports, and DMX ports clean and free from dust or debris. Always power off the fixture before cleaning or inspection.
