10x30W COB LED Matrix Bar - Pro Linear Wash Batten & Blinder Light (Warm White/Cool White) for Concerts, Stage Footlighting & Events

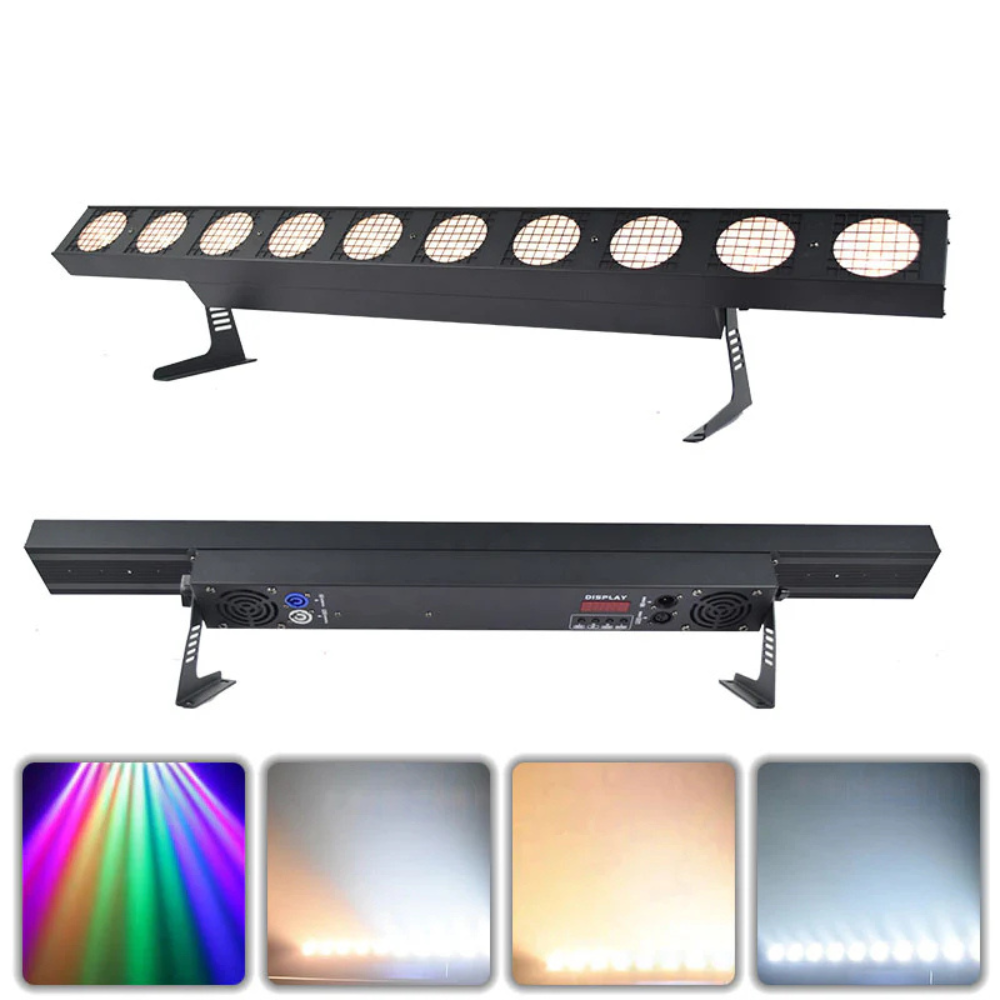

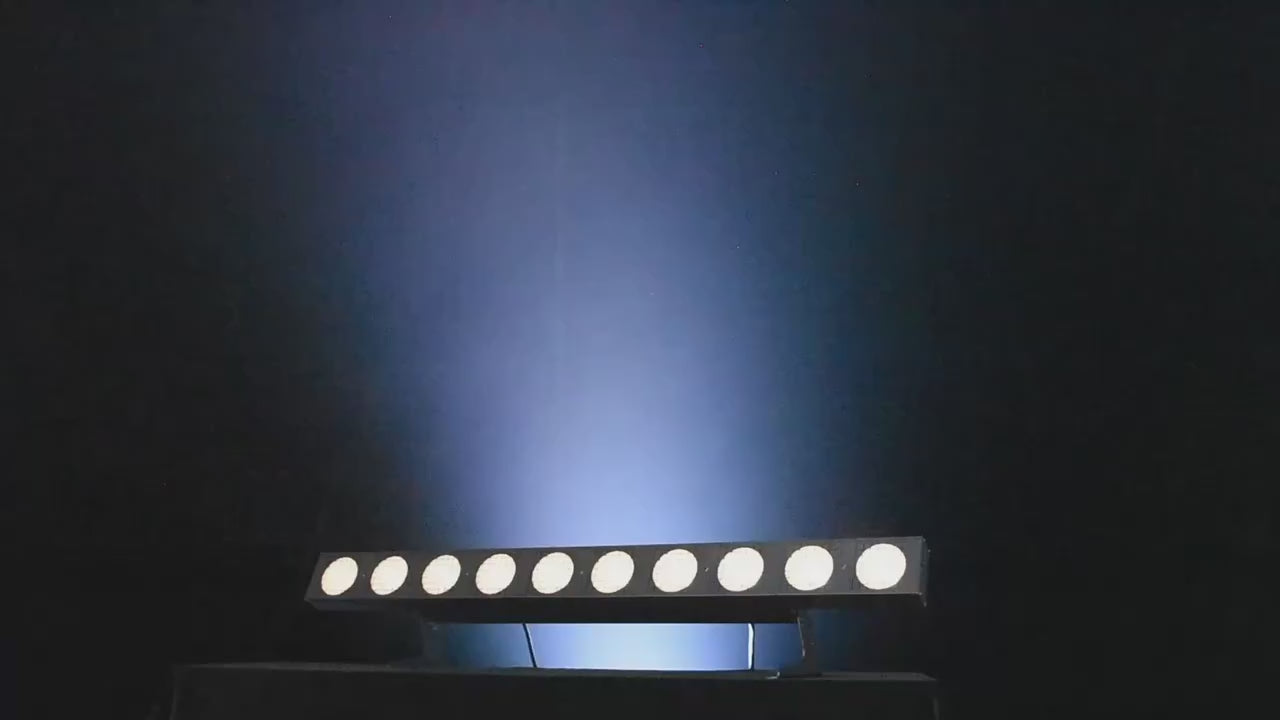

The 10x30W COB LED Matrix Bar is a professional-grade linear wash batten and blinder designed for concerts, stage footlighting, live events, and dynamic production spaces. Powered by ten high-intensity 30W COB LEDs, this fixture delivers bright, even illumination in monochrome or two-color options, including warm white and cool white configurations.

With point-by-point pixel control, DMX512 operation, multiple channel modes, linear dimming, and high-speed strobe effects, this matrix bar allows lighting designers to create chases, sweeping washes, footlight effects, audience blinders, and rhythmic stage visuals. Its cast aluminum and plastic body, built-in protection features, and efficient heat dissipation make it suitable for demanding professional use.

Key Features

• High-Intensity COB LEDs: Equipped with 10 x 30W COB LED beads for bright, even linear illumination.
• Individual Pixel Control: Each of the 10 COB modules can be controlled independently for point-by-point effects, chases, and matrix-style movement.
• Versatile Color Options: Available in monochrome or two-color configurations, including warm white and cool white options.

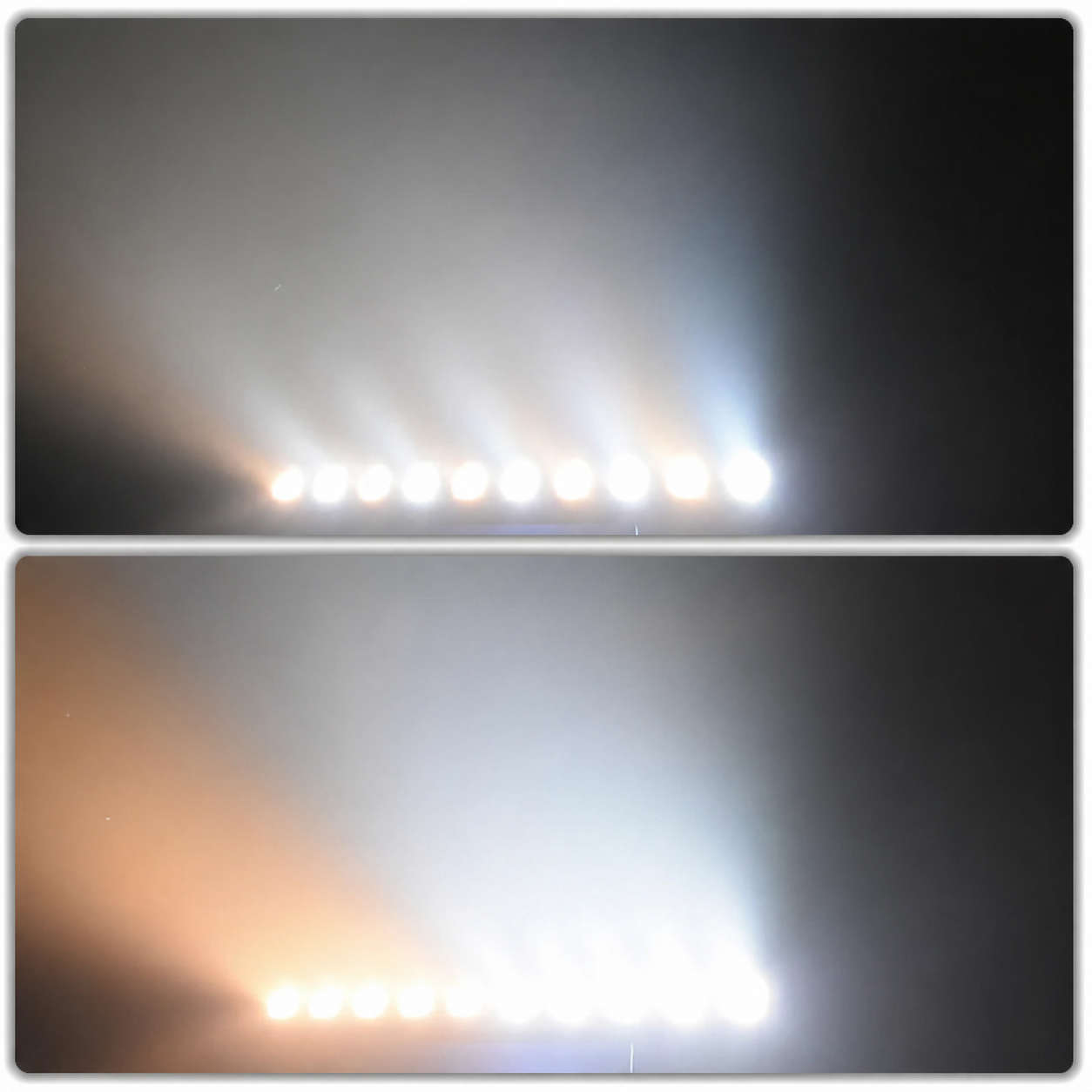

• Wide Color Temperature Range: Supports color temperature options up to 8500K for warm stage washes or crisp cool white blinder effects.
• Dynamic Strobe & Dimming: Supports 1–25 flashes per second strobe effects and smooth linear dimming.
• Multiple Control Modes: Supports DMX512, automatic mode, and voice control / sound-activated operation.
• Flexible DMX Profiles: 10CH, 14CH, and 24CH modes allow simple operation or more detailed pixel programming.
• Durable Build: Cast aluminum and plastic construction helps support heat dissipation and reliable stage use.

Instructions

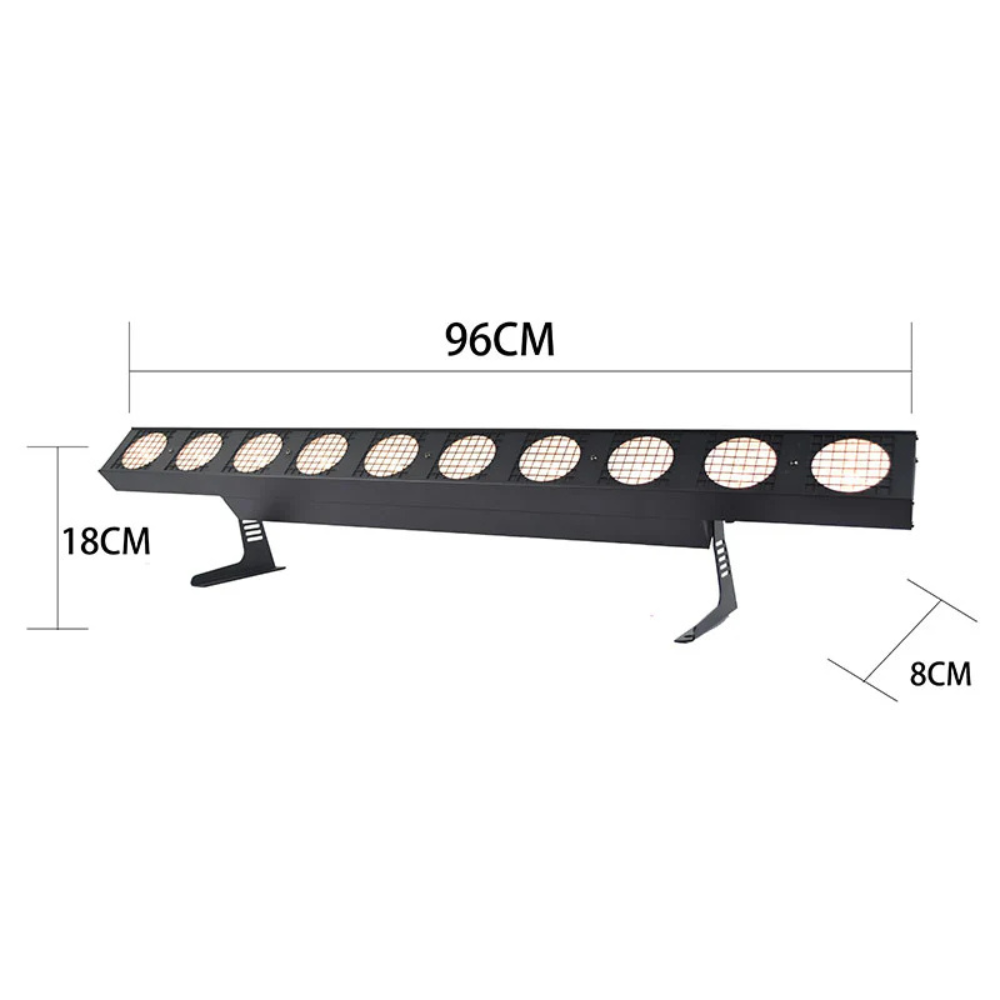

1. Installation: Use the base brackets to place the fixture as a floor row, footlight, or uplight, or mount it to a suitable truss system for overhead blinder and wash effects. Make sure the mounting surface or rigging structure can safely support the fixture’s weight.
2. Power Setup: Connect the fixture to a stable AC 90–240V, 50/60Hz power supply. The total power consumption is 300W.
3. Data Connection: Connect your lighting console through the DMX input and output ports. Use the built-in display panel to assign the DMX starting address.
4. Channel Configuration: Select the 10CH, 14CH, or 24CH DMX mode based on your programming needs. Use 24CH mode for more detailed individual pixel control and complex lighting sequences.
5. Operation: Use DMX control for programmed stage looks, automatic mode for standalone operation, or voice control / sound-activated mode for music-responsive effects.
6. Maintenance: Keep the COB lenses, housing, and cooling vents clean and free from dust or debris. Operate within the recommended working temperature range of -20°C to 40°C.
