100W Hybrid Retro LED Pixel Bar - Warm White COB Matrix Batten with RGB Background & Honeycomb Lens for Stage FX & TV

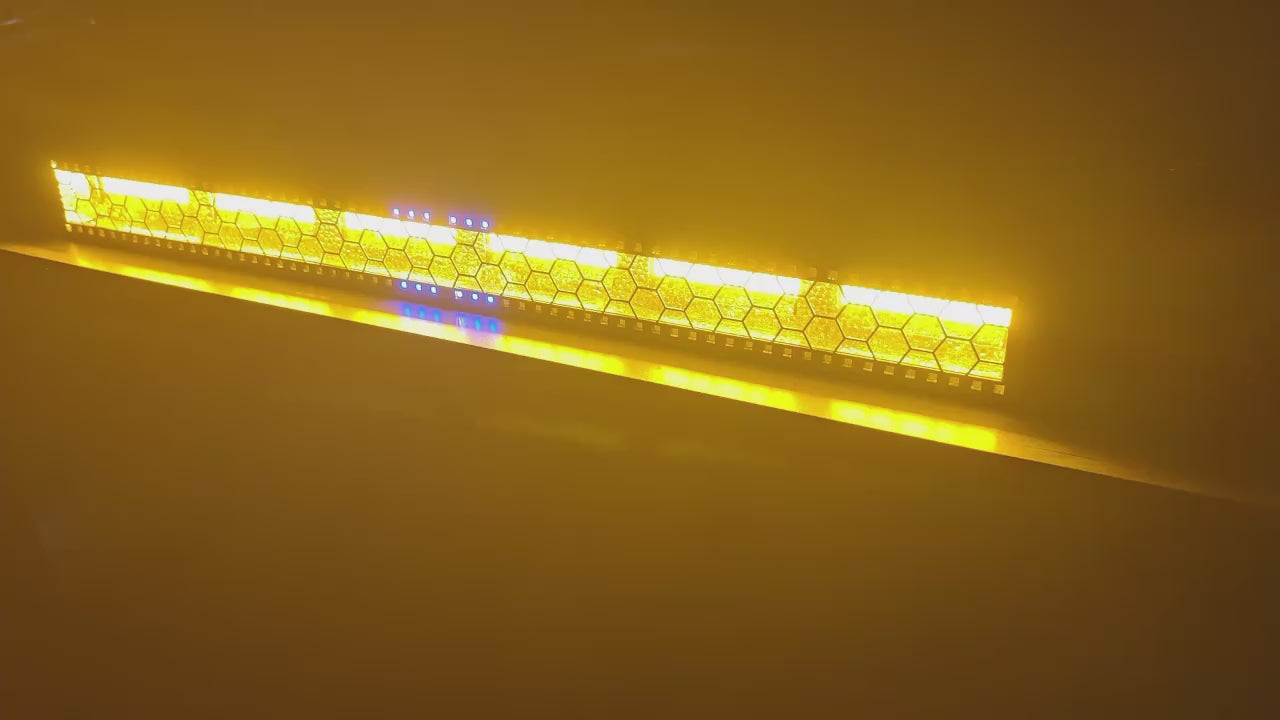

The 100W Hybrid Retro LED Pixel Bar is a uniquely designed stage batten that blends vintage-style warm white ambiance with modern RGB pixel effects. Featuring a distinctive honeycomb lens grill, it produces a soft 2700K warm white glow from its central 100W COB-style light source, creating a classic tungsten blinder look for stage, TV, concert, DJ, and theatrical background applications.

Around the central warm white light source, 124 x 0.2W 5050 RGB 3-in-1 LEDs provide colorful chases, pixel-style movement, and dynamic background effects. With 32-bit linear dimming, 1–30Hz strobe, sound-activated operation, aluminum alloy construction, and an IP33 rating, this fixture is a practical choice for creating both warm atmosphere and high-energy visual effects.

Key Features

• Hybrid Retro Design: Combines a classic warm white blinder look with modern RGB pixel effects, enhanced by a honeycomb optical grill.
• Dual Light Sources: Features a central 100W warm white LED source and 124 x 0.2W 5050 RGB 3-in-1 LEDs for layered stage visuals.
• Soft Warm White Output: 2700K warm white light creates a vintage tungsten-style ambiance for concerts, broadcasts, theaters, and DJ stages.
• RGB Pixel Effects: The surrounding RGB LEDs support dynamic color chases, background movement, and eye-candy effects.
• Smooth Dimming: 32-bit 0–100% linear dimming helps create smooth fades and controlled transitions.
• Strobe & Sound Activation: Supports 1–30Hz strobe frequency and sound-activated operation for music-synced light effects.
• Flexible Installation: Suitable for hanging mount or floor-standing use, depending on your stage layout.
• Durable Build: Aluminum alloy housing with IP33 rating for indoor or covered stage applications.

Instructions

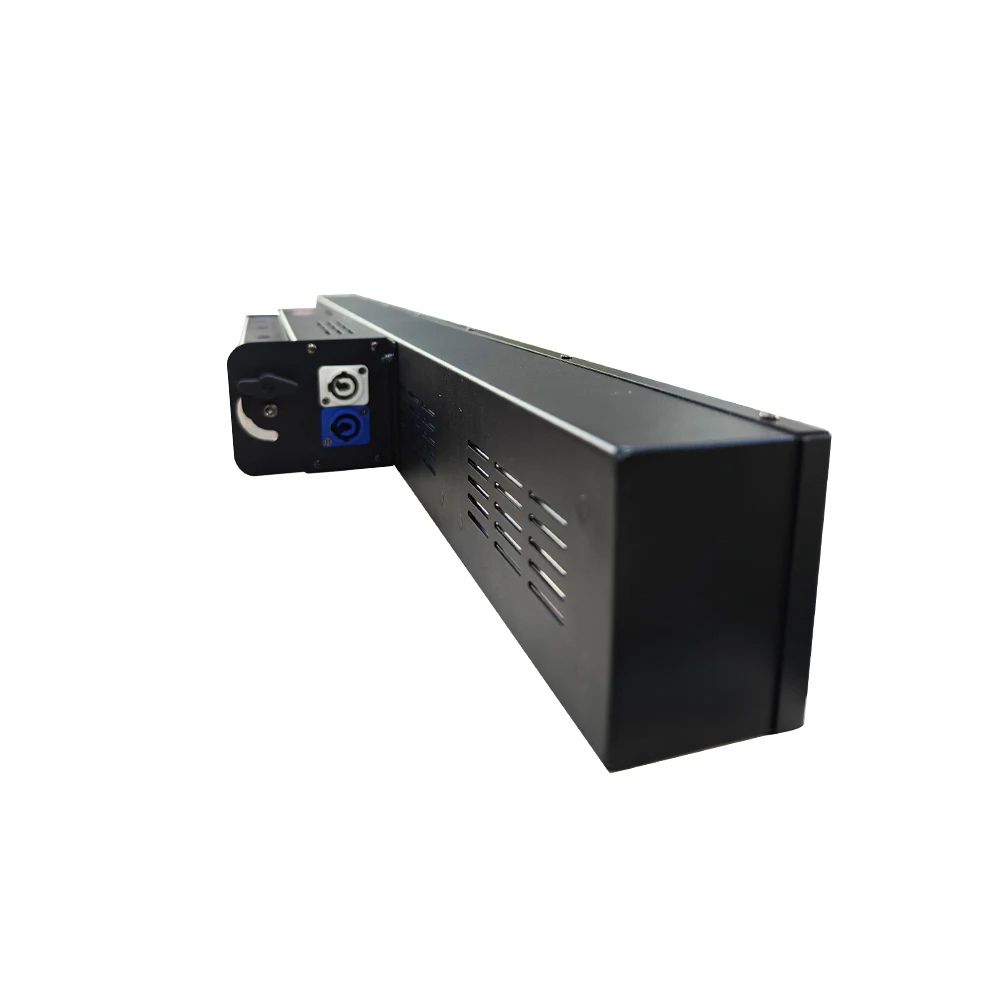

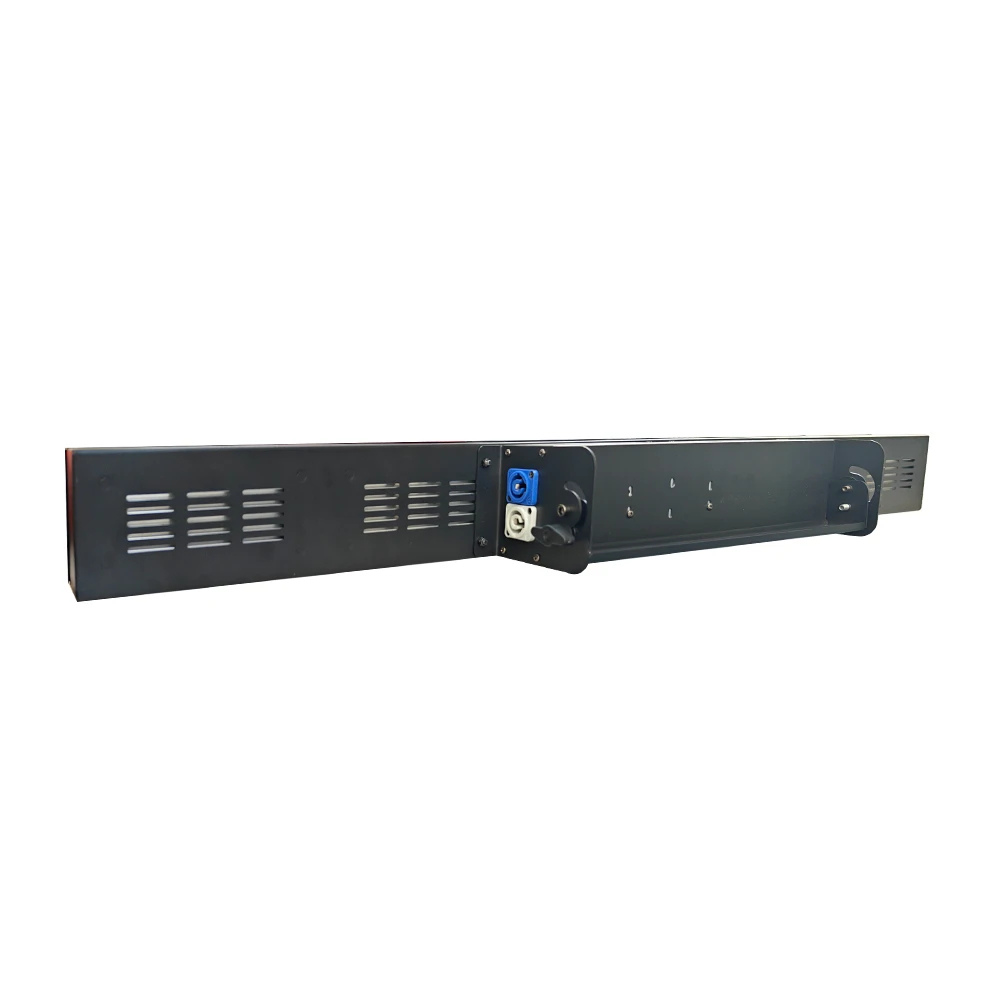

1. Mounting & Placement: Use the side brackets to mount the fixture on a suitable truss system or place it securely on the stage floor as an uplight, footlight, or background effect. Make sure the structure or surface can safely support the fixture’s weight.
2. Power Connections: Connect the unit to a reliable AC 85–240V, 50/60Hz power supply. If using power linking, make sure the total connected load does not exceed safe circuit or fixture limits.
3. Data Setup: Connect your lighting console through the 3-pin DMX input/output connectors. Set the desired DMX address using the rear digital display panel.
4. Programming: Use DMX control to blend the 2700K warm white blinder effect with RGB color chases and pixel-style background effects. For simple setups, use sound-activated mode to sync lighting movement with music.
5. Maintenance: Keep the honeycomb grill, front lenses, vents, and housing clean and free from dust or residue. Use the fixture in suitable indoor or covered environments according to the IP33 rating.

Technical Specifications
