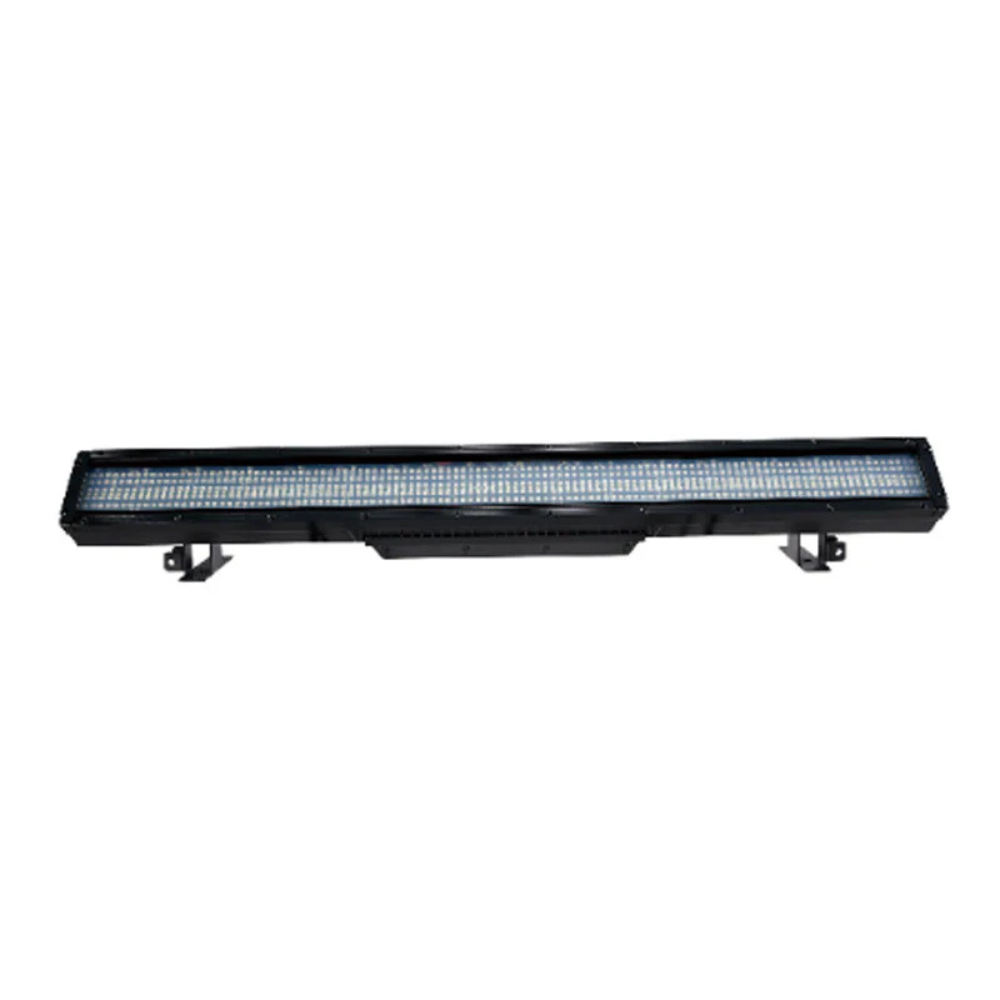

IP66 Outdoor Hybrid LED Strobe Bar - Linear Pixel Wash Batten (672 RGB + 112 CW LEDs) with Electronic Frost for Festival & Stage

The IP66 Outdoor Hybrid LED Strobe Bar is a dynamic linear pixel wash and strobe batten designed for festivals, outdoor stages, touring productions, concerts, and professional event environments. It combines 672 x 0.5W RGB LEDs for vibrant color mixing with 112 x 3W cool white LEDs for strong white output and high-impact strobe effects.

With an IP66 outdoor rating, individually controllable RGB and cool white zones, wide beam coverage, 0–100% smooth dimming, electronic atomization / frost effect, and built-in splicing pins for fast alignment, this fixture is built for large-scale stage designs that need both color wash effects and powerful strobe performance.

Key Features

• Hybrid Light Source: Combines 672 x 0.5W RGB LEDs for color effects with 112 x 3W cool white LEDs for bright strobe and white light output.

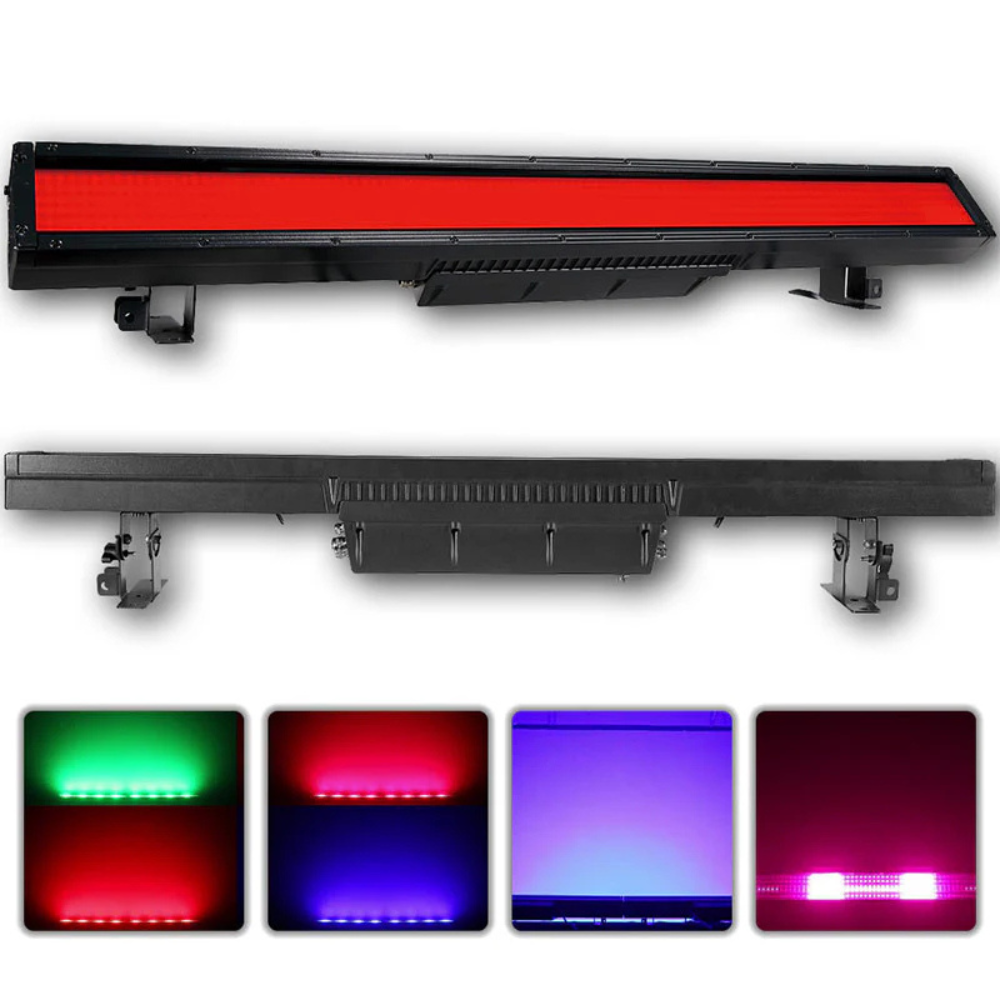

• Individual Zone Control: Includes 32 RGB color light zones and 16 cool white zones for pixel-style programming, chase effects, and dynamic stage looks.
• Wide Beam Coverage: RGB color light offers a 101° beam angle and 149° spot angle, while cool white light offers a 108° beam angle and 152° spot angle.

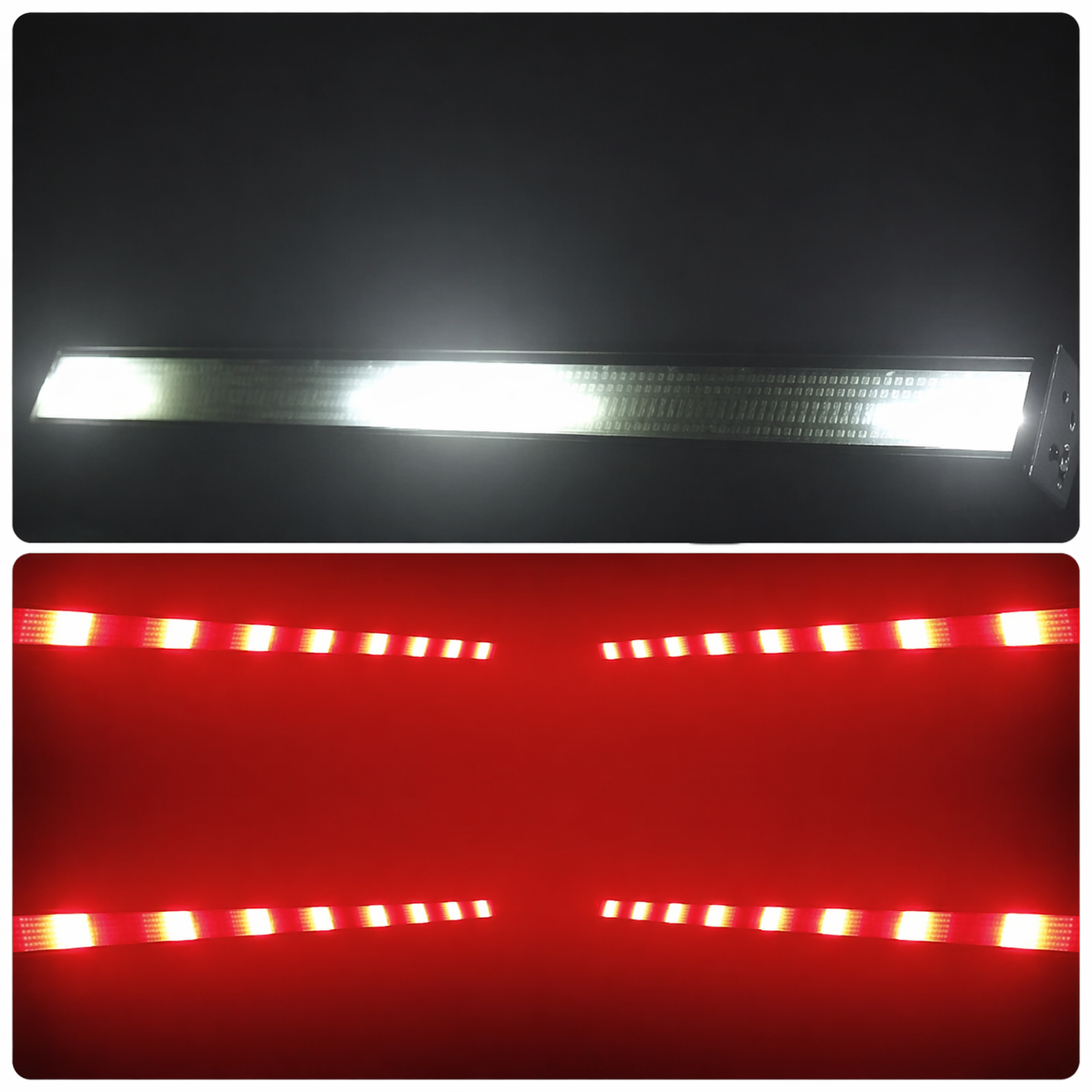

• High-Output Strobe: Dedicated cool white LEDs provide powerful strobe effects for festivals, concerts, and high-energy productions.
• Electronic Frost Effect: Electronic atomization / frost effect helps soften the output when a smoother wash look is needed.
• Smooth Dimming: 0–100% smooth dimming supports controlled fades, transitions, and intensity changes.
• Outdoor-Rated Build: IP66 rating supports outdoor stage and festival environments when power and data connections are properly protected.

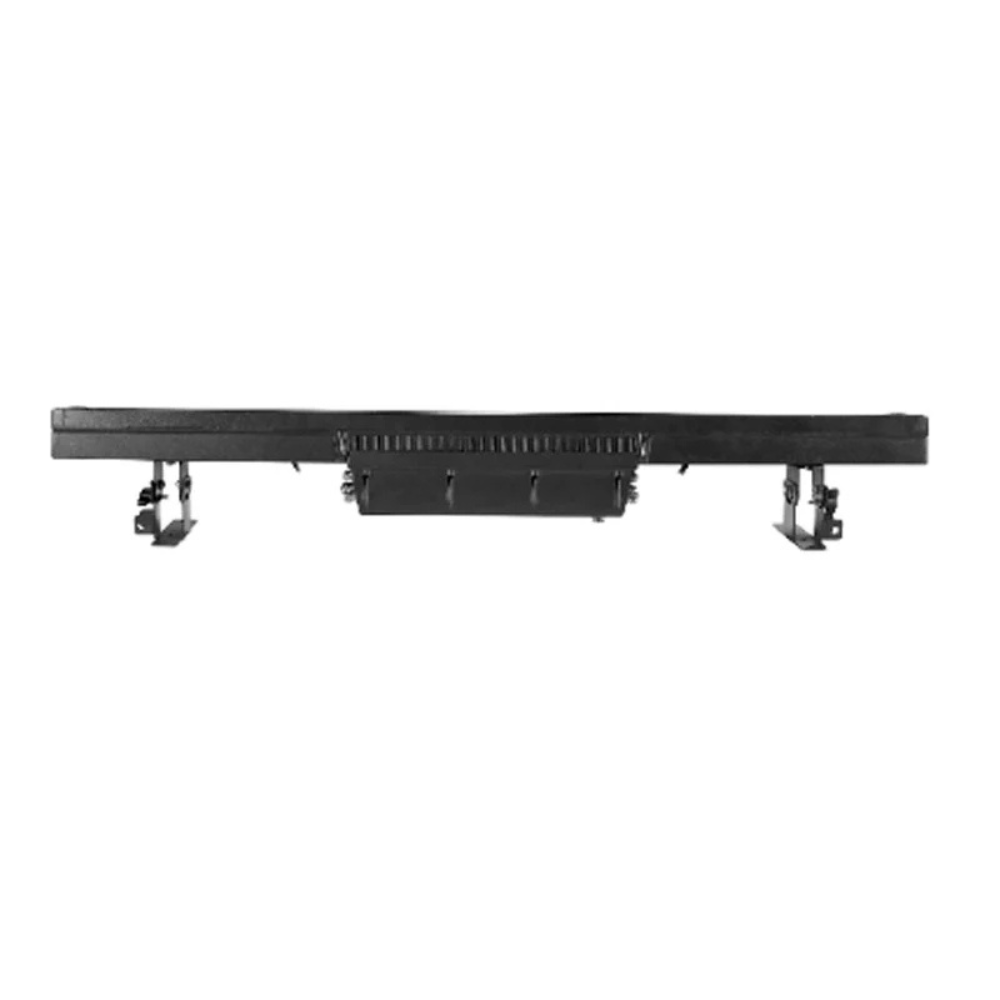

• Fast Splicing Alignment: Built-in splicing pins help align multiple fixtures quickly for cleaner linear arrays.

Instructions

1. Rigging & Alignment: When installing multiple fixtures in a row, use the built-in splicing pins to help align the battens accurately and create a cleaner linear display.
2. Power & Data Safety: Before outdoor use, make sure all power and data connections are correctly sealed and protected to help maintain the IP66 outdoor rating.
3. Pixel Mapping: Connect your lighting console and address the RGB and cool white zones as needed. Use the 32 RGB zones and 16 cool white zones for pixel mapping, chases, and segmented strobe effects.
4. Effect Adjustments: Use the electronic atomization / frost effect to soften output when transitioning from sharp strobe looks to broader wash-style effects.
5. Dimming Control: Use 0–100% smooth dimming to create clean fades, color blends, and controlled intensity changes.
6. Maintenance: Keep lenses, housing, seals, vents, mounting points, and connector areas clean. Inspect weatherproof seals and cables before outdoor deployment.
