37x15W LED Zoom Wash Moving Head Light - Pro RGBW 4-in-1 Stage Fixture with High CRI (Ra90) & Motorized Zoom for Church, Theater & Broadcast

The 37x15W LED Zoom Wash Moving Head Light is a professional RGBW 4-in-1 stage fixture designed for churches, theaters, broadcast environments, concerts, clubs, and live event spaces. With a high color rendering index of Ra 90 and 6000K daylight output, it helps deliver vivid and natural-looking stage illumination.

This 700W moving head uses 37 x 15W W+RGBW LEDs with point control, supported by 222 x 0.2W RGB internal auxiliary LEDs and an RGB point control light strip for dynamic matrix-style background effects. With 540° pan, 270° tilt, DMX512 control, 40CH / 48CH modes, strobe, dimmer support, master-slave mode, and voice control, it gives lighting designers flexible control for smooth washes, beam effects, auxiliary pixel visuals, and high-energy stage looks.

Key Features

• High-Output W+RGBW Light Source: Features 37 x 15W W+RGBW LEDs with individual point control for bright wash, beam, and color effects.
• Dynamic Auxiliary Matrix: Includes 222 x 0.2W RGB internal auxiliary LEDs plus an RGB point control strip for layered background and pixel-style effects.
• High Color Accuracy: CRI Ra 90 and 6000K daylight output help support more natural color reproduction for stage and broadcast environments.
• Wide Movement Range: 540° horizontal pan and 270° vertical tilt provide flexible stage coverage and dynamic movement.
• Variable Strobe Effects: Supports 1–25 flashes per second or random strobe effects for high-energy moments.
• Dimmer Support: Built-in dimmer support allows smoother intensity control and stage transitions.
• Multiple Control Modes: Supports DMX512, master-slave, and voice control / sound-activated operation.
• Professional Build: Aluminum and plastic housing with hanging mount installation for indoor stage use.

Instructions

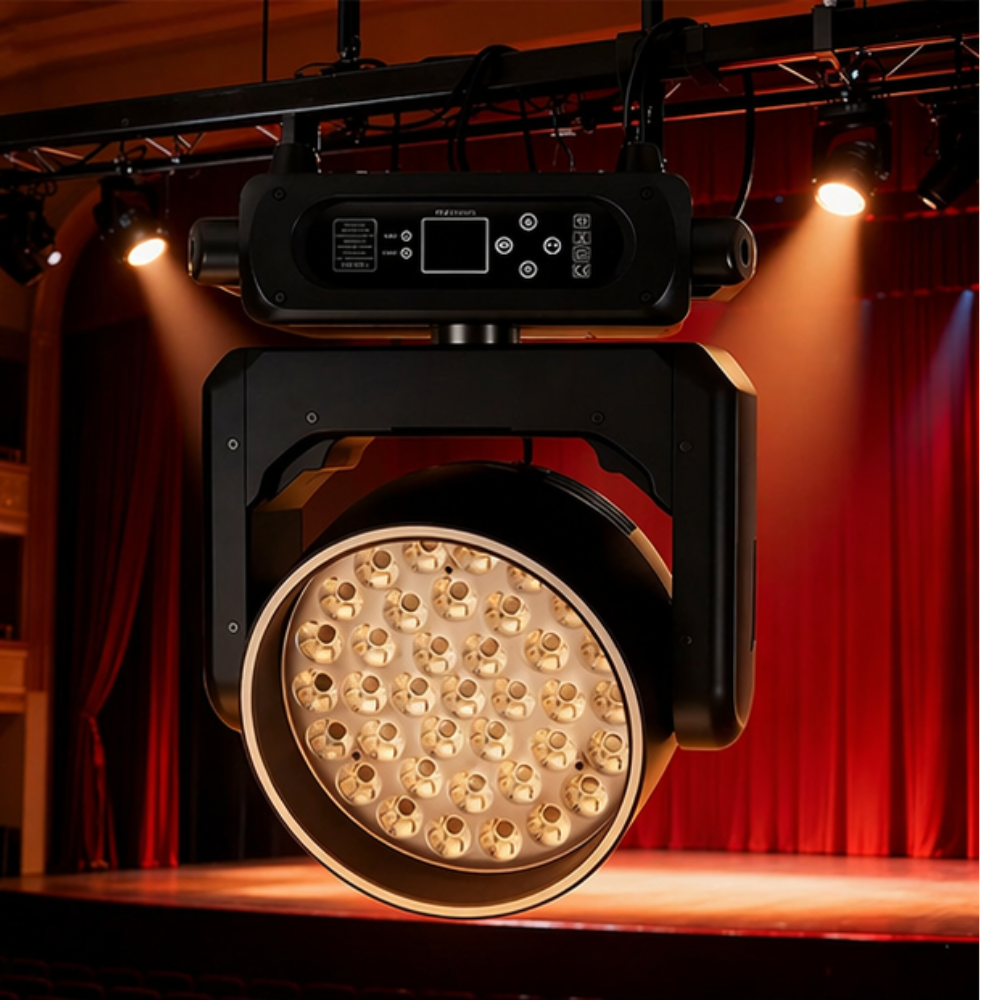

1. Mounting: Use suitable hanging mount hardware, rated clamps, and safety cables to secure the fixture to a truss or mounting structure. Make sure the rigging equipment can safely support the 11.5 kg product weight.
2. Power Setup: Connect the fixture to a reliable AC90–240V power supply. The total power draw is 700W, so confirm that the circuit and power distribution setup can safely support the load.
3. Data Connection: Connect your DMX cables through the fixture’s DMX ports. Select 40CH or 48CH mode depending on the level of main LED and auxiliary light control required.
4. Display Configuration: Use the built-in display screen to navigate settings, assign DMX addresses, select channel modes, or activate master-slave and voice control modes.
5. Operation: Use DMX control for programmed stage looks, master-slave mode for synchronized multi-fixture setups, or voice control for music-responsive effects.
6. Operating Environment: This fixture is rated IP20 and intended for indoor use. Keep it away from rain, moisture, and unsuitable outdoor conditions.
7. Maintenance: Keep lenses, auxiliary LED areas, vents, display panel, and housing clean and free from dust or debris to maintain brightness, cooling, and stable operation.

Technical Specifications
