19x15W LED Wash Moving Head Light - Pro RGBW 4-in-1 Stage Wash Fixture with High-Speed Strobe for DJ, Club, Church & Concert

The 19x15W LED Wash Moving Head Light is a professional stage wash fixture designed for DJs, clubs, churches, concert stages, and live event spaces. Powered by 19 high-output 15W RGBW 4-in-1 LEDs, this moving head delivers strong color mixing, bright wash coverage, and dynamic beam effects.

This fixture stands out with a bidirectional rotating front mirror disk that creates kaleidoscope and vortex-style optical effects. With 4°–60° motorized zoom, individual pixel control, high-speed strobe, 540° pan, 270° tilt, and multiple DMX channel modes up to 99CH, it gives lighting designers flexible control for smooth washes, aggressive mid-air looks, and animated stage effects.

Key Features

• High-Power RGBW Light Source: Equipped with 19 x 15W RGBW 4-in-1 LEDs for vivid color mixing and strong stage illumination.
• Advanced Pixel Control: Each LED can be individually controlled for pixel mapping, custom shapes, chase effects, and dynamic movement patterns.
• Rotating Mirror Disk: Bidirectional front mirror disk rotation creates kaleidoscope, vortex, and layered optical effects.
• Motorized Zoom: 4°–60° linear electronic zoom allows smooth transitions from tight beams to wide wash coverage.
• High-Speed Strobe: Adjustable strobe from 0–25 times per second with macro effects for high-energy stage moments.
• Smooth Electronic Dimming: 0–100% electronic dimming helps create controlled fades, intensity changes, and stage transitions.
• Agile Movement: 540° horizontal pan and 270° vertical tilt provide wide stage coverage and dynamic motion.
• Flexible Control Modes: Supports DMX console control, auto mode, voice control, and master-slave operation.

Instructions

1. Installation & Rigging: Securely mount the fixture to a suitable truss system using proper clamps and safety cables, or place it on a stable floor surface. Make sure the setup can safely support the 12 kg net weight and allows enough clearance for full pan and tilt movement.

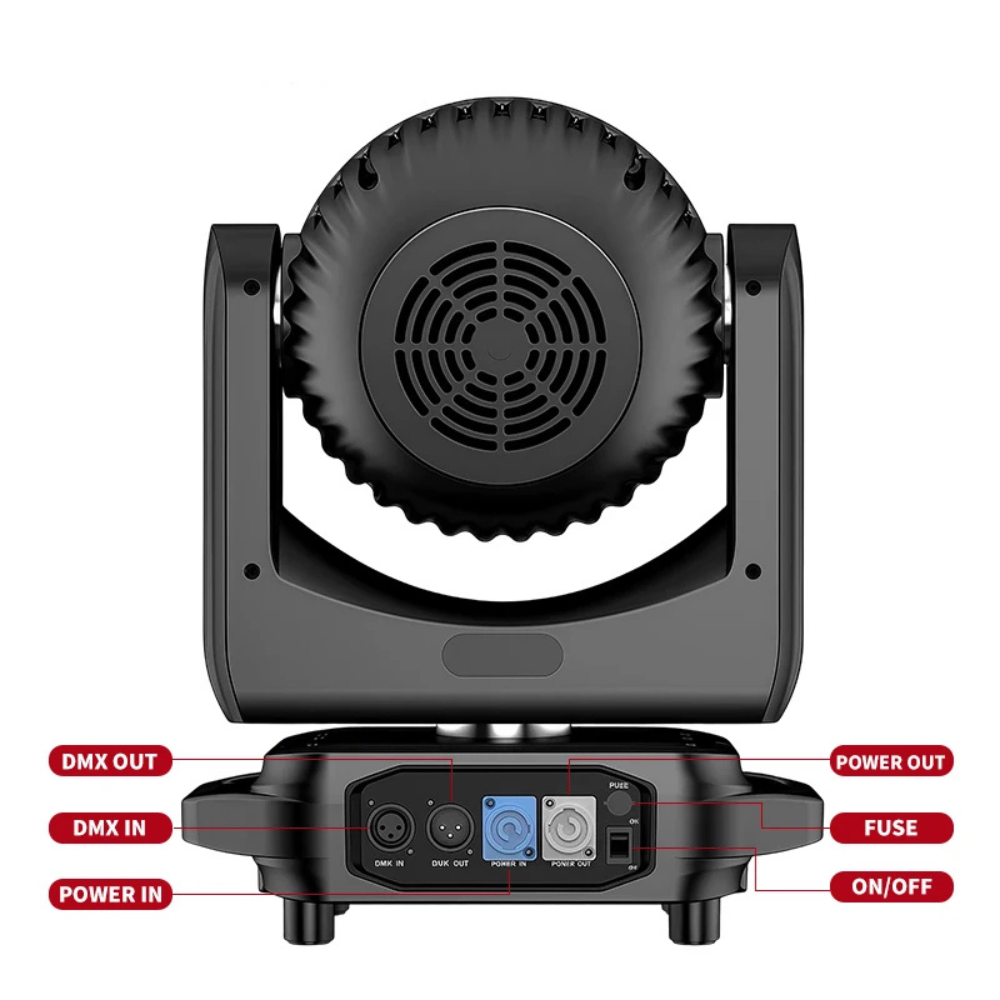

2. Power Setup: Connect the fixture to a reliable AC 100–240V, 50/60Hz power supply using the rear power input. The fixture draws 300W total power. Use the power output only within safe circuit and fixture load limits when linking additional fixtures.
3. DMX Configuration: Connect your lighting console through the DMX input/output ports. Use the color screen and navigation buttons to set the DMX starting address and select the desired channel mode.
4. Channel Selection: Use lower channel modes for simpler control, or higher modes such as 92CH, 97CH, or 99CH for deeper pixel and effects programming.
5. Standalone Operation: Without DMX, select auto mode, voice control / sound-activated mode, or master-slave synchronization for plug-and-play operation.
6. Maintenance: This fixture is rated IP20 and designed for indoor use. Clean the front optical lenses with a soft non-abrasive cloth and keep rear cooling vents free from dust and debris.

Technical Specifications
